DC battery moduleEG4 WallMount Indoor 280Ah
EG4 Electronics4.4 · 18 reviews across its products

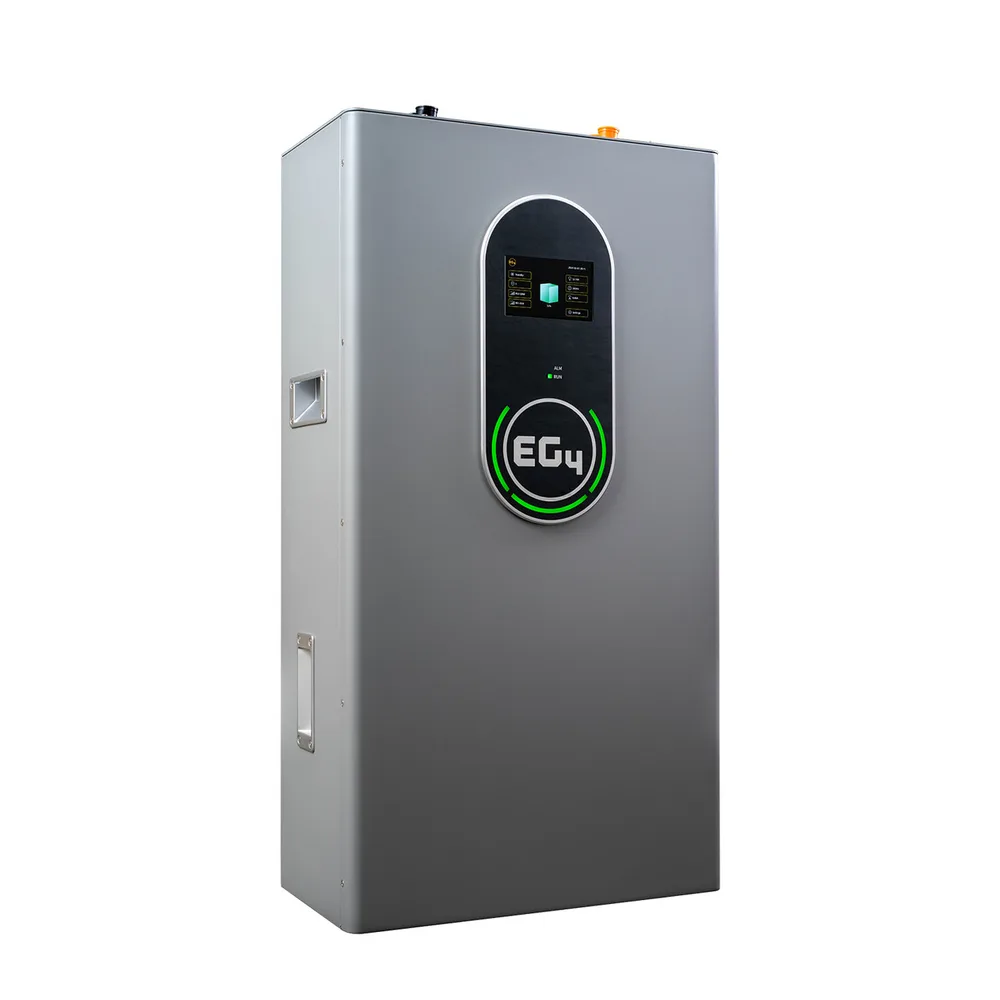

EG4 WallMount Indoor 280Ah

Key specs

BrandEG4 Electronics
ModelWM-48-280-IN-LL-00
MarketUS
Nominal voltage51.2 V
Capacity280 Ah
Nominal energy14.3 kWh
ChemistryLithium iron phosphate (LFP)
Continuous discharge140 A
Cycle life8,000 cycles
Weight130 kg / 287 lb converted
Warranty term10 years
Self heatingYes

8 specs not documented yet

  • Usable energy
  • Continuous charge power
  • Round-trip efficiency
  • Terminals
  • Maximum parallel units
  • Maximum nominal system energy
  • Software / offline behavior
  • Operating noise
Help fill in ›
EG4 WallMount Indoor 280Ahread Nov 16, 2026

All specifications

Show all 40 specifications

Identity

BrandEG4 Electronics · Website
ModelWM-48-280-IN-LL-00
MarketUS
Manufacturer SKUWM-48-280-IN-LL-00
About brandSolar batteries, inverters and system equipment.
SKU detail
locator: WallMount Indoor 280Ah specifications, PDF page 1
conditions: The manufacturer's document "WallMount Indoor 280Ah specifications" prints WM-48-280-IN-LL-00 on PDF page 1.
Sources: [1]
FieldValueConditionsSource
ChemistryLithium iron phosphate (LFP)Manufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
TerminalsNot in the documents we reviewed for this model.
MoreNot stated in the reviewed model documentation.
No source on record
Weight130 kg / 287 lb convertedManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Cycle life8,000 cycles
More than 8000 cycles at 0.5C and 80% DoD. End-of-life retention is not stated here.
Where: Specification table
[1]
Capacity280 AhManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Self heatingyesManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Surge output200 A for 30 min
Printed as "200A (Max. continuous for 30 min)" in WallMount Indoor 280Ah quick start, EG4 WallMount Indoor 280Ah quick start guide, specifications, DISCHARGING CURRENT row. Revised on 1 October 2026: The WallMount Indoor 280Ah quick start guide prints a discharge allowance of 200 A for 30 minutes and ranks above the specification sheet; 1800 seconds is the same 30 minutes.
Where: EG4 WallMount Indoor 280Ah quick start guide, specifications, DISCHARGING CURRENT row
Sources
Converted: 30 min x 60 = 1800 s
[2] [1]
DimensionsW 460 × H 865 × D 264 mm / W 18.1 × H 34.1 × D 10.4 inManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
CommunicationsCAN; RS485Manufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Emergency stopSupported with optional ESS disconnectManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Heater power224 W
Published heater draw, separate from continuous battery output. Heater control and external supply conditions apply.
Where: Heater specifications
[1]
Heating stop5 °C / 41 °F converted
Printed as "Internal Battery Temperature ≤32°F (0°C) heat on, ≥41°F (5°C) heat off" in the EG4 Indoor 280Ah Battery Quick Start Guide, battery heater specifications, captured on September 26, 2026.
Where: Battery heater specifications
[2]
Enclosure ratingIP20Manufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Integrated busbar600 A; four positive and four negative connectionsManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Nominal voltage51.2 VManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Usable energyNot in the documents we reviewed for this model.
MoreNot stated in the reviewed model documentation.
No source on record
Max parallel unitsNot in the documents we reviewed for this model.
MoreNot stated in the reviewed model documentation.
No source on record
Nominal energy14.3 kWhManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Continuous charge140 AManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Operating noiseNot in the documents we reviewed for this model.
MoreNot stated in the reviewed model documentation.
No source on record
Charge temperature0 to 50 °C / 32 to 122 °F convertedManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Continuous output10.24 kW Check note
From the California Energy Commission list, not a maker document. This figure is printed on the California Energy Commission Solar Equipment List (data unchanged since October 1, 2026) as submitted for the listing. No maker document in the catalog prints it for this model yet.
Listed as "10.24" under "Maximum Continuous Discharge Rate (kW)" on the California Energy Commission list (data unchanged since October 1, 2026; downloaded October 11, 2026). Moved on October 18, 2026 from the duplicate record eg4-electronics-wm-48-280-1-in-ll-00 (the same product).
Where: Row 131, Maximum Continuous Discharge Rate (kW)
[3]
Heating activation0 °C / 32 °F converted
Printed as "Internal Battery Temperature ≤32°F (0°C) heat on, ≥41°F (5°C) heat off" in the EG4 Indoor 280Ah Battery Quick Start Guide, battery heater specifications, captured on September 26, 2026.
Where: Battery heater specifications
[2]
Storage temperature0 to 45 °C / 32 to 113 °F converted
Printed as "STORAGE RANGE 32°F to ≈113°F (0°C to ≈45°C)" in the EG4 Indoor 280Ah Battery Quick Start Guide, environmental parameters, captured on September 26, 2026.
Where: Environmental parameters
[2]
Continuous discharge140 AManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Charge cutoff voltage60 V
Printed as "MODULE VOLTAGE PROTECTION 60.0V 1 sec 55.2V" in the EG4 Indoor 280Ah Battery Quick Start Guide, BMS parameters (charge), captured on September 26, 2026. Module over-voltage protection trip, 1 s delay, with its recovery voltage.
Where: BMS parameters, charge
[2]
Discharge temperature-20 to 55 °C / -4 to 131 °F convertedManufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Round trip efficiencyNot in the documents we reviewed for this model.
MoreNot stated in the reviewed model documentation.
No source on record
Software offline behaviorNot in the documents we reviewed for this model.
MoreNot stated in the reviewed model documentation.
No source on record
Continuous charge powerNot in the documents we reviewed for this model.
MoreNot printed for this model in the documents on file. Revised on 1 October 2026: The manual and spec sheet print 140A maximum continuous charging current and 51.2V nominal voltage but no continuous charge power figure.
[2]
Discharge cutoff voltage44.8 V
Printed as "MODULE VOLTAGE PROTECTION 44.8V 1 sec 48V" in the EG4 Indoor 280Ah Battery Quick Start Guide, BMS parameters (discharge), captured on September 26, 2026. Module under-voltage protection trip, with its recovery voltage.
Where: BMS parameters, discharge
[2]
Integrated fire extinguisherTwo onboard fire arrestors (manufacturer description)Manufacturer specification; operating and installation conditions apply.
Where: Specification table
[1]
Recommended charge voltage56.2 V
Printed as "CHARGING VOLTAGE (BULK/ABSORB) 56.0V (+/-0.8V) 56.2V (+/-0.2V)" in the EG4 Indoor 280Ah Battery Quick Start Guide, module operating parameters (BMS and Recommended Setting columns), captured on September 26, 2026. 56.2 V is the Recommended Setting column.
Where: Module operating parameters
[2]
Estimated lifetime energy mwh82.6 MWh
Manufacturer-published lifetime calculation, not measured output or a warranty commitment. Factors are shown as printed; cycle-test conditions are separate.
Where: Specification table
Sources
51.2 V × 280 Ah × 80% DoD × 8,000 cycles × 90% ÷ 1,000,000 = 82.6 MWh
[1]
Max system nominal energyNot in the documents we reviewed for this model.
MoreNot stated in the reviewed model documentation.
No source on record

Owner reviews

4.0 (1 owner review)
@ehnus4 points2 reviews2 helpful votesJoined Oct 2026
4/5Verified review

It is a Battery

Software
1/5
Reliability
5/5
Build quality
5/5
Ease of install
4/5

The battery works like a champ. It likes to have comms issues between the 6000xp and its self. Causing the 6000xp to freak out. Once in OPEN loop flawless... Would but again if they were cheaper. There is no active monitor for these batteries and that is terrible EG4 should do better.
