Blue Ion
DC battery module

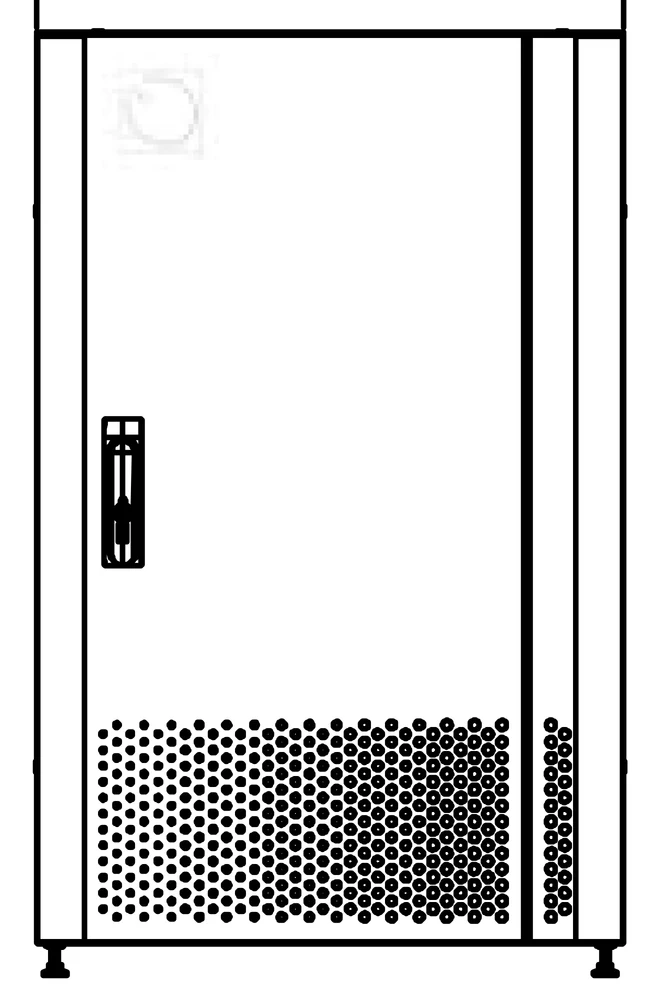

Blue Ion HI battery system, 12 kWh solution

Key specs

Nominal voltage51.2 V
Weight260 kg / 573 lb converted
Continuous discharge160 A

2 specs not documented yet: nominal energy, dimensionsHelp fill in ›

All specifications

Identity

BrandBlue Ion · Website
ModelBlue Ion HI (12 kWh solution)
MarketUnknown
Manufacturer SKUUnknown
About brandBlue Ion is the lithium iron phosphate battery line of Blue Planet Energy of Honolulu, Hawaii. Blue Planet Energy's support page lists Blue Ion LX and Blue Ion HI under "Legacy support" and states that these systems "remain supported".
SKU detail
locator: Product documents
conditions: No part number or SKU is printed on the Blue Ion HI spec sheet or the support page.
Sources: No source on record
FieldValueConditionsSource
ChemistryLiFePO4Printed as Lithium Ferrous Phosphate.
Where: Specifications, Performance, CHEMISTRY
[1]
Weight260 kg / 573 lb converted
Printed as 573 lb, 260 kg, for the 12 kWh solution; the empty enclosure is printed as 216 lb, 98 kg.
Where: Specifications, Mechanical, WEIGHT, 12 kWh Solution
[1]
Battery format
Stackable
Site classificationBased onOfficial document
Details

Charged Reviews classified this product from the documents it is based on. It is our own grouping, not a manufacturer claim.

Printed as "Example shows 3 enclosures in a stacked and side-by-side configuration" and "ACCESSORIES1 (Optional) Stacking Kit, Caster Kit". Classified as Stackable from the maker's own words for this model.

Official document: Blue Ion HI spec sheet (Blue Planet Energy, 1.1-031522)

Location: Blue Ion HI spec sheet (Blue Planet Energy, 1.1-031522), functional design, page 1 and specification table, page 2

CommunicationsModbus TCP/IPAs printed.
Where: Specifications, Electrical, COMMUNICATIONS PROTOCOL
[1]
Enclosure ratingNEMA 1Printed as Indoor (NEMA 1).
Where: Specifications, Environmental, ENCLOSURE TYPE
[1]
Peak discharge220 A
Printed as 220 A for 10 s, about 11.25 kW; 185 A for 30 min and 200 A for 5 min are also printed.
Where: Specifications, Electrical, MAXIMUM DISCHARGE CURRENT
[1]
Nominal voltage51.2 V
Printed as 51.2 Vdc, 48 Vdc inverter compatible.
Where: Specifications, Electrical, NOMINAL SYSTEM VOLTAGE
[1]
Usable energy12 kWh
Printed as "8, 12 or 16 kWh configurations"; this record is the 12 kWh configuration, printed in the weight row as the "12 kWh Solution".
Where: Specifications, Electrical, USABLE CAPACITY
[1]
Certification claimsUL 9540; UL 9540A; UL 1642; UL 1973; UN 38.3; cETLus
Manufacturer claim recorded as printed; the Emissions row prints FCC Part 15 Class B and ICES-003 Class B.
Where: Compliance Information, CERTIFICATIONS
[1]
Charge temperature0 to 45 °C / 32 to 113 °F converted
Printed as 32 °F to 113 °F, 0 °C to 45 °C.
Where: Specifications, Environmental, CHARGE TEMPERATURE RANGE
[1]
Continuous output8 kW
Printed as 8 kW continuous at 45 °C for the battery management unit; the sheet does not print a separate figure per configuration.
Where: Specifications, Electrical, BMU POWER AT 45°C
[1]
Max system voltage56 VAs printed.
Where: Specifications, Electrical, MAXIMUM SYSTEM VOLTAGE
[1]
Storage temperature-20 to 45 °C / -4 to 113 °F converted
Printed as -4 °F to 113 °F, -20 °C to 45 °C.
Where: Specifications, Environmental, STORAGE TEMPERATURE RANGE
[1]
Continuous discharge160 A
Printed as 160 Adc continuous at 45 °C, 185 Adc for 30 min and 200 Adc for 5 min.
Where: Specifications, Electrical, BMU CURRENT AT 45°C
[1]
Depth of discharge100 %As printed.
Where: Specifications, Performance, DEPTH OF DISCHARGE
[1]
Discharge temperature-20 to 50 °C / -4 to 122 °F converted
Printed as -4 °F to 122 °F, -20 °C to 50 °C.
Where: Specifications, Environmental, DISCHARGE TEMPERATURE RANGE
[1]
Round trip efficiency98 %
Printed as a peak round-trip efficiency; no test conditions are printed.
Where: Specifications, Performance, PEAK ROUND-TRIP EFFICIENCY
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Basic specs
12 kWhDischarge 160 ACharge UnknownPeak current: 220 A
$ / rated kWh
Unavailable
Warranty
10 yearsSee terms
Lifetime production
Not published
Size
Unknown260 kg / 573 lb

Evidence score

13/100Missing details20% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Lifetime / capacity evidence needed; Cell model disclosure evidence needed.

48 V · Stackable · Rated capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term10 years13.33 / 20

10 years · 20% weight

10 of 15 years, the best documented for a home storage battery (printed by the maker): Blue Ion LX battery energy storage system (125 kW / 128 kWh)

Printed as a 10-year product warranty that includes the BMU. No warranty document was read.

66.7 / 100 × 20 = 13.33 points.

[1]

Research pending, 0 points: Certificates, Warranty energy disclosure, Lifetime / capacity, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.
cETLusmanufacturer claimpresent at observation[1]
Scope
equipment listing
Covered models
Blue Ion HI (12 kWh solution)
Limitations
Printed as the listing mark "cETLus" in the Certifications row of the Blue Ion HI spec sheet. Recorded exactly as printed, as a manufacturer claim. No listing file number is printed and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
FCC Part 15 Class Bmanufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
Blue Ion HI (12 kWh solution)
Limitations
Printed as "FCC Part 15 Class B" in the Emissions row of the Blue Ion HI spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
ICES-003 Class Bmanufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
Blue Ion HI (12 kWh solution)
Limitations
Printed as "ICES-003 Class B" in the Emissions row of the Blue Ion HI spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
UL 1642manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
Blue Ion HI (12 kWh solution)
Limitations
Printed as "UL 1642" in the Certifications row of the Blue Ion HI spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
UL 1973manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
Blue Ion HI (12 kWh solution)
Limitations
Printed as "UL 1973" in the Certifications row of the Blue Ion HI spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
UL 9540manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
Blue Ion HI (12 kWh solution)
Limitations
Printed as "UL 9540" in the Certifications row of the Blue Ion HI spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Edition as printed: Not printed
Source
[1]
UL 9540Amanufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
Blue Ion HI (12 kWh solution)
Limitations
Printed as "UL 9540A" in the Certifications row of the Blue Ion HI spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Edition as printed: Not printed
Source
[1]
UN 38.3manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
Blue Ion HI (12 kWh solution)
Limitations
Printed as "UN 38.3" in the Certifications row of the Blue Ion HI spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]

Warranty

FieldValueConditionsSource
Cycle limit8,000 cycles
Printed as the cycle limit of the 15-year performance warranty, at 100% DoD.
Where: Specifications, Performance, PERFORMANCE WARRANTY
[1]
Warranty term10 years
Printed as a 10-year product warranty that includes the BMU. No warranty document was read.
Where: Specifications, Performance, PRODUCT WARRANTY
[1]
Performance warranty15 years
Printed as 15 years or 8,000 cycles at 100% DoD.
Where: Specifications, Performance, PERFORMANCE WARRANTY
[1]
