Jackery SolarSaga 100 Prime Solar Panel
Jackery
Solar panel

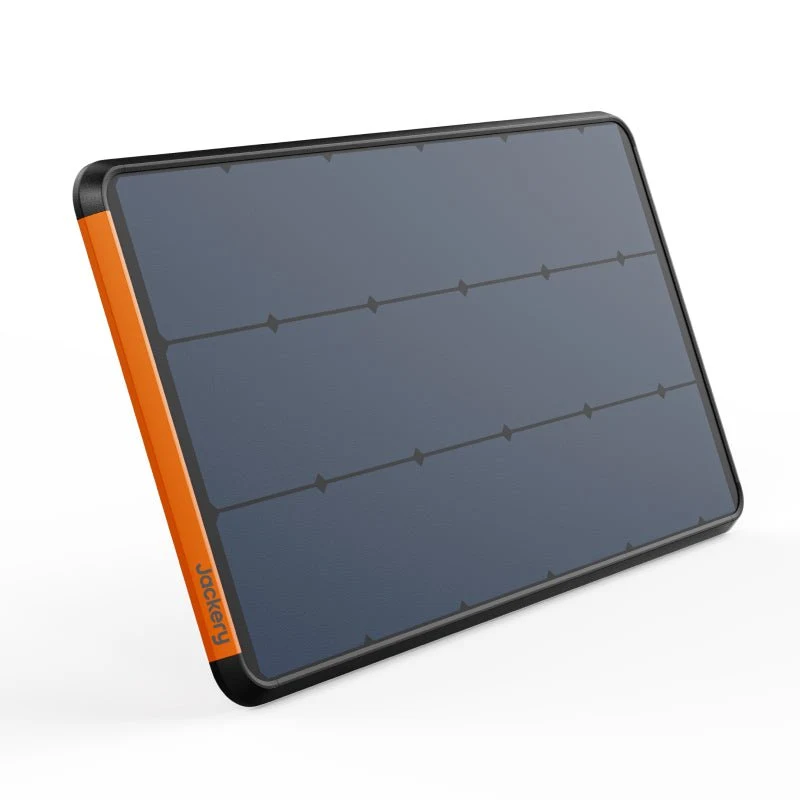

Jackery SolarSaga 100 Prime Solar Panel

Key specs

Rated power100 W
Weight6 kg / 13 lb converted
Open-circuit voltage22.7 V
Short-circuit current5.53 A
Voltage at max power18.7 V
Current at max power5.3 A

All specifications

Identity

BrandJackery · Website
ModelSolarSaga 100 Prime
MarketUnknown
Manufacturer SKU21-0002-000029
SKU detail
locator: Jackery product data (products.json, page 1), listing "[Add-on] Jackery SolarSaga 100 Prime Solar Panel" (handle add-on-jackery-solarsaga-100-prime-solar-panel), option "Default Title", "sku":"21-0002-000029"
conditions: Jackery's own product data, captured 2026-10-27, prints SKU "21-0002-000029" for option "Default Title" (variant 41906176622679) of listing "[Add-on] Jackery SolarSaga 100 Prime Solar Panel"; the same SKU is also printed on 2 other listing option(s) for the same single unit.
Sources: [1]
FieldValueConditionsSource
Current at max power5.3 A
+/-5% at STC.
Where: Guide "TECHNICAL PARAMETERS", row "Power Current (Imp)", STC column
[2]
Short-circuit current5.53 A
+/-5% at STC.
Where: Guide "TECHNICAL PARAMETERS", row "Short Circuit Current (Isc)", STC column
[2]
Voltage at max power18.7 V
+/-5% at STC.
Where: Guide "TECHNICAL PARAMETERS", row "Power Voltage (Vmp)", STC column
[2]
Open-circuit voltage22.7 V
+/-5% at STC.
Where: Guide "TECHNICAL PARAMETERS", row "Open Circuit Voltage (Voc)", STC column
[2]
Bifacialyes
A BNPI column and a bifaciality coefficient are published.
Where: Guide "TECHNICAL PARAMETERS", row "Bifaciality Coefficient (back/front)"
[2]
Weight6 kg / 13 lb convertedPublished as 6.0 kg.
Where: Guide "TECHNICAL PARAMETERS", row "Weight"
[2]
DimensionsW 552 × H 29 × L 986 mm / W 21.7 × H 1.1 × L 38.8 in converted
Read from the publisher's own document for this exact model (Guide "TECHNICAL PARAMETERS", row "Dimensions"). The publisher prints no further test condition for this row; no value was taken from another model.
Where: Guide "TECHNICAL PARAMETERS", row "Dimensions"
[2]
Rated power100 W
Published as 100W +/-5% at STC.
Where: Guide "TECHNICAL PARAMETERS", row "Peak Power (Pmax)", STC column
[2]
Enclosure ratingIP68
Read from the publisher's own document for this exact model (Guide "TECHNICAL PARAMETERS", row "Waterproof Level"). The publisher prints no further test condition for this row; no value was taken from another model.
Where: Guide "TECHNICAL PARAMETERS", row "Waterproof Level"
[2]
Max system voltage600 V
Published as 600 V DC.
Where: Guide "TECHNICAL PARAMETERS", row "Maximum System Voltage"
[2]
Operating temperature-40 to 85 °C / -40 to 185 °F converted
Read from the publisher's own document for this exact model (Guide "TECHNICAL PARAMETERS", row "Operating Temperature Range"). The publisher prints no further test condition for this row; no value was taken from another model.
Where: Guide "TECHNICAL PARAMETERS", row "Operating Temperature Range"
[2]
Temperature coefficient-0.29 %/°C
Read from the publisher's own document for this exact model (Guide "TECHNICAL PARAMETERS", row "Power Temperature Coefficient"). The publisher prints no further test condition for this row; no value was taken from another model.
Where: Guide "TECHNICAL PARAMETERS", row "Power Temperature Coefficient"
[2]
Voc temperature coefficient-0.268 %/°C
Read from the publisher's own document for this exact model (Guide "TECHNICAL PARAMETERS", row "Voltage Temperature Coefficient"). The publisher prints no further test condition for this row; no value was taken from another model.
Where: Guide "TECHNICAL PARAMETERS", row "Voltage Temperature Coefficient"
[2]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Rated output
100 WEfficiency Not statedW / sq ft 17.1* (Calculated: 100 W ÷ (986 mm × 552 mm = 5.86 sq ft) = 17.1 W/sq ft)
Voltage (STC)
18.7 VVmp · maximum powerVoc · open circuit 22.7 VMax system 600 V
Current (STC)
5.3 AImp · maximum powerIsc · short circuit 5.53 A
Dimensions
W: 552 × H: 29 × L: 986 mm / W: 21.7 × H: 1.1 × L: 38.8 inWeight 6 kg / 13 lb
Warranty
5 yearsPower warranty Not stated

Evidence score

17/10042% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing for this product: Module efficiency needed; Power warranty needed; First-year degradation needed.

Each input is scored against the best documented value for a solar panel, and weight per watt against the best in the panel’s own format. A documented value always earns points; an undisclosed one earns 0 and is listed as missing. Certificates and unsupported claims do not add points.

Power temperature coefficient-0.29 %/°C12.1 / 16.0

0.29 against 0.22 %/°C, the lowest documented for a solar panel (printed by the maker): Jackery SolarSaga 100 Air

Read from the publisher's own document for this exact model (Guide "TECHNICAL PARAMETERS", row "Power Temperature Coefficient"). The publisher prints no further test condition for this row; no value was taken from another model.

[2]

Weight / watt6 kg / 100 W1.0 / 5.0

0.06 against 0.01227 kg per W, the lowest documented for a solar panel (calculated from maker figures): Go Power! 110-Watt Solar Flex™ Module

6 kg / 100 W. Lighter modules per watt carry less roof load. Panel format is not documented, so this is compared with every panel.

[2]

Not documented, 0 points: Module efficiency, Power warranty, First-year degradation.

Each input is compared with the best documented value among published solar panels, weight per watt within the same panel format · Method version 0.4

How it works

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.
FCC Part 15manufacturer claimpresent at observation[2]
Scope
system
Covered models
JS-100E
Limitations
Manufacturer statement in the SolarSaga 100 Prime (JS-100E) user guide, captured on September 25, 2026: "pursuant to part 15 of the FCC Rules". It is a radio-frequency emissions compliance statement, not a safety listing. No FCC ID or grantee record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[2]

Warranty

FieldValueConditionsSource
RemedyReplacement upon verification of defects, when returned with proper proof of purchase
Printed as "this product will be replaced when returned with proper proof of purchase" in the Jackery SolarSaga 100 Prime user guide (Model JS-100E), Warranty, captured on September 26, 2026.
Where: Warranty
[2]
TransferCovers the original purchaser
Printed as "The product is covered by a limited warranty from Jackery for the original purchaser" in the Jackery SolarSaga 100 Prime user guide (Model JS-100E), Warranty, captured on September 26, 2026.
Where: Warranty
[2]
ConditionsExcludes normal wear and tear, alteration, misuse, neglect, accident, service by anyone other than an authorized service center, and acts of God
Printed as "damages from normal wear and tear, alteration, misuse, neglect, accident, service by anyone other than authorized service center, or act of God are not included" in the Jackery SolarSaga 100 Prime user guide (Model JS-100E), Warranty, captured on September 26, 2026.
Where: Warranty
[2]
Warranty term5 years
Published on the US customer-service page of the product guide; scope and exclusions are not itemised there.
Where: Guide "CUSTOMER SERVICE" page, "5 Years warranty"
[2]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.

Documents

  • Manuals

  • Jackery SolarSaga 100 Prime (JS-100E) user guideOfficial · Jackery · Official instruction manual · PDF
    Certificate & compliance claims (1)
    FCC Part 15Manufacturer claim · systemClaimedListed when checked

    Manufacturer statement in the SolarSaga 100 Prime (JS-100E) user guide, captured on September 25, 2026: "pursuant to part 15 of the FCC Rules". It is a radio-frequency emissions compliance statement, not a safety listing. No FCC ID or grantee record was checked.

    Manufacturer document

    Official instruction manual: Jackery SolarSaga 100 Prime (JS-100E) user guide
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Location: TECHNICAL SPECIFICATIONS / SPECIFICATIONS table

    Retrieved Sep 19, 2026

    Manufacturer user manual: establishes the rated electrical, mechanical and environmental figures and the standard warranty term for the exact model it names. It is not a certified test report and does not cover other regional variants.

    Archived copies

    Archived copy of a document published by Jackery. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

    Archived backupRevision not recorded · 1.64 MB

    Archived copy, unaltered, kept as a record of what Jackery published. Original address: https://r.jackery.net/productGuide/Jackery%20SolarSaga%20100%20Prime%20User%20Guide.pdf. Copyright and takedown

    Source first found
    This copy captured
    Archived
    File detailsOriginal source
    Embedded creation date
    None
    Embedded modification date
    None
    Pages
    30

    Embedded dates are file metadata, not independent proof of publication.

    SHA-256: db3e07304f0103f9611c45b64d648b72ec061b26d73ed431dd54a67e0d50d033

    Open
  • Other documents

  • Jackery SolarSaga 100 Prime Solar Panel product page (September 25, 2026 capture)Official · Jackery · Official product page · Web page
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Captured by scripts/prepare-brand-sweep-sep21.mjs on 2026-09-25.

    Location: Product image carousel, first image (og:image)

    Retrieved Sep 24, 2026

    Jackery's own US product page for the SolarSaga 100 Prime, captured byte for byte on September 25, 2026. It is cited here only for the product photograph it publishes as its first carousel and Open Graph image. It is a marketing page, not a datasheet.

    Open

Archive and older revisions

Archive and older revisions1

Earlier revisions, archived captures and copies published by someone other than the manufacturer. Every one stays reachable.

  • Jackery SolarSaga 100 Prime Solar Panel product pageOfficial · Jackery · Official product page · Web page
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Retrieved Sep 19, 2026

    Establishes the live listing, its variant SKUs, its gallery images and which user manual Jackery links for this model; the page itself renders no specification table.

    Open

Archived documents

Jackery SolarSaga 100 Prime (JS-100E) user guide

Archived copy of a document published by Jackery. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

Archived backupRevision not recorded · 1.64 MB

Archived copy, unaltered, kept as a record of what Jackery published. Original address: https://r.jackery.net/productGuide/Jackery%20SolarSaga%20100%20Prime%20User%20Guide.pdf. Copyright and takedown

Source first found
This copy captured
Archived
File detailsOriginal source
Embedded creation date
None
Embedded modification date
None
Pages
30

Embedded dates are file metadata, not independent proof of publication.

SHA-256: db3e07304f0103f9611c45b64d648b72ec061b26d73ed431dd54a67e0d50d033

Submit a document

Parts and accessories

No sourced accessories or replacement parts listed yet.

Model history

Model identity

Model
SolarSaga 100 Prime

Manufacturer SKU 21-0002-000029

No historical observations recorded yet.

Other recorded fields

FieldValueConditionsSource
Evidence breakdown
method version: panels-0.4-personal
documented pct: 42
basis: Unknown
missing:
Module efficiency needed
Power warranty needed
First-year degradation needed
criteria:
key: efficiency
label: Module efficiency
value: Unknown
unit: Unknown
shown: Not documented
shown detail: Unknown
state: missing
points: 0
ceiling: 26
weight: 26
share: Unknown
covered: no
missing: yes
folded: yes
reason: undocumented
reason text: Not documented. Undisclosed data scores 0.
note: Not documented.
display note: Unknown
Sources: No source on record
key: warranty
label: Product warranty
value: 5
unit: Unknown
shown: 5 years
shown detail: Unknown
state: documented
points: 3.5
ceiling: 21
weight: 21
share: 16.7
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note:
display note: Unknown
Sources: [2]
key: performanceWarranty
label: Power warranty
value: Unknown
unit: Unknown
shown: Not documented
shown detail: Unknown
state: missing
points: 0
ceiling: 16
weight: 16
share: Unknown
covered: no
missing: yes
folded: yes
reason: undocumented
reason text: Not documented. Undisclosed data scores 0.
note: Not documented.
display note: Unknown
Sources: No source on record
key: powerTemperature
label: Power temperature coefficient
value: 0.29
unit: Unknown
shown: -0.29 %/°C
shown detail: Unknown
state: documented
points: 12.1
ceiling: 16
weight: 16
share: 75.9
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note:
display note: Unknown
Sources: [2]
key: degradation
label: First-year degradation
value: Unknown
unit: Unknown
shown: Not documented
shown detail: Unknown
state: missing
points: 0
ceiling: 16
weight: 16
share: Unknown
covered: no
missing: yes
folded: yes
reason: undocumented
reason text: Not documented. Undisclosed data scores 0.
note: Not documented.
display note: Unknown
Sources: No source on record
key: weightPerWatt
label: Weight / watt
value: 0.06
unit: Unknown
shown: 6 kg / 100 W
shown detail: Unknown
state: documented
points: 1
ceiling: 5
weight: 5
share: 20.5
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note: 6 kg / 100 W. Lighter modules per watt carry less roof load. Panel format is not documented, so this is compared with every panel.
display note: Unknown
Sources: [2]

Community discussions

No discussions linked yet. Search DIY Solar Forum

Sources

  1. Jackery store product data (products.json page 1, 2026-10-27 capture) (Jackery · manufacturer · observed Oct 27, 2026)
  2. Jackery SolarSaga 100 Prime (JS-100E) user guide (Jackery · manufacturer · observed Sep 19, 2026)
