sonnen
Integrated AC storage

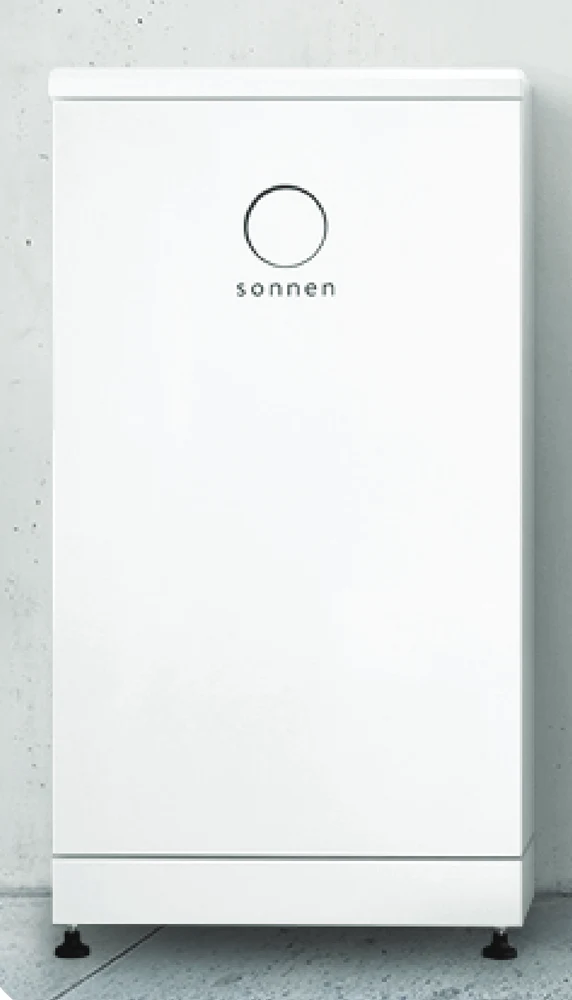

sonnen sonnenEvo OUTSCORE10-1 (10 kWh)

Key specs

Weight160 kg / 353 lb converted
Nominal voltage102 V
Usable energy10 kWh

1 spec not documented yet: nominal energyHelp fill in ›

All specifications

Identity

Brandsonnen · Website
ModelOUTSCORE10-1
MarketUnknown
Manufacturer SKUOUTSCORE10-1
About brandsonnen makes AC-coupled home battery systems with integrated inverters. Its US tech spec sheets are published by sonnen Inc. of Stone Mountain, Georgia.
SKU detail
locator: Model number row
conditions: Printed as the model number.
Sources: [1]
FieldValueConditionsSource
ChemistryLiFePO4Printed as lithium iron phosphate.
Where: Battery specification, Cell chemistry
[1]
Weight160 kg / 353 lb convertedPrinted as approximately 352 lbs, 160 kg, per unit.
Where: Weight per unit (approximate)
[1]
DimensionsW 711.2 × H 1,369.1 × D 401.3 mm / W 28 × H 53.9 × D 15.8 in converted
The table prints W / H / D as 28 / 53.9 / 15.8 in; the drawing prints 28 in, 53.9 in and 15.8 in with the millimeter figures recorded here. The drawing also prints a 5.4 to 7.6 in dimension.
Where: Dimensions row and dimension drawing
[1]
Battery format
Stackable
Site classificationBased onOfficial datasheet
Details

Charged Reviews classified this product from the documents it is based on. It is our own grouping, not a manufacturer claim.

Printed as "The sonnenEvo is a stackable outdoor solution that offers up to 30 kWh of battery capacity." and "Number of stacked units 1 2 3". Classified as Stackable from the maker's own words for this model.

Official datasheet: Technical Specifications, sonnenEvo (sonnen Inc., P/N 5500992 Rev 000)

Location: Technical Specifications, sonnenEvo (sonnen Inc., P/N 5500992 Rev 000), introduction, page 1 and Stacked specifications table, page 1

CommunicationsEthernetPrinted as Ethernet.
Where: General specifications, Communication ports
[1]
Efficiency94.4 %Printed as inverter efficiency, 94.4% peak.
Where: Stacked specifications, Inverter efficiency
[1]
Grid connectionAC coupledAs printed.
Where: Grid integration
[1]
Enclosure ratingIP56As printed.
Where: Compliance information, Enclosure rating
[1]
Apparent power4,800 VA
Printed as 4.8 kVA for one unit, grid-tied output at 104 °F.
Where: Stacked specifications, Nominal power rating, one unit
Sources
Converted: 4.8 kVA x 1000 VA/kVA
[1]
Nominal voltage102 VPrinted as 102 VDC.
Where: Battery specification, Nominal DC voltage
[1]
Usable energy10 kWh
Printed as 10 kWh for one unit; two and three stacked units print 20 and 30 kWh.
Where: Stacked specifications, Usable capacity, one unit
[1]
Grid passthrough35 APrinted as 35 A for one unit.
Where: Stacked specifications, On-grid pass through, one unit
[1]
Max parallel units3 countPrinted as one, two or three stacked units.
Where: Stacked specifications, Number of stacked units
[1] [2]
Operating voltage96 to 112 VPrinted as 96 to 112 VDC.
Where: Battery specification, DC battery input voltage
[1]
Certification claimsUL1741; UL1973; UL9540; UN38.3; UL9540A
Manufacturer claim recorded as printed; the other compliance rows are separate certification records.
Where: Compliance information, Certifications
[1]
Continuous AC output25 A
Printed for off-grid operation as 0 A to 25 A RMS for one unit.
Where: Off-grid specifications, No disconnect / continuous operation (RMS), one unit
[1]
Operating temperature0 to 45 °C / 32 to 113 °F converted
Printed as 32 °F to 113 °F, 0 °C to 45 °C; maximum power is printed for 5 °C to 35 °C.
Where: General, Ambient temperature
[1]
Round trip efficiency85.4 %
Printed as 85.4% peak, calculated with the SGIP single cycle round trip efficiency formula per the footnote.
Where: Stacked specifications, Max Round-trip efficiency
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Basic specs
10 kWhDischarge UnknownCharge Unknown
$ / rated kWh
Unavailable
Warranty
10 yearsSee terms
Lifetime production
Not published
Size
390.75 L* (Calculated enclosure volume: W × H × D in mm ÷ 1,000,000)W: 711.2 × H: 1,369.1 × D: 401.3 mm / W: 28 × H: 53.9 × D: 15.8 in160 kg / 353 lb0.03 kWh/L* (Rated or usable capacity shown on this card ÷ enclosure volume)

Evidence score

13/100Missing details20% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Lifetime / capacity evidence needed; Cell model disclosure evidence needed.

AC-coupled · Stackable · Usable capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term10 years13.33 / 20

10 years · 20% weight

10 of 15 years, the best documented for a home storage battery (printed by the maker): Blue Ion LX battery energy storage system (125 kW / 128 kWh)

Printed as a 10-year or 10,000-cycle system warranty that includes the inverter, battery modules, cabinet and components; the sheet's footnote says to observe sonnen's applicable warranty conditions, which were not read.

66.7 / 100 × 20 = 13.33 points.

[1]

Lifetime / capacityResearch pending0 / 20

No qualifying figure · 20% weight

Not published. No lifetime-production bonus.

Not documented. Undisclosed data scores 0.

[1]

Research pending, 0 points: Certificates, Warranty energy disclosure, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.
FCC Part 15 Class Bmanufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "FCC Part 15 Class B" in the Emissions row of the sonnenEvo tech spec sheet, for the inverter. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
IEC 61000-4-2/3/4/5/6/8manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "IEC 61000-4-2/3/4/5/6/8" in the Immunity row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
IEEE 1547manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "IEEE 1547" in the Grid Code row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
IEEE 693manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "IEEE 693" in the Seismic rating row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
IEEE C62.41 Class Bmanufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "IEEE C62.41 Class B" in the Transient protection row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
Prepa 2013manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "Prepa 2013" in the Grid Code row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
UL1741manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "UL1741" in the Certifications row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
UL1741SAmanufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "UL1741SA" in the Grid Code row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
UL1741SBmanufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "UL1741SB" in the Grid Code row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
UL1973manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "UL1973" in the Certifications row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
UL9540manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "UL9540" in the Certifications row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Edition as printed: Not printed
Source
[1]
UL9540Amanufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "UL9540A" in the Certifications row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Edition as printed: Not printed
Source
[1]
UN38.3manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
OUTSCORE10-1
Limitations
Printed as "UN38.3" in the Certifications row of the sonnenEvo tech spec sheet. Recorded exactly as printed, as a manufacturer claim. The document names no certification body, certificate number or scope for it, no certificate was read, and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]

Warranty

FieldValueConditionsSource
Cycle limit10,000 cycles
Printed as the cycle alternative to the 10-year term of the system warranty; the sheet does not say which limit applies first.
Where: Compliance information, Warranty
[1]
Warranty term10 years
Printed as a 10-year or 10,000-cycle system warranty that includes the inverter, battery modules, cabinet and components; the sheet's footnote says to observe sonnen's applicable warranty conditions, which were not read.
Where: Compliance information, Warranty
[1]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.

Documents

  • Datasheets

  • Technical Specifications, sonnenEvo (sonnen Inc., P/N 5500992 Rev 000)Official · sonnen Inc. · Official datasheet · PDF
    Source details
    Revision
    P/N 5500992 Rev 000
    Revision date
    Not stated

    Captured by scripts/prepare-brand-sweep-sep21.mjs on 2026-09-28.

    Location: Pages 1 and 2

    Retrieved Sep 28, 2026

    sonnen Inc.'s sonnenEvo tech spec sheet, linked from the sonnenEvo page and served from the site's own file host. No installation manual is linked from the page. Manufacturer claims, not independently verified.

    Archived copies

    Archived copy of a document published by sonnen Inc.. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

    Archived backupP/N 5500992 Rev 000 · 1.11 MB

    Archived copy, unaltered, kept as a record of what sonnen Inc. published. Original address: https://cdn.prod.website-files.com/6880e94a10d268be27eed8af/689dd3055578e4e34293777c___111824AA-D-En-sonnenEvo-Tech%20Specs-Rev000-Final.pdf. Copyright and takedown

    Source first found
    This copy captured
    Archived
    File detailsOriginal source
    Embedded creation date
    Embedded modification date
    Pages
    2

    Embedded dates are file metadata, not independent proof of publication.

    SHA-256: 28f5c639c3ca5760d3df60f3901470559d405fb5ebf21e04805cbf3284e7d29e

    Open
  • Other documents

  • sonnenEvo product page, sonnenusa.com (September 28, 2026 capture)Official · sonnen Inc. · Official product page · Web page
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Captured by scripts/prepare-brand-sweep-sep21.mjs on 2026-09-28.

    Location: Page text

    Retrieved Sep 28, 2026

    sonnen's US product page for the sonnenEvo, captured September 28, 2026. Cited for its spec sheet link and the statements quoted. Company claims, not independently verified.

    Open

Archive and older revisions

Archive and older revisions0

Earlier revisions, archived captures and copies published by someone other than the manufacturer. Every one stays reachable.

Archived documents

Technical Specifications, sonnenEvo (sonnen Inc., P/N 5500992 Rev 000)

Archived copy of a document published by sonnen Inc.. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

Archived backupP/N 5500992 Rev 000 · 1.11 MB

Archived copy, unaltered, kept as a record of what sonnen Inc. published. Original address: https://cdn.prod.website-files.com/6880e94a10d268be27eed8af/689dd3055578e4e34293777c___111824AA-D-En-sonnenEvo-Tech%20Specs-Rev000-Final.pdf. Copyright and takedown

Source first found
This copy captured
Archived
File detailsOriginal source
Embedded creation date
Embedded modification date
Pages
2

Embedded dates are file metadata, not independent proof of publication.

SHA-256: 28f5c639c3ca5760d3df60f3901470559d405fb5ebf21e04805cbf3284e7d29e

Submit a document

Parts and accessories

No sourced accessories or replacement parts listed yet.

Model history

Model identity

Model
OUTSCORE10-1
Published model / SKU
sonnenEvo

Printed as the product name "sonnenEvo" on the tech spec sheet and product page.

[1] [2]

Manufacturer SKU OUTSCORE10-1

No historical observations recorded yet.

Other recorded fields

FieldValueConditionsSource
Evidence breakdown
method version: 0.21-personal
documented pct: 20
basis: usable
missing:
Certificates evidence needed
Warranty energy disclosure evidence needed
Lifetime / capacity evidence needed
Cell model disclosure evidence needed
criteria:
key: certificateEvidence
label: Certificates
value: 0
unit: evidence points
shown: UL1741 · UL1973 +11
shown detail: Research pending
state: pending
points: 0
ceiling: 45
weight: 45
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: No qualifying applicable evidence recorded. This is not proof that certification is absent. Applies: CEC; UL 9540; UL 1973.
display note: Unknown
Sources: No source on record
key: years
label: Warranty term
value: 10
unit: years
shown: 10 years
shown detail: Unknown
state: documented
points: 13.33
ceiling: 20
weight: 20
share: 66.7
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note:
display note: Unknown
Sources: [1]
key: throughputEvidence
label: Warranty energy disclosure
value: 0
unit: evidence points
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 10
weight: 10
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: No qualifying quantified warranty energy recorded. This is an evidence gap, not a performance judgment.
display note: Unknown
Sources: No source on record
key: lifetime
label: Lifetime / capacity
value: Unknown
unit: MWh/kWh
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 20
weight: 20
share: Unknown
covered: no
missing: yes
folded: no
reason: undocumented
reason text: Not documented. Undisclosed data scores 0.
note: Not published. No lifetime-production bonus.
display note: Unknown
Sources: [1]
key: cellDisclosure
label: Cell model disclosure
value: 0
unit: disclosure points
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 5
weight: 5
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: A sourced cell manufacturer and model are needed. Grade A, chemistry and cell capacity alone do not identify a cell model.
display note: Unknown
Sources: No source on record

Community discussions

No discussions linked yet. Search DIY Solar Forum

Sources

  1. Technical Specifications, sonnenEvo (sonnen Inc., P/N 5500992 Rev 000) (sonnen Inc. · manufacturer · P/N 5500992 Rev 000 · observed Sep 28, 2026)
  2. sonnenEvo product page, sonnenusa.com (September 28, 2026 capture) (sonnen Inc. · manufacturer · observed Sep 28, 2026)

Sign in to report an error on this page

Similar products

All with a price

* Missing details
