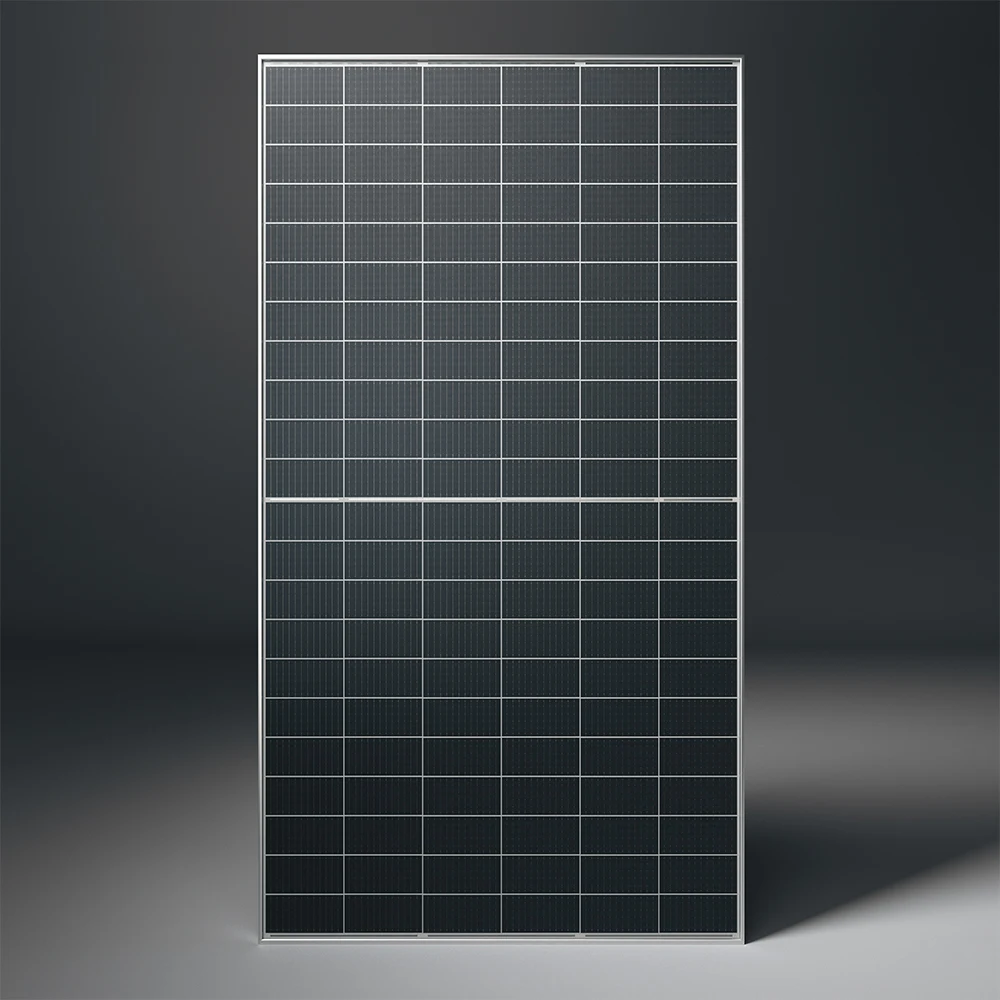

Axitec AC-630TGB/132WS
Axitec
Solar panel

Axitec AC-630TGB/132WS

Key specs

Rated power630 W
Weight32.5 kg / 71.7 lb converted
Open-circuit voltage49.87 V
Short-circuit current16.05 A
Voltage at max power41.45 V
Current at max power15.2 A

All specifications

Identity

BrandAxitec · Website
ModelAC-630TGB/132WS
MarketUnknown
Manufacturer SKUUnknown
SKU detail
conditions: Ordering SKU not established.
Sources: No source on record
FieldValueConditionsSource
Frame30 mm silver aluminium frame
Printed as "Frame 30 mm silver aluminium frame" in Axitec's DB_132zlg_biperfect_GQ WS MiA datasheet (625-640 TGB/132(T)WS, English edition), captured on September 28, 2026.
Where: Datasheet, Mechanical data, Frame row
[1]
Current at max power15.2 A
Read from the AC-630TGB/132WS column (2 of 4) of the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), Electrical data at standard test conditions (irradiance 1000 W/m², AM 1.5, cell temperature 25°C). The type row prints "Type AC-625TGB/132TWS AC-630TGB/132WS AC-635TGB/132WS AC-640TGB/132WS" and the "Nominal current Impp" row prints "Nominal current Impp 15.15 A 15.20 A 15.25 A 15.30 A". Captured on September 25, 2026.
Where: Electrical data (STC), "Nominal current Impp" row, AC-630TGB/132WS column
[1]
Short-circuit current16.05 A
Read from the AC-630TGB/132WS column (2 of 4) of the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), Electrical data at standard test conditions (irradiance 1000 W/m², AM 1.5, cell temperature 25°C). The type row prints "Type AC-625TGB/132TWS AC-630TGB/132WS AC-635TGB/132WS AC-640TGB/132WS" and the "Short circuit current Isc" row prints "Short circuit current Isc 16.00 A 16.05 A 16.10 A 16.15 A". Captured on September 25, 2026.
Where: Electrical data (STC), "Short circuit current Isc" row, AC-630TGB/132WS column
[1]
Voltage at max power41.45 V
Read from the AC-630TGB/132WS column (2 of 4) of the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), Electrical data at standard test conditions (irradiance 1000 W/m², AM 1.5, cell temperature 25°C). The type row prints "Type AC-625TGB/132TWS AC-630TGB/132WS AC-635TGB/132WS AC-640TGB/132WS" and the "Nominal voltage Umpp" row prints "Nominal voltage Umpp 41.26 V 41.45 V 41.65 V 41.84 V". Captured on September 25, 2026.
Where: Electrical data (STC), "Nominal voltage Umpp" row, AC-630TGB/132WS column
[1]
Open-circuit voltage49.87 V
Read from the AC-630TGB/132WS column (2 of 4) of the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), Electrical data at standard test conditions (irradiance 1000 W/m², AM 1.5, cell temperature 25°C). The type row prints "Type AC-625TGB/132TWS AC-630TGB/132WS AC-635TGB/132WS AC-640TGB/132WS" and the "Open circuit voltag Uoc" row prints "Open circuit voltag Uoc 49.63 V 49.87 V 50.11 V 50.35 V". Captured on September 25, 2026.
Where: Electrical data (STC), "Open circuit voltag Uoc" row, AC-630TGB/132WS column
[1]
Bifacialyes
Printed as "High performance bifacial solar module 132 halfcell, glass/glass, N-Type" in the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), captured on September 25, 2026. The datasheet describes the family as bifacial; the rear-side gain depends on installation and albedo.
Where: Page 1, product description
[1]
Cell type132 N-Type bifacial high efficiency cells
Printed as "Cells 132 N-Type bifacial high efficiency cells" in the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), captured on September 25, 2026.
Where: Design, "Cells" row
[1]
Weight32.5 kg / 71.7 lb converted
Printed as "Weight 32.5 kg with frame" in the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), captured on September 25, 2026. One value for the whole family.
Where: Mechanical data, "Weight" row
[1]
Front glass2.0 mm semi tempered AR Solar glass
Printed as "Frontside 2.0 mm semi tempered AR Solar glass" in Axitec's DB_132zlg_biperfect_GQ WS MiA datasheet (625-640 TGB/132(T)WS, English edition), captured on September 28, 2026.
Where: Datasheet, Mechanical data, Frontside row
[1]
Rear surface2.0 mm glass, cell spaces white
Printed as "Backside 2.0 mm glass, cell spaces white" in Axitec's DB_132zlg_biperfect_GQ WS MiA datasheet (625-640 TGB/132(T)WS, English edition), captured on September 28, 2026.
Where: Datasheet, Mechanical data, Backside row
[1]
DimensionsW 1,134 × L 2,382 × T 30 mm / W 44.65 × L 93.78 × T 1.2 in converted
Printed as "L x W x H 2382 x 1134 x 30 mm" in the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), captured on September 25, 2026. Length x width x frame height; one value for the whole family.
Where: Mechanical data, "L x W x H" row
[1]
Rated power630 W
Front-side STC: 1000 W/m², cell temperature 25°C, AM1.5. Selected source revision only.
Where: Physical PDF page 2; Nennleistung Pmpp
[2]
Max system voltage1,500 V
Printed as "System voltage 1500 VDC" in the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), captured on September 25, 2026.
Where: Limit values, "System voltage" row
[1]
Module efficiency23.32 %
Read from the AC-630TGB/132WS column (2 of 4) of the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), Electrical data at standard test conditions (irradiance 1000 W/m², AM 1.5, cell temperature 25°C). The type row prints "Type AC-625TGB/132TWS AC-630TGB/132WS AC-635TGB/132WS AC-640TGB/132WS" and the "Module conversion efficiency" row prints "Module conversion efficiency 23.14 % 23.32 % 23.51 % 23.69 %". Captured on September 25, 2026.
Where: Electrical data (STC), "Module conversion efficiency" row, AC-630TGB/132WS column
[1]
Temperature coefficient-0.31 %/°C
Printed as "Output Pmpp -0.31 %/K" in Axitec reference document, Datasheet, Temperature coefficients table, "Output Pmpp" row. Revised on 1 October 2026: The datasheet prints -0.31 %/K for this module family; a change of one kelvin equals a change of one degree Celsius, so the figure is the same per °C.
Where: Datasheet, Temperature coefficients table, "Output Pmpp" row
Sources
Converted: -0.31 %/K x 1 (1 K temperature difference = 1 °C)
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Rated output
630 WEfficiency 23.32 %W / sq ft 21.7* (Calculated: 630 W ÷ (2,382 mm × 1,134 mm = 29.08 sq ft) = 21.7 W/sq ft)
Voltage (STC)
41.45 VVmp · maximum powerVoc · open circuit 49.87 VMax system 1,500 V
Current (STC)
15.2 AImp · maximum powerIsc · short circuit 16.05 A
Dimensions
W: 1,134 × L: 2,382 × T: 30 mm / W: 44.65 × L: 93.78 × T: 1.2 inWeight 32.5 kg / 71.7 lb
Warranty
30 yearsPower warranty 30 years

Evidence score

89/100100% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Every scored input has a recorded source for this product.

Each input is scored against the best documented value for a solar panel, and weight per watt against the best in the panel’s own format. A documented value always earns points; an undisclosed one earns 0 and is listed as missing. Certificates and unsupported claims do not add points.

Module efficiency23.32 %23.8 / 26.0

23.32 of 25.5 %, the best documented for a solar panel (printed by the maker): AIKO Comet 3N72 AIKO-A690-MDE72Mw 690W Mono-Glass Module

Read from the AC-630TGB/132WS column (2 of 4) of the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), Electrical data at standard test conditions (irradiance 1000 W/m², AM 1.5, cell temperature 25°C). The type row prints "Type AC-625TGB/132TWS AC-630TGB/132WS AC-635TGB/132WS AC-640TGB/132WS" and the "Module conversion efficiency" row prints "Module conversion efficiency 23.14 % 23.32 % 23.51 % 23.69 %". Captured on September 25, 2026.

[1]

Product warranty30 years21.0 / 21.0

This is the best documented for a solar panel, printed by the maker. 87 solar panels share this value.

Printed as "30 years Manufacturer‘s warranty and Performance guarantee" in the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), captured on September 25, 2026. Headline figure only; the datasheet does not print the warranty terms, exclusions or claim process.

[1]

Power warranty30 years16.0 / 16.0

This is the best documented for a solar panel, printed by the maker. 870 solar panels share this value.

Printed as "30 years Manufacturer‘s warranty and Performance guarantee" in the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), captured on September 25, 2026. Headline figure only; the yearly output steps appear only as chart labels.

[1]

Power temperature coefficient-0.31 %/°C11.4 / 16.0

0.31 against 0.22 %/°C, the lowest documented for a solar panel (printed by the maker): Jackery SolarSaga 100 Air

Printed as "Output Pmpp -0.31 %/K" in Axitec reference document, Datasheet, Temperature coefficients table, "Output Pmpp" row. Revised on 1 October 2026: The datasheet prints -0.31 %/K for this module family; a change of one kelvin equals a change of one degree Celsius, so the figure is the same per °C.

[1]

First-year degradation1 %16.0 / 16.0

This is the lowest documented for a solar panel, printed by the maker. 420 solar panels share this value.

Printed as "Natural degradation: max. 1 % within the first year thereafter max. 0.4 % annually" in the Axitec AXIbiperfect GQ WS 625 - 640 Wp datasheet, English edition (132TGBEN260304A), captured on September 25, 2026. Printed as a maximum for the first year beside the linear performance guarantee chart.

[1]

Weight / watt32.5 kg / 630 W1.2 / 5.0

0.05159 against 0.01227 kg per W, the lowest documented for a solar panel (calculated from maker figures): Go Power! 110-Watt Solar Flex™ Module

32.5 kg / 630 W. Lighter modules per watt carry less roof load. Panel format is not documented, so this is compared with every panel.

[1] [2]
