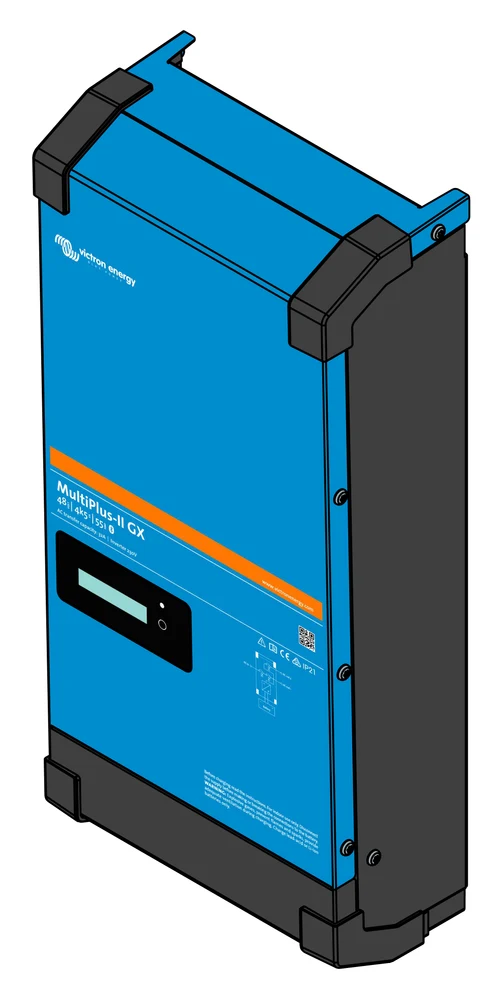

Victron Energy MultiPlus-II 48/4k5/55-32 GX

Key specs

BrandVictron Energy
ModelMultiPlus-II 48/4k5/55-32 GX
Continuous output4 kW
Surge output7,000 W
Battery operating voltage[38, 60] VDC V
AC configuration230 V AC
Efficiency95 %
Weight21.4 kg / 47.2 lb converted
Product warranty5 years

All specifications

Show all 24 specifications

Identity

BrandVictron Energy · Website
ModelMultiPlus-II 48/4k5/55-32 GX
MarketUnknown
Manufacturer SKUPMP482406000
SKU detail
locator: Victron Energy price list 2026-Q3, page 3, row "MultiPlus-II 48/4k5/55-32 GX" PMP482406000
conditions: Victron Energy's 2026-Q3 price list prints article number PMP482406000 on the row for "MultiPlus-II 48/4k5/55-32 GX" (page 3), this record's product.
Sources: [1]
FieldValueConditionsSource
Weight21.4 kg / 47.2 lb converted
Published value for this exact SKU: "21.4 kg".
Where: Victron public API technical data: weight
[2]
Peak output7 kW/1min
Printed as "Peak power 7 kW/1min 11 kW/1min" in the Victron MultiPlus-II GX 4k5 and 6k5 230V datasheet, captured on September 25, 2026; the 48/4k5/55-32 column reads "7 kW/1min".
Where: Victron MultiPlus-II GX 4k5 and 6k5 230V datasheet, specification table, "Peak power" row, 48/4k5/55-32 column
[3]
Max charge55 A
Published value for this exact SKU: "55 A".
Where: Victron public API technical data: maximumBatteryChargeCurrent
[2]
DimensionsW 275 × H 590 × D 149 mm / W 10.8 × H 23.2 × D 5.87 in converted
Published enclosure dimensions for this exact SKU: height 590 mm, width 275 mm, depth 149 mm. Mounting clearances are separate.
Where: Victron public API technical data: height, width, depth
[2]
CommunicationsVE.Bus
Published value for this exact SKU: "VE.Bus".
Where: Victron public API technical data: communicationPort
[2]
Efficiency95 %
Printed as "Maximum efficiency 95% 96%" in MultiPlus-II GX 4k5 6k5 230V manual, MultiPlus-II GX 4k5 6k5 230V manual, technical specifications, 48/4k5/55-32 column. Revised on 1 October 2026: Victron's installation manual prints the same maximum efficiency for this model, and it ranks above the product data record.
Where: MultiPlus-II GX 4k5 6k5 230V manual, technical specifications, 48/4k5/55-32 column
[4]
AC frequency50 Hz
Published value for this exact SKU: "50 Hz".
Where: Victron public API technical data: aCOutputFrequency
[2]
AC configuration230 V AC
Printed as "Output 230 V ±2 % 50 Hz ± 0.1%" in the Victron MultiPlus-II GX 4k5 and 6k5 230V datasheet, captured on September 25, 2026; the 48/4k5/55-32 column reads "230 V ±2 %".
Where: Victron MultiPlus-II GX 4k5 and 6k5 230V datasheet, specification table, "Output" row, 48/4k5/55-32 column
[3]
Enclosure ratingIP21
Published value for this exact SKU: "IP21".
Where: Victron public API technical data: protectionCategory
[2]
Battery wire size50 mm² (cables 0 to 5 m); 70 mm² (5 to 10 m)
Printed as the recommended cross-section per + and - terminal in the 48/4k5/55 GX row of the MultiPlus-II GX 4k5 6k5 230V manual (rev 02 - 07/2026), captured on September 26, 2026. The manual lists PMP482406000.
Where: Battery cable table, 48/4k5/55 GX row
[4]
Nominal voltage48 V
Published value for this exact SKU: "48 V".
Where: Victron public API technical data: batteryVoltageNominal
[2]
Surge AC output7,000 W
Published value for this exact SKU: "7,000 W".
Where: Victron public API technical data: peakPowerRating
[2]
Grid passthrough32 A
Printed as "Transfer switch 32A 50A" in MultiPlus-II GX 4k5 6k5 230V manual, MultiPlus-II GX 4k5 6k5 230V manual, technical specifications, "Transfer switch" row, 48/4k5/55-32 column. Revised on 1 October 2026: Victron's installation manual or datasheet prints this pass-through (transfer switch) current for this model, and it ranks above the product data record.
Where: MultiPlus-II GX 4k5 6k5 230V manual, technical specifications, "Transfer switch" row, 48/4k5/55-32 column
[4]
Idle consumption20 W
Published value for this exact SKU: "20 W".
Where: Victron public API technical data: zeroLoadPower
[2]
Max parallel units6 count
Printed as "A maximum of six units" in parallel (identical units) in the MultiPlus-II GX 4k5 6k5 230V manual (rev 02 - 07/2026), captured on September 26, 2026. The manual lists PMP482406000.
Where: Parallel connection
[4]
Continuous output4 kW
Printed as "Cont. output power at 25 °C 4 kW 6 kW" in the Victron MultiPlus-II GX 4k5 and 6k5 230V datasheet, captured on September 25, 2026; the 48/4k5/55-32 column reads "4 kW".
Where: Victron MultiPlus-II GX 4k5 and 6k5 230V datasheet, specification table, "Cont. output power at 25 °C" row, 48/4k5/55-32 column
[3]
Continuous AC output4,000 W
Published value for this exact SKU: "4,000 W".
Where: Victron public API technical data: contPowerW25
[2]
Recommended protectionDC fuse 180 A; AC input fuse or magnetic circuit breaker rated at 32 A or less
Printed as "DC fuse" 180A in the 48/4k5/55 GX row and in the AC input instructions of the MultiPlus-II GX 4k5 6k5 230V manual (rev 02 - 07/2026), captured on September 26, 2026. The manual lists PMP482406000.
Where: Battery cable table, 48/4k5/55 GX row; AC connection
[4]
Battery voltage range[38, 60] VDC V
Published value for this exact SKU: "[38, 60] VDC".
Where: Victron public API technical data: dCInputVoltageRange
[2]
Operating temperature[-40, 65] °C °C
Published value for this exact SKU: "[-40, 65] °C".
Where: Victron public API technical data: operatingTempRange
[2]

Owner reviews

No reviews. Be the first to review this product:
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Evidence score

7/100Missing details40% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificate evidence needed; Battery conversion efficiency needed.

Each input is scored against the best documented value for an inverter: warranty term and battery conversion efficiency against every published inverter, idle consumption (lower is better) against the inverters in the same output band, or against every published inverter when the output is not documented. A documented value always earns points; an undisclosed one earns 0 and is listed as missing. Researched products receive a score. Certificates earn points for the evidence itself. Size and weight do not affect scores.

Warranty term5 years6.0 / 30.0

5 of 25 years, the best documented for an inverter (printed by the maker): APsystems DS3

Printed as "Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date." in the Victron Energy Limited Warranty Policy (2025), captured on September 25, 2026. The policy covers Victron Energy products in general and names no model; it lists lead-acid batteries (2 years) and lithium batteries (3 years) as the exceptions. The policy also states that Victron's direct customers can buy 5 more years for a 10% surcharge. The policy is given to Victron's direct customers (OEMs, distributors and dealers), who must pass an identical warranty to the end-user; end-users claim at their place of purchase.

[5]

Idle consumption20 W0.5 / 10.0

20 against 1 W, the lowest documented for an inverter in the 3.5 to 7 kW output band (printed by the maker): Fronius Primo 3.8-1 208-240. The bar is a printed bound: less than 1 W, as printed.

Published value for this exact SKU: "20 W".

[2]

Research pending, 0 points: Certificates, Battery conversion efficiency.

Warranty term and battery conversion efficiency are compared with every published inverter; idle consumption with the inverters in the same 3.5 to 7 kW output band. · Method version 0.5

How it works

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.
EN-IEC 60335-1manufacturer claimunknown[2]
Scope
equipment listing
Covered models
PMP482406000
Limitations
Victron's public API records "EN-IEC 60335-1" in its safety field for exact SKU PMP482406000. This is a manufacturer statement: no issuer listing, certificate number, edition, scope or validity was independently checked, and the covered configuration is not established beyond the listed SKU.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Issuer checked: Sep 18, 2026
Source
[2]
EN-IEC 60335-2-29manufacturer claimunknown[2]
Scope
equipment listing
Covered models
PMP482406000
Limitations
Victron's public API records "EN-IEC 60335-2-29" in its safety field for exact SKU PMP482406000. This is a manufacturer statement: no issuer listing, certificate number, edition, scope or validity was independently checked, and the covered configuration is not established beyond the listed SKU.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Issuer checked: Sep 18, 2026
Source
[2]
EN-IEC 62109-1manufacturer claimunknown[2]
Scope
equipment listing
Covered models
PMP482406000
Limitations
Victron's public API records "EN-IEC 62109-1" in its safety field for exact SKU PMP482406000. This is a manufacturer statement: no issuer listing, certificate number, edition, scope or validity was independently checked, and the covered configuration is not established beyond the listed SKU.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Issuer checked: Sep 18, 2026
Source
[2]
EN-IEC 62109-2manufacturer claimunknown[2]
Scope
equipment listing
Covered models
PMP482406000
Limitations
Victron's public API records "EN-IEC 62109-2" in its safety field for exact SKU PMP482406000. This is a manufacturer statement: no issuer listing, certificate number, edition, scope or validity was independently checked, and the covered configuration is not established beyond the listed SKU.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Issuer checked: Sep 18, 2026
Source
[2]

Warranty

FieldValueConditionsSource
RemedyRepair, replace or (partly) credit the defective product free of charge, at Victron Energy's discretion
Printed as "repair, replace or (partly) credit the defective product free of charge" in the Victron Energy Limited Warranty Policy, captured on September 26, 2026. A repair or replacement does not extend the term; at least 6 months remain. The policy names product groups, not models; it is given to Victron's direct customers (dealers), who must pass an identical warranty to the end-user.
Where: Victron Energy Limited Warranty Policy, Warranty section
[5]
ConditionsVoid after physical damage or alteration; excludes improper use such as reversed battery polarity, inadequate connection, mechanical shock, liquid or condensation, unsuitable environment, lightning, and terminals damaged by insufficient tightening; not for products misused, neglected, improperly installed, disassembled, modified or repaired by anyone other than Victron Energy or its authorized Repair Centres
Printed in the Victron Energy Limited Warranty Policy, Warranty section, captured on September 26, 2026, which lists each excluded use. The policy names product groups, not models; it is given to Victron's direct customers (dealers), who must pass an identical warranty to the end-user.
Where: Victron Energy Limited Warranty Policy, Warranty section
[5]
Start basisDate of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date
Printed as "for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date" in the Victron Energy Limited Warranty Policy, captured on September 26, 2026. The policy names product groups, not models; it is given to Victron's direct customers (dealers), who must pass an identical warranty to the end-user.
Where: Victron Energy Limited Warranty Policy, Warranty section
[5]
Warranty term5 years
Brand-wide Victron policy; names no model
Printed as "Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date." in the Victron Energy Limited Warranty Policy (2025), captured on September 25, 2026. The policy covers Victron Energy products in general and names no model; it lists lead-acid batteries (2 years) and lithium batteries (3 years) as the exceptions. The policy also states that Victron's direct customers can buy 5 more years for a 10% surcharge. The policy is given to Victron's direct customers (OEMs, distributors and dealers), who must pass an identical warranty to the end-user; end-users claim at their place of purchase.
Where: Victron Energy Limited Warranty Policy, "Warranty" section
[5]
Labor and shippingNot included: the warranty does not perform or reimburse de-installation, transportation and re-installation
Printed as "The warranty does not include performing or reimbursing de-installation, transportation, and re-installation." in the Victron Energy Limited Warranty Policy, captured on September 26, 2026. A product needing service goes back to the place of purchase.
Where: Victron Energy Limited Warranty Policy, Warranty section
[5]
Extended warranty5 more years (10 years total) for a 10% surcharge, bought by Victron's direct customers at least one year before the original term ends
Printed in the Victron Energy Limited Warranty Policy, captured on September 26, 2026, for products that came with a 5-year warranty; Victron may ask proof that the product still worked when the extension was bought.
Where: Victron Energy Limited Warranty Policy, Warranty section
[5]
