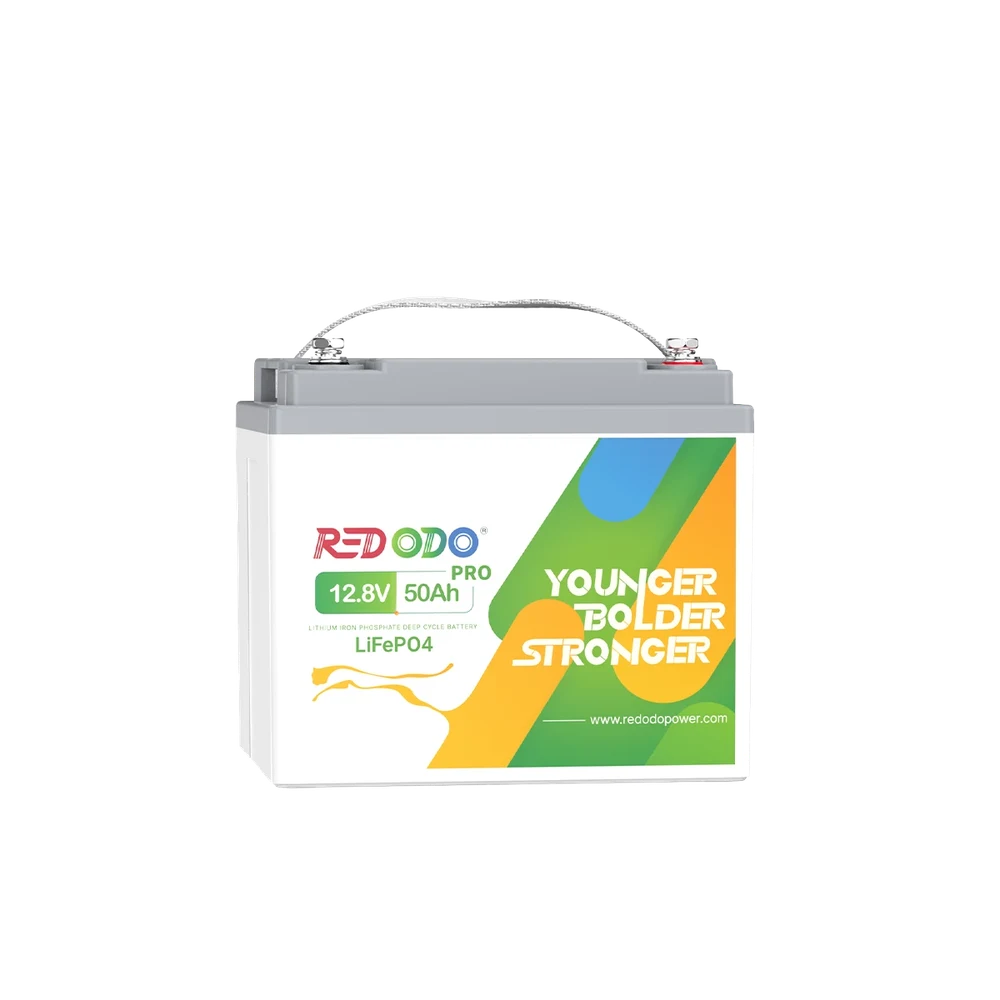

Redodo 12V 50Ah Pro LiFePO4 Battery (JP edition)
Redodo
DC battery module

Redodo 12V 50Ah Pro LiFePO4 Battery (JP edition)

Key specs

Nominal voltage12.8 V
Capacity50 Ah
Weight5.29 kg / 11.7 lb converted
Nominal energy0.64 kWh
Converted: 640 Wh / 1000 = 0.64 kWh
Cycle life4,000 cycles
Continuous discharge50 A

1 spec not documented yet: usable energyHelp fill in ›

All specifications

Identity

BrandRedodo · Website Paid link
ModelR12V50-50-PRO-4-A38-JP
MarketJP
Manufacturer SKUR12V50-50-PRO-4-A38-JP
SKU detail
locator: Store product data (https://jp.redodopower.com/products/redodo-12v-50ah-lifepo4-battery.json), variants[].sku, variant "1 個"
conditions: Redodo prints the part number "R12V50-50-PRO-4-A38-JP" against the "1 個" variant in its Japanese store's own product data for this listing, captured on September 29, 2026. The store's multi-pack, charger-bundle and tax-free variants carry their own suffixed codes and are not separate records.
Sources: [1] [2]
FieldValueConditionsSource
ChemistryLiFePO4
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "セルタイプ LiFePO4セル" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "セルタイプ: LiFePO4".
Where: PDF page 8, parameters table
[3] [2]
TerminalsM8*14 mm
Printed as "端子: M8*14 mm" in the specification table on Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP, captured on September 29, 2026.
Where: Product page, specification table, "端子" row
[2]
Weight5.29 kg / 11.7 lb converted
Printed as "重量: 5.29KG" in the specification table on Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP, captured on September 29, 2026.
Where: Product page, specification table, "重量" row
[2]
Cycle life4,000 cycles
Redodo prints "サイクルライフ ≥4000回"
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "サイクルライフ ≥4000回" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "サイクル回数: 4000".
Where: PDF page 8, parameters table
[3] [2]
Capacity50 Ah
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "定格容量 50Ah" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "公称容量: 50Ah".
Where: PDF page 8, parameters table
[3] [2]
Surge output150 A for 1 s A
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "サージ放電電流 150Aの時1秒" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints a peak figure for a different duration ("最大5秒放電電流: 100A"); it is kept beside the manual's figure as a separate printed value, not as a disagreement.
Where: PDF page 8, parameters table
Sources
100 A for 5 s A

Printed as "最大5秒放電電流: 100A" in the specification table on Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP, captured on September 29, 2026.

[2]
[3]
BMS current50 A
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "バッテリー管理システム(BMS)ボード 50A" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "BMS: 50A".
Where: PDF page 8, parameters table
[3] [2]
Case materialABS
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "バッテリーパックケース アクリロニトリル・ブタジエン・スチレン(ABS)" (PDF page 9, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "シェル材料: ABS".
Where: PDF page 9, parameters table
[3] [2]
DimensionsW 166 × H 170 × L 198 mm / W 6.54 × H 6.69 × L 7.8 in converted Check note
Manual and product page print different dimensions. The manual (Redodo 12.8V 50Ah PRO product manual (Japanese), PDF page 9) prints "サイズ L7.79 x W6.53 x H6.69inch L198 x W166 x H170mm"; Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP prints "サイズ: 195*166*172mm". Both are kept as printed; the manual value is shown first.
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "サイズ L7.79 x W6.53 x H6.69inch L198 x W166 x H170mm" (PDF page 9, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked.
Where: PDF page 9, parameters table
Sources
W 166 × H 172 × L 195 mm

Printed as "サイズ: 195*166*172mm" in the specification table on Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP, captured on September 29, 2026.

[2]
[3]
Enclosure ratingIP65
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "保護規格 IP65" (PDF page 9, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "保護等級: IP65".
Where: PDF page 9, parameters table
[3] [2]
Max series units4 count
Printed as "最大接続システム(並列&直列): 4P4S" in the specification table on Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP, captured on September 29, 2026.
Where: Product page, specification table, "最大接続システム(並列&直列)" row
[2]
Nominal voltage12.8 V
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "公称電圧 12.8V" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "公称電圧: 12.8V".
Where: PDF page 8, parameters table
[3] [2]
Max parallel units4 count
Printed as "最大接続システム(並列&直列): 4P4S" in the specification table on Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP, captured on September 29, 2026.
Where: Product page, specification table, "最大接続システム(並列&直列)" row
[2]
Nominal energy0.64 kWh
Converted: 640 Wh / 1000 = 0.64 kWh
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "エネルギー 640Wh" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. Watt-hours as printed, expressed in kWh. The product page prints the same figure: "電力量: 640Wh".
Where: PDF page 8, parameters table
Sources
Converted: 640 Wh / 1000 = 0.64 kWh
[3] [2]
Terminal torque12 to 14 N·m
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "推奨取付トルク 106.2~123.9 lbf・in/12~14 N・m" (PDF page 9, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The newton-meter range is the one recorded.
Where: PDF page 9, parameters table
[3]
Continuous charge50 A
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "最大継続充電電流 50A" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "最大継続充電電流: 50A(1C)".
Where: PDF page 8, parameters table
[3] [2]
Charge temperature0 to 50 °C / 32 to 122 °F converted
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "温度範囲 充電:0°C〜50°C" (PDF page 9, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "充電温度: 0℃ to 50 ℃ / 32℉ to 122 ℉".
Where: PDF page 9, parameters table
[3] [2]
Continuous output0.64 kW
Converted: 640 W / 1000 = 0.64 kW
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "最大継続負荷パワー 640W" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. Watts as printed, expressed in kW. The product page prints the same figure: "最大継続出力電力: 640W".
Where: PDF page 8, parameters table
Sources
Converted: 640 W / 1000 = 0.64 kW
[3] [2]
Mounting orientationバッテリーはポストボルトを上にして取り付け、逆さまに取り付けることはできません
Where: PDF page 10 (printed page 3), 予備知識, second item
[4]
Recommended charge10 A Check note
Manual and product page print different recommended charge current. The manual (Redodo 12.8V 50Ah PRO product manual (Japanese), PDF page 8) prints "推奨充電電流 10A (0.2C)"; Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP prints "推奨充電電流: 25A(0.5C)". Both are kept as printed; the manual value is shown first.
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "推奨充電電流 10A (0.2C)" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked.
Where: PDF page 8, parameters table
Sources
25 A

Printed as "推奨充電電流: 25A(0.5C)" in the specification table on Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP, captured on September 29, 2026.

[2]
[3]
Storage temperature-10 to 50 °C / 14 to 122 °F converted
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "保存:-10°C〜50°C" (PDF page 9, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "保存温度: -10℃ to 50 ℃ / 14℉ to 122 ℉".
Where: PDF page 9, parameters table
[3] [2]
Continuous discharge50 A
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "最大継続放電電流 50A" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "最大継続放電電流: 50A(1C)".
Where: PDF page 8, parameters table
[3] [2]
Discharge temperature-20 to 60 °C / -4 to 140 °F converted
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "放電:-20°C〜60°C" (PDF page 9, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "放電温度: -20℃ to 60 ℃ / -4℉ to 140 ℉".
Where: PDF page 9, parameters table
[3] [2]
Other compliance claimsUL-1973,FCC,CE,RoHS,UN38.3
Printed as "認証: UL-1973, FCC, CE, RoHS, UN38.3" in the specification table on Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP, captured on September 29, 2026. Quoted text is shown with spaces added after its punctuation; the exact printed text is kept in the printed check.
Where: Product page, specification table, "認証" row
[2]
Recommended charge voltage14.4 V
The manual (Redodo 12.8V 50Ah PRO product manual (Japanese)) prints "充電電圧 14.4V±0.2V" (PDF page 8, parameters table); image-only PDF, read from the rendered page, so the text is quoted here rather than machine-checked. The product page prints the same figure: "充電電圧: 14.4±0.2V".
Where: PDF page 8, parameters table
[3] [2]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Basic specs
0.64 kWh* (640 Wh / 1000 = 0.64 kWh)Discharge 50 ACharge 50 APeak current: 150 A for 1 s
$ / rated kWh
Unavailable
Warranty
5 yearsSee terms
Lifetime production
Not published
Size
5.59 L* (Calculated enclosure volume: W × H × D in mm ÷ 1,000,000)Value needs confirmation: Manual and product page print different dimensionsW: 166 × H: 170 × L: 198 mm / W: 6.54 × H: 6.69 × L: 7.8 in5.29 kg / 11.7 lb0.11 kWh/L* (Rated or usable capacity shown on this card ÷ enclosure volume)

Evidence score

9/100Missing details40% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Cell model disclosure evidence needed.

12 V · Format not recorded · Rated capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term5 years5 / 20

5 years · 20% weight

5 of 20 years, the best documented for a small DC battery (printed by the maker): Bioenno Power 6V 3Ah LiFePO4 Battery (PVC, BLF-0603W)

Printed as "保証: 5年" in the specification table on Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP, captured on September 29, 2026. No registration or extension term is printed in the table.

25 / 100 × 20 = 5 points.

[2]

Lifetime / capacity4,000 cycles4 / 20

Cycle rating disclosed · 20% weight

Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.

20 × 0.2 = 4 points.

[3] [2]

Research pending, 0 points: Certificates, Warranty energy disclosure, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.
UL 1973manufacturer claimpresent at observation[2]
Scope
battery pack scope unverified
Covered models
R12V50-50-PRO-4-A38-JP
Limitations
A manufacturer claim, not a listing or certificate. Printed as "認証: UL-1973,FCC,CE,RoHS,UN38.3" (Certification) in the 仕様 (Specifications) block for this battery on its product page in Redodo's Japanese store (jp.redodopower.com), captured September 29, 2026. The page does not say whether the claim covers the cells or the assembled battery. No issuer, certificate or report number is printed; the issuer's record was not checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Issuer checked: Sep 29, 2026
Source
[2]

Warranty

FieldValueConditionsSource
Warranty term5 years
Printed as "保証: 5年" in the specification table on Redodo's Japanese product page for R12V50-50-PRO-4-A38-JP, captured on September 29, 2026. No registration or extension term is printed in the table.
Where: Product page, specification table, "保証" row
[2]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.

Documents

  • Manuals

  • Redodo: user manual (12.8V_50Ah-Pro.pdf)Official · Redodo · Official instruction manual · PDF
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Archived copy captured on 2026-10-16.

    Location: Installation instructions

    Retrieved Oct 16, 2026

    Redodo's own manual, captured October 16, 2026 with the paced research fetcher (robots.txt read first). A scanned PDF with no text layer: values were read from the rendered pages. Manufacturer instructions, not independent tests.

    Archived copies

    Archived copy of a document published by Redodo. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

    Archived backupRevision not recorded · 12.66 MB

    Archived copy, unaltered, kept as a record of what Redodo published. Original address: https://cdn.shopify.com/s/files/1/0595/0577/0652/files/12.8V_50Ah-Pro.pdf?v=1757572572. Copyright and takedown

    Source first found
    This copy captured
    Archived
    File detailsOriginal source
    Embedded creation date
    None
    Embedded modification date
    None
    Pages
    24

    Embedded dates are file metadata, not independent proof of publication.

    SHA-256: 8a8b8e28f87f0d3f6a9b67df2fd8c04ef25dd1bbce9fc22f8559de04742187b9
