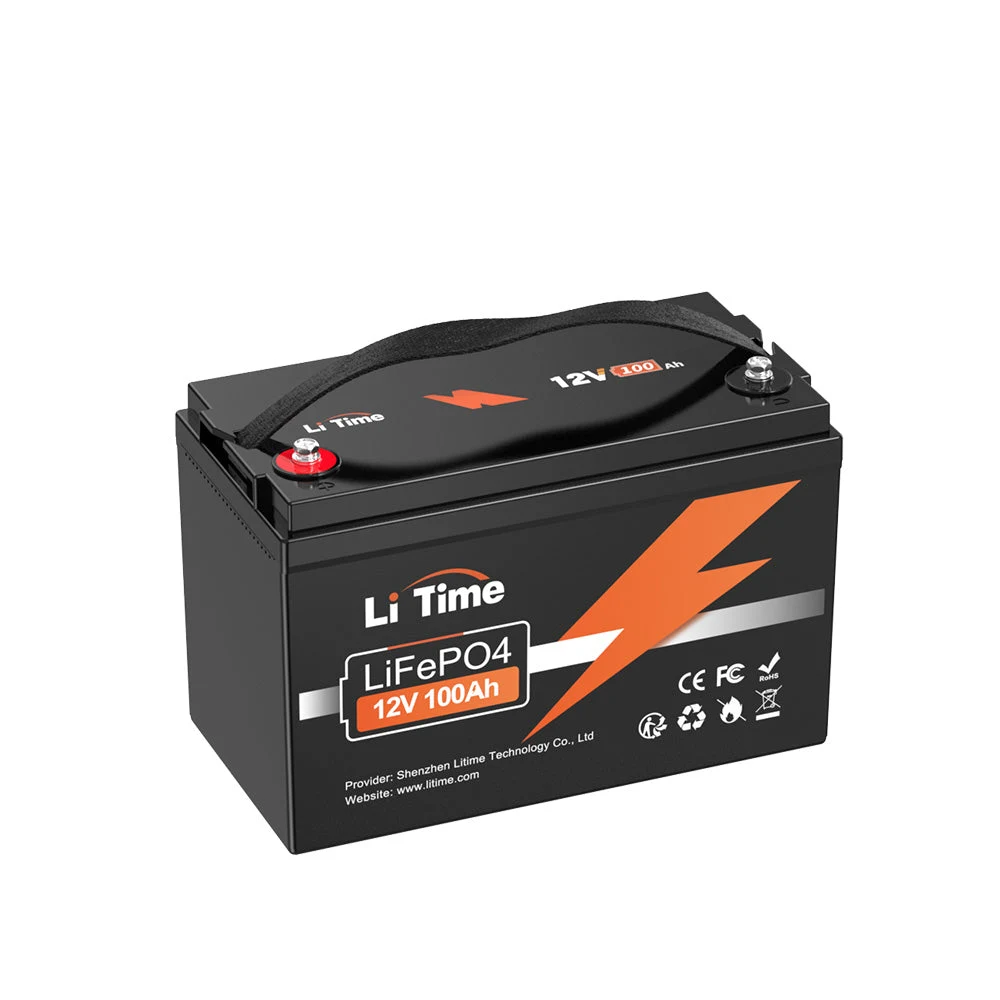

LiTime 12V 100Ah H190 2C Bluetooth Self-Heating LiFePO4 Battery (DE edition)

Key specs

BrandLiTime
ModelL12V100-200-H190-MHBT-4-AC150-DE
MarketDE
Nominal voltage12.8 V
Capacity100 Ah
Nominal energy1.28 kWh
Converted: 1280 Wh / 1000 = 1.28 kWh
ChemistryLiFePO4
Continuous discharge200 A
Cycle life4,000 cycles
Weight9.9 kg / 22 lb converted
Warranty term5 years
Self heatingYes

1 spec not documented yet

  • Usable energy
Help fill in ›

All specifications

Show all 34 specifications

Identity

BrandLiTime · Website
ModelL12V100-200-H190-MHBT-4-AC150-DE
MarketDE
Manufacturer SKUL12V100-200-H190-MHBT-4-AC150-DE
About brandLithium batteries sold for off-grid, marine, RV and home storage uses.
SKU detail
locator: Store product data embedded in the archived page (product.variants[].sku), variant "12V 100Ah H190 mit 2C-Entladung"
conditions: LiTime prints the part number "L12V100-200-H190-MHBT-4-AC150-DE" against the variant "12V 100Ah H190 mit 2C-Entladung" in the product data of its German store page https://www.litime.de/products/12v-100ah-lifepo4-untersitz-bluetooth-heizung-deep-cycle-batterie (Wayback Machine snapshot 20250427232358); the source row checks the markup for "\"sku\":\"L12V100-200-H190-MHBT-4-AC150-DE\"". The store's multi-pack, charger-bundle, tax-free ("-F-DE", 0% MwSt) and Like New or Very Good variants carry their own suffixed codes and are not separate records.
Sources: [1]
FieldValueConditionsSource
ChemistryLiFePO4
Printed as "Zellentyp: LiFePO4-Batterie" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). Recorded as the chemistry named in the cell-type row.
Where: Product page, specification table, "Zellentyp" row
[1]
TerminalsM8*14 mm
Printed as "Anschlussklemmen: M8*14 mm" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Anschlussklemmen" row
[1]
Weight9.9 kg / 22 lb converted
Printed as "Gewicht Ca.: 9.9kg" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). Printed as an approximate weight ("Gewicht Ca.").
Where: Product page, specification table, "Gewicht Ca." row
[1]
Cycle life4,000 cycles
Printed as "Zyklus Lebensdauer: 4000 Zyklen bei 100% DOD, 6000 Zyklen bei 80% DOD, 15.000 Zyklen bei 60% DOD" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Zyklus Lebensdauer" row
[1]
Capacity100 Ah
Printed as "Nennkapazität: 100Ah" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Nennkapazität" row
[1]
Self heatingyes
Printed as "Heiztemperatur: Ladung: -20°C bis 5°C" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). Translation of the label: "heating temperature".
Where: Product page, specification table, "Heiztemperatur" row
[1]
Surge output1,000 A for 1 s A
Printed as "Max.Entladestrom 1 Sekunden: 1000A" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). "Sekunden" means seconds.
Where: Product page, specification table, "Max.Entladestrom 1 Sekunden" rows
[1]
BMS current200 A
Printed as "BMS: 200A" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "BMS" row
[1]
Case materialABS
Printed as "Material des Gehäuses: ABS" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Material des Gehäuses" row
[1]
DimensionsW 177 × H 189 × L 358 mm / W 6.97 × H 7.44 × L 14.1 in converted
Printed as "Größe: 358*177*189 mm" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). Printed as length, width (B = Breite) and height.
Where: Product page, specification table, "Größe" row
[1]
Battery format
Case battery
Site classificationBased onOfficial user manual
Details

Charged Reviews classified this product from the documents it is based on. It is our own grouping, not a manufacturer claim.

Site classification based on the maker manual's product-specific top and side views of a closed standalone battery case with two external top terminal posts. The word case is our physical-format classification, not a quoted maker category. This record's existing Germany maker-page/manual binding applies only here; no sibling, regional or production-edition equivalence, mounting method or use case is inferred.

Official user manual: LiTime user manual: Selbsterhitzungs-j (Germany edition)

Location: PDF page 2, PRODUKTÜBERSICHT, product-specific top and side enclosure views; cover page 1

Enclosure ratingIP65
Printed as "Schutzklasse: IP65" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Schutzklasse" row
[1]
Max series units4 count
Printed as "Max. Erweiterung (Parallel & Serie): 4P4S" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Max. Erweiterung (Parallel & Serie)" row
[1]
Nominal voltage12.8 V
Printed as "Nennspannung: 12.8V" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Nennspannung" row
[1]
Cycle life dod100 %
Printed as "Zyklus Lebensdauer: 4000 Zyklen bei 100% DOD, 6000 Zyklen bei 80% DOD, 15.000 Zyklen bei 60% DOD" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). Depth of discharge of the first cycle figure in the row.
Where: Product page, specification table, "Zyklus Lebensdauer" row
[1]
Max parallel units4 count
Printed as "Max. Erweiterung (Parallel & Serie): 4P4S" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Max. Erweiterung (Parallel & Serie)" row
[1]
Nominal energy1.28 kWh
Converted: 1280 Wh / 1000 = 1.28 kWh
Printed as "Energie: 1280Wh" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Energie" row
Sources
Converted: 1280 Wh / 1000 = 1.28 kWh
[1]
Continuous charge100 A
Printed as "Max. Kontinuierlicher Ladestrom: 100A" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Max. Kontinuierlicher Ladestrom" row
[1]
Charge temperature-20 to 50 °C / -4 to 122 °F converted
Printed as "Ladetemperatur: -20℃ bis 50 ℃" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Ladetemperatur" row
[1]
Continuous output2.56 kW
Converted: 2560 W / 1000 = 2.56 kW
Printed as "Max. Kontinuierliche Ausgangsleistung: 2560W" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Max. Kontinuierliche Ausgangsleistung" row
Sources
Converted: 2560 W / 1000 = 2.56 kW
[1]
Recommended charge20 A
Printed as "Empfohlener Ladestrom: 20A(0.2C)" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Empfohlener Ladestrom" row
[1]
Storage temperature-10 to 50 °C / 14 to 122 °F converted
Printed as "Lagertemperatur: -10℃ bis 50 ℃" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Lagertemperatur" row
[1]
Continuous discharge200 A
Printed as "Max. Kontinuierlicher Entladestrom: 200A" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Max. Kontinuierlicher Entladestrom" row
[1]
Discharge temperature-20 to 60 °C / -4 to 140 °F converted
Printed as "Entladetemperatur: -20℃ bis 60 ℃" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Entladetemperatur" row
[1]
Other compliance claimsUL-1973,FCC,CE,RoHS,UN38.3,FCC ID,MIC
Printed in the specification table on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358); the row is quoted exactly in the capture check, since its printed punctuation (no space after commas) cannot be repeated in this note. Claims as printed by LiTime; no certificate is cited.
Where: Product page, specification table, "Zertifizierungen" row
[1]
Minimum heating charge10 A
Printed as "Erforderlicher Mindest-Ladestrom Strom für die Heizfunktion: 10A" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358).
Where: Product page, specification table, "Erforderlicher Mindest-Ladestrom Strom für die Heizfunktion" row
[1]
Recommended charge voltage14.4 V
Printed as "Ladespannung: 14.4±0.2V" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). Only the central figure is recorded; the printed tolerance is quoted.
Where: Product page, specification table, "Ladespannung" row
[1]
Low temperature charge cutoffyes
Printed as "Schutz vor niedrigen Temperaturen: 0℃" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). Translation of the label: "protection against low temperatures".
Where: Product page, specification table, "Schutz vor niedrigen Temperaturen" row
[1]
Low temperature charge cutoff0 °C / 32 °F converted
Printed as "Schutz vor niedrigen Temperaturen: 0℃" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). Translation of the label: "protection against low temperatures".
Where: Product page, specification table, "Schutz vor niedrigen Temperaturen" row
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Evidence score

9/100Missing details40% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Cell model disclosure evidence needed.

12 V · Case battery · Rated capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term5 years5 / 20

5 years · 20% weight

5 of 20 years, the best documented for a small DC battery (printed by the maker): Bioenno Power 6V 3Ah LiFePO4 Battery (PVC, BLF-0603W)

Printed as "Garantie: 5 Jahre" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). No registration or extension term is printed in the table.

25 / 100 × 20 = 5 points.

[1]

Lifetime / capacity4,000 cycles4 / 20

Cycle rating disclosed · 20% weight

Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.

20 × 0.2 = 4 points.

[1]

Research pending, 0 points: Certificates, Warranty energy disclosure, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.
UL 1973manufacturer claimpresent at observation[1]
Scope
battery pack scope unverified
Covered models
L12V100-200-H190-MHBT-4-AC150-DE
Limitations
A manufacturer claim, not a listing or certificate. Printed as "Zertifizierungen: UL-1973,FCC,CE,RoHS,UN38.3,FCC ID,MIC"; and as "EU-sicherheitszertifiziert: UL-1973, FCC, CE, RoHS, UN38.3, FCC ID und MIC" in the "Zertifizierungen" (certifications) row of the SPECS table and the product description of LiTime's own German store page for this listing, as archived by the Wayback Machine on April 27, 2025 (the copy already cited on this record, read from the capture of September 29, 2026; archive copies are a source for LiTime only, by the owner's exception). In English: "Certifications" and "EU safety certified". The page prints the part number "L12V100-200-H190-MHBT-4-AC150-DE" for this listing. No issuer, certificate or report number is printed; the issuer's record was not checked. The page does not say whether the claim covers the cell, the module or the battery.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Issuer checked: Sep 29, 2026
Source
[1]

Warranty

FieldValueConditionsSource
Warranty term5 years
Printed as "Garantie: 5 Jahre" on LiTime's German store product page for L12V100-200-H190-MHBT-4-AC150-DE (Wayback Machine snapshot 20250427232358). No registration or extension term is printed in the table.
Where: Product page, specification table, "Garantie" row
[1]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.
