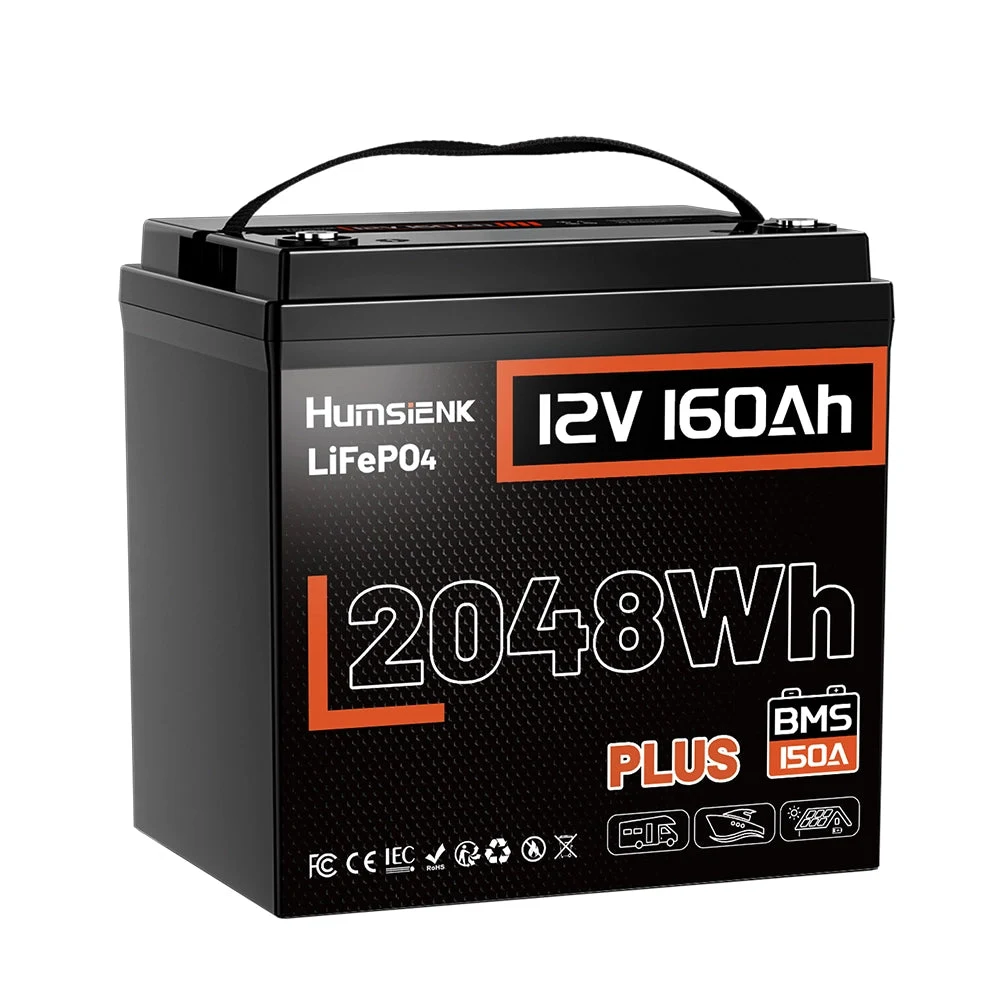

Humsienk 12V 160Ah Plus LiFePO4 battery (2.048 kWh)
Humsienk
DC battery module

Humsienk 12V 160Ah Plus LiFePO4 battery (2.048 kWh)

Key specs

Nominal voltage12.8 V
Capacity160 Ah
Weight18.7 kg / 41.2 lb converted
Nominal energy2.05 kWh
Converted: 2048 Wh / 1000 Wh per kWh
Cycle life6,000 cycles
Continuous discharge150 A

1 spec not documented yet: usable energyHelp fill in ›

All specifications

Identity

BrandHumsienk · Website
Model12V 160Ah Plus
MarketUS
Manufacturer SKUHS12V160AH150PLUS
About brandHumsienk publishes LiFePO4 battery datasheets and manuals under its own name. Its website could not be read on September 25, 2026, so no company details are recorded.
SKU detail
locator: Product page variant data, single-unit variant
conditions: Humsienk's product page lists "HS12V160AH150PLUS" as the SKU of the single-unit (1 PACK) variant in its variant data ("sku":"HS12V160AH150PLUS"), checked against the page markup; the multi-pack and bundle variants carry their own suffixed SKUs and are not recorded here. The SKU is not printed in the visible page text or in the datasheet.
Sources: [1]
FieldValueConditionsSource
Bluetoothno
The user manual prints "Communications Mini Smart/Smart Bluetooth support only"; the 12V 160Ah Plus is not a Smart model.
Where: User manual (2604), Battery Parameters page 06, Communications row
[2]
ChemistryLiFePO4Printed as "LiFePO4 Battery Datasheet".
Where: Datasheet page 1 heading
[3]
TerminalsM8
Terminal row, printed as "M8". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading.
Where: Datasheet page 1, Technical Specifications table, Terminal row
[3] [2]
Use casesMarine, Off-grid, RV and van
Humsienk prints "This battery is ideal for RVs, trolling motors, fish finders, camping, off-grid solar systems, backup power, and 12V appliances." (Product page, description). The labels are the maker's own words: Marine from "trolling motors"; Off-grid from "off-grid"; RV and van from "RVs".
Where: Product page, description
[1]
Weight18.7 kg / 41.2 lb converted
Printed as "18.7kg±3%". The 12V series user manual (file 2604) prints the same figures in its "12V160Ah 150A Plus" column: 32A/150A standard/maximum continuous charging, 150A maximum continuous discharge, 41.23±3% lb and 10.07 X 7.66 X 9.99 in (its text layer runs the table cells together; the column was confirmed on the rendered page).
Where: Datasheet page 1, Dimensions & Weight panel and Weight row
[3] [2]
Cycle life6,000 cycles
Cycle Life row, printed as "6000@DOD80%". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading. No temperature, C-rate or end-of-life capacity is printed beside it.
Where: Datasheet page 1, Technical Specifications table, Cycle Life row
[3] [2]
Capacity160 Ah
Nominal Capacity row, printed as "160Ah". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading.
Where: Datasheet page 1, Technical Specifications table, Nominal Capacity row
[3]
BMS current150 A
Printed as "150A BMS for strong protection against short circuits, overloads, and over-discharge".
Where: Datasheet page 1, Brief Introduction, BMS line
[3]
Case materialABS+PC/UL94-VO Check note
Humsienk documents disagree. The user manual prints ABS+PC/UL94-VO; the datasheet prints ABS.
The user manual prints "Case Material ABS+PC/UL94-VO".
Where: User manual (2604), Battery Parameters page 06, Case Material row
Sources
ABS

Plastic Case row reads "ABS". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading.

[3]
[2]
DimensionsW 194.59 × H 253.65 × L 255.83 mm / W 7.66 × H 9.99 × L 10.07 in converted Check note
Humsienk documents disagree. The datasheet and user manual print 255.83 x 194.59 x 253.65 mm (10.07 x 7.66 x 9.99 in); the product page FAQ prints 10.08 x 7.68 x 9.96 in (256 x 195 x 253 mm).
Dimensions & Weight panel prints Length 255.83 mm, Width 194.59 mm and Height 253.65 mm; the Size row gives the same figures with inches. The 12V series user manual (file 2604) prints the same figures in its "12V160Ah 150A Plus" column: 32A/150A standard/maximum continuous charging, 150A maximum continuous discharge, 41.23±3% lb and 10.07 X 7.66 X 9.99 in (its text layer runs the table cells together; the column was confirmed on the rendered page).
Where: Datasheet page 1, Dimensions & Weight panel and Size row
Sources
W 195 × H 253 × L 256 mm

The product page FAQ prints "Dimensions: 10.08 x 7.68 x 9.96 inches (256 x 195 x 253 mm)".

[1]
[3] [2]
Enclosure ratingIP65
Ingress Protection Rating row, printed as "IP65". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading.
Where: Datasheet page 1, Technical Specifications table, Ingress Protection Rating row
[3] [2]
Max series units4 batteries
Printed as "4 Series(Max) 4 Parallel(Max)".
Where: User manual (2604), Battery Parameters page 06, Series & Parallel Connections row
[2]
Nominal voltage12.8 V
Nominal Voltage row, printed as "12.8V". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading.
Where: Datasheet page 1, Technical Specifications table, Nominal Voltage row
[3]
Series connectionyes
Printed as "Connections 4 Series(Max) 4 Parallel(Max)"; "Max. Connection in Series & Parallel(4S4P)" in the Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages) (pages 9, 13, Battery Parameters and Installation Guide, Connection Steps). The Battery Parameters table covers all 17 models of the manual, including 12V160Ah Plus.
Where: PDF pages 9, 13, Battery Parameters and Installation Guide, Connection Steps
[2]
Cycle life dod80 %
Depth of discharge printed with the cycle-life claim ("6000@DOD80%").
Where: Datasheet page 1, Technical Specifications table, Cycle Life row
[3]
Max parallel units4 batteries
Printed as "4 Series(Max) 4 Parallel(Max)".
Where: User manual (2604), Battery Parameters page 06, Series & Parallel Connections row
[2]
Nominal energy2.05 kWh
Converted: 2048 Wh / 1000 Wh per kWh
Energy row, printed as "2048Wh". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading. Usable energy is not printed.
Where: Datasheet page 1, Technical Specifications table, Energy row
Sources
Converted: 2048 Wh / 1000 Wh per kWh
[3]
Continuous charge150 A
Max. Continuous Charge Current row, printed as "150A". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading. The 12V series user manual (file 2604) prints the same figures in its "12V160Ah 150A Plus" column: 32A/150A standard/maximum continuous charging, 150A maximum continuous discharge, 41.23±3% lb and 10.07 X 7.66 X 9.99 in (its text layer runs the table cells together; the column was confirmed on the rendered page).
Where: Datasheet page 1, Technical Specifications table, Max. Continuous Charge Current row
[3] [2]
Certification claimsIEC62133; RoHS; CE; FCC; UN38.3; Class9
Printed as "Battery Pack Certifications IEC62133/RoHS/CE/FCC/UN38.3/Class9"; the manual separately prints "Cell Certifications UL1642/UL2580/UN38.3". Manufacturer claims; no certificate was read.
Where: User manual (2604), Battery Parameters page 06, Battery Pack Certifications row
[2]
Charge temperature0 to 55 °C / 32 to 131 °F converted
Charge Temperature row, printed as "32°F~131°F/0℃~55°C". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading.
Where: Datasheet page 1, Technical Specifications table, Charge Temperature row
[3]
Mounting orientationCan be mounted in any position; secure and protect the terminals when mounting
Printed as "You can mount our battery in any position" in the Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages) (page 16, FAQs).
Where: PDF page 16, FAQs
[2]
Recommended charge32 A
Charge Recommended Current row, printed as "32A". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading. The 12V series user manual (file 2604) prints the same figures in its "12V160Ah 150A Plus" column: 32A/150A standard/maximum continuous charging, 150A maximum continuous discharge, 41.23±3% lb and 10.07 X 7.66 X 9.99 in (its text layer runs the table cells together; the column was confirmed on the rendered page).
Where: Datasheet page 1, Technical Specifications table, Charge Recommended Current row
[3] [2]
Storage temperature0 to 60 °C / 32 to 140 °F converted Check note
Humsienk documents disagree. The user manual prints 0 to 60 °C for storage; the datasheet and product page print 0 to 45 °C.
The user manual prints "Store in a ventilated and dry place (32~140°F/0~60°C)" and "Storage Temperature 32~140°F".
Where: User manual (2604), safety page and Battery Parameters page 06, Storage Temperature row
Sources
0 to 45 °C

Storage Temperature row, printed as "32°F~113°F/0°C~45°C". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading.

[3] [1]
[2]
Continuous discharge150 A
Max. Continuous Discharge Current row, printed as "150A". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading. The 12V series user manual (file 2604) prints the same figures in its "12V160Ah 150A Plus" column: 32A/150A standard/maximum continuous charging, 150A maximum continuous discharge, 41.23±3% lb and 10.07 X 7.66 X 9.99 in (its text layer runs the table cells together; the column was confirmed on the rendered page).
Where: Datasheet page 1, Technical Specifications table, Max. Continuous Discharge Current row
[3] [2]
Discharge temperature-20 to 60 °C / -4 to 140 °F converted
Discharge Temperature row, printed as "- 4°F~140°F/- 20°C~60°C". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading.
Where: Datasheet page 1, Technical Specifications table, Discharge Temperature row
[3]
Recommended discharge80 A
Discharge Recommended Current row, printed as "80A". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading.
Where: Datasheet page 1, Technical Specifications table, Discharge Recommended Current row
[3]
Discharge cutoff voltage10 V
Discharge Cut-Off Voltage row, printed as "10V". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading.
Where: Datasheet page 1, Technical Specifications table, Discharge Cut-Off Voltage row
[3]
Recommended charge voltage14.6 V Check note
Humsienk documents disagree. The user manual prints a 14.6 V charge voltage; the datasheet and product page print 14.4 V.
The 12V series user manual prints "Standard Charging Voltage 14.6±0.2V" for all its 12V models, including 12V160Ah Plus, and its safety page prints "Use only a LiFePO4 charger (14.6V ±0.2V )".
Where: User manual (2604), Battery Parameters page 06, Standard Charging Voltage row
Sources
14.4 V

Charge Voltage row, printed as "14.4V±0.2V". The datasheet's text layer gives the Technical Specifications labels and values as two separate runs; each value is matched to its label by row position, checked against the page rendered for reading. Charge mode is printed as "CC/CV".

[3] [1]
[2]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Basic specs
2.05 kWh* (2048 Wh / 1000 Wh per kWh)Discharge 150 ACharge 150 A
$ / rated kWh
Unavailable
Warranty
5 yearsSee terms
Lifetime production
Not published
Size
12.63 L* (Calculated enclosure volume: W × H × D in mm ÷ 1,000,000)Value needs confirmation: Humsienk documents disagreeW: 194.59 × H: 253.65 × L: 255.83 mm / W: 7.66 × H: 9.99 × L: 10.07 in18.7 kg / 41.2 lb0.16 kWh/L* (Rated or usable capacity shown on this card ÷ enclosure volume)

Evidence score

9/100Missing details40% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Cell model disclosure evidence needed.

12 V · Format not recorded · Rated capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term5 years5 / 20

5 years · 20% weight

5 of 20 years, the best documented for a small DC battery (printed by the maker): Bioenno Power 6V 3Ah LiFePO4 Battery (PVC, BLF-0603W)

The manual prints "Please Scan the QR Code to Register for the 5-Year Warranty" and lists exclusions, including series connection of more than four batteries or parallel connection of more than four batteries. No other term, start date or capacity threshold is printed.

25 / 100 × 20 = 5 points.

[2]

Lifetime / capacity6,000 cycles4 / 20

Cycle rating disclosed · 20% weight

Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.

20 × 0.2 = 4 points.

[3] [2]

Research pending, 0 points: Certificates, Warranty energy disclosure, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.
CEmanufacturer claimpresent at observation[2]
Scope
unresolved document set
Covered models
12V160Ah 150A Plus
Limitations
Printed as "CE" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[2]
Class9manufacturer claimpresent at observation[2]
Scope
unresolved document set
Covered models
12V160Ah 150A Plus
Limitations
Printed as "Class9" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[2]
FCCmanufacturer claimpresent at observation[2]
Scope
unresolved document set
Covered models
12V160Ah 150A Plus
Limitations
Printed as "FCC" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[2]
IEC62133manufacturer claimpresent at observation[2]
Scope
unresolved document set
Covered models
12V160Ah 150A Plus
Limitations
Printed as "IEC62133" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[2]
RoHSmanufacturer claimpresent at observation[2]
Scope
unresolved document set
Covered models
12V160Ah 150A Plus
Limitations
Printed as "RoHS" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[2]
UL94V-0manufacturer claimpresent at observation[2]
Scope
unresolved document set
Covered models
12V160Ah 150A Plus
Limitations
Printed as "UL94V-0" in the Key Features page of Humsienk's 12V series user manual (file 2604), as "UL94V-0 Certified". Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[2]
UN38.3manufacturer claimpresent at observation[2]
Scope
unresolved document set
Covered models
12V160Ah 150A Plus
Limitations
Printed as "UN38.3" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[2]

Warranty

FieldValueConditionsSource
RegistrationScan the QR code to register for the 5-year warranty
Printed as "Please Scan the QR Code to Register for the 5-Year Warranty" in the Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages) (page 17, Warranty and Returns).
Where: PDF page 17, Warranty and Returns
[2]
Warranty term5 years
The manual prints "Please Scan the QR Code to Register for the 5-Year Warranty" and lists exclusions, including series connection of more than four batteries or parallel connection of more than four batteries. No other term, start date or capacity threshold is printed.
Where: User manual, Warranty and Returns page
[2]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.

Documents

  • Manuals

  • Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages)Official · Humsienk · Official user manual · PDF
    Certificate & compliance claims (7)
    IEC62133Manufacturer claim · unresolved document setClaimedListed when checked

    Printed as "IEC62133" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.

    Manufacturer document

    Official user manual: Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages)
    RoHSManufacturer claim · unresolved document setClaimedListed when checked

    Printed as "RoHS" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.

    Manufacturer document

    Official user manual: Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages)
    CEManufacturer claim · unresolved document setClaimedListed when checked

    Printed as "CE" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.

    Manufacturer document

    Official user manual: Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages)
    FCCManufacturer claim · unresolved document setClaimedListed when checked

    Printed as "FCC" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.

    Manufacturer document

    Official user manual: Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages)
    UN38.3Manufacturer claim · unresolved document setClaimedListed when checked

    Printed as "UN38.3" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.

    Manufacturer document

    Official user manual: Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages)
    Class9Manufacturer claim · unresolved document setClaimedListed when checked

    Printed as "Class9" in the Battery Pack Certifications row of Humsienk's 12V series user manual (file 2604). Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.

    Manufacturer document

    Official user manual: Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages)
    UL94V-0Manufacturer claim · unresolved document setClaimedListed when checked

    Printed as "UL94V-0" in the Key Features page of Humsienk's 12V series user manual (file 2604), as "UL94V-0 Certified". Recorded exactly as printed, as a manufacturer claim. No certification body, certificate number or scope is named, no certificate was read and no issuer record was checked.

    Manufacturer document

    Official user manual: Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages)
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Captured by scripts/prepare-brand-sweep-sep21.mjs on 2026-09-28.

    Location: Specifications pages

    Retrieved Sep 28, 2026

    Humsienk's later 12V series user manual, linked as "User Manual" from the humsienk.com 12V 160Ah Plus and 12V 240Ah product pages, served from Humsienk's Shopify file store, captured on September 28, 2026. Its cover lists 12V 314Ah Mini, 200Ah, 200Ah Plus, 150Ah, 160Ah Plus, 314Ah Mini Smart, 320Ah, 320Ah Smart, 460Ah Plus, 640Ah Smart, 50Ah, 100Ah, 100Ah Smart, 100Ah Max, 100Ah Max Smart, 100Ah Max Plus and 100Ah Max Plus Smart; it does not list a 240Ah model. Its specification tables have a text layer that runs the table cells together, so values are also checked against the rendered pages. It prints no revision or date beyond the file name.

    Archived copies

    Archived copy of a document published by Humsienk. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

    Archived backupRevision not recorded · 6.12 MB

    Archived copy, unaltered, kept as a record of what Humsienk published. Original address: https://cdn.shopify.com/s/files/1/0867/1821/8558/files/Humsienk_12V_LiFePO4_Battery_User_Manual_2604.pdf?v=1776774087. Copyright and takedown

    Source first found
    This copy captured
    Archived
    File detailsOriginal source
    Embedded creation date
    None
    Embedded modification date
    None
    Pages
    19

    Embedded dates are file metadata, not independent proof of publication.

    SHA-256: cc687812e026ec4ebaa22c795ee28e63339736d67b6399e254a34ef4d0fe7b86

    Open
  • Datasheets

  • Humsienk 12V 160Ah LiFePO4 Battery Datasheet (2 pages)Official · Humsienk · Official datasheet · PDF
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Captured by scripts/prepare-brand-sweep-sep21.mjs on 2026-09-28.

    Location: Page 1 Technical Specifications table

    Retrieved Sep 28, 2026

    Humsienk's two-page datasheet headed "LiFePO4 Battery Datasheet", linked as the tech specs download from the humsienk.com product page and served from Humsienk's Shopify file store (cdn.shopify.com/s/files/1/0867/1821/8558), captured on September 28, 2026. It prints no revision or date. Its text layer separates the table labels from their values.

    Archived copies

    Archived copy of a document published by Humsienk. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

    Archived backupRevision not recorded · 2.60 MB

    Archived copy, unaltered, kept as a record of what Humsienk published. Original address: https://cdn.shopify.com/s/files/1/0867/1821/8558/files/Humsienk_12V_160Ah_Plus_LiFePO4_Battery_Tech_Specs.pdf?v=1776773868. Copyright and takedown

    Source first found
    This copy captured
    Archived
    File detailsOriginal source
    Embedded creation date
    None
    Embedded modification date
    None
    Pages
    2

    Embedded dates are file metadata, not independent proof of publication.

    SHA-256: 1f0c9c84942a7bb6ff5c622b1647bfecc3de2cbbbc8ad89e98faf4a1832df99b

    Open
  • Other documents

  • Humsienk US store page for the 12V 160Ah Plus (humsienk.com, captured October 21, 2026)Official · Humsienk · Official product page · Web page
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Archived copy captured on 2026-10-21.

    Location: Footer, prices and product variant data

    Retrieved Oct 21, 2026

    Humsienk's own US store page humsienk.com/products/12v-160ah-lifepo4-battery, captured October 21, 2026 with the paced research fetcher to read the market it is sold for. Its footer prints "Humsienk-US", it prices in US dollars, its store settings give country US and currency USD, and its product data lists variant SKU HS12V160AH150PLUS ("1 PACK (2.04kWh)"). Store statements, not independent tests.

    Open

Archive and older revisions

Archive and older revisions1

Earlier revisions, archived captures and copies published by someone other than the manufacturer. Every one stays reachable.

Archived documents

Humsienk 12V 160Ah LiFePO4 Battery Datasheet (2 pages)

Archived copy of a document published by Humsienk. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

Archived backupRevision not recorded · 2.60 MB

Archived copy, unaltered, kept as a record of what Humsienk published. Original address: https://cdn.shopify.com/s/files/1/0867/1821/8558/files/Humsienk_12V_160Ah_Plus_LiFePO4_Battery_Tech_Specs.pdf?v=1776773868. Copyright and takedown

Source first found
This copy captured
Archived
File detailsOriginal source
Embedded creation date
None
Embedded modification date
None
Pages
2

Embedded dates are file metadata, not independent proof of publication.

SHA-256: 1f0c9c84942a7bb6ff5c622b1647bfecc3de2cbbbc8ad89e98faf4a1832df99b

Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages)

Archived copy of a document published by Humsienk. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

Archived backupRevision not recorded · 6.12 MB

Archived copy, unaltered, kept as a record of what Humsienk published. Original address: https://cdn.shopify.com/s/files/1/0867/1821/8558/files/Humsienk_12V_LiFePO4_Battery_User_Manual_2604.pdf?v=1776774087. Copyright and takedown

Source first found
This copy captured
Archived
File detailsOriginal source
Embedded creation date
None
Embedded modification date
None
Pages
19

Embedded dates are file metadata, not independent proof of publication.

SHA-256: cc687812e026ec4ebaa22c795ee28e63339736d67b6399e254a34ef4d0fe7b86

Submit a document

Parts and accessories

No sourced accessories or replacement parts listed yet.

Model history

Model identity

Model
12V 160Ah Plus
Published model / SKU
12V160Ah 150A Plus

Printed as the column heading "12V160Ah 150A Plus" in the 12V series user manual (file 2604) specification table.

[2]

Manufacturer SKU HS12V160AH150PLUS · US market

No historical observations recorded yet.

Other recorded fields

FieldValueConditionsSource
Evidence breakdown
method version: 0.21-personal
documented pct: 40
basis: nominal
missing:
Certificates evidence needed
Warranty energy disclosure evidence needed
Cell model disclosure evidence needed
criteria:
key: certificateEvidence
label: Certificates
value: 0
unit: evidence points
shown: IEC62133 · RoHS +5
shown detail: Research pending
state: pending
points: 0
ceiling: 45
weight: 45
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: No qualifying applicable evidence recorded. This is not proof that certification is absent. Applies: UL 1973; CEC not applicable to 12 V / 24 V / 36 V DC modules; UL 9540 not applicable to 12 V / 24 V / 36 V DC modules.
display note: Unknown
Sources: No source on record
key: years
label: Warranty term
value: 5
unit: years
shown: 5 years
shown detail: Unknown
state: documented
points: 5
ceiling: 20
weight: 20
share: 25
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note:
display note: Unknown
Sources: [2]
key: throughputEvidence
label: Warranty energy disclosure
value: 0
unit: evidence points
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 10
weight: 10
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: No qualifying quantified warranty energy recorded. This is an evidence gap, not a performance judgment.
display note: Unknown
Sources: No source on record
key: lifetime
label: Lifetime / capacity
value: Unknown
unit: MWh/kWh
shown: 6,000 cycles
shown detail: Unknown
state: documented
points: 4
ceiling: 20
weight: 20
share: Unknown
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note: Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.
display note: Unknown
Sources: [3] [2]
key: cellDisclosure
label: Cell model disclosure
value: 0
unit: disclosure points
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 5
weight: 5
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: A sourced cell manufacturer and model are needed. Grade A, chemistry and cell capacity alone do not identify a cell model.
display note: Unknown
Sources: No source on record

Community discussions

No discussions linked yet. Search DIY Solar Forum

Sources

  1. Humsienk product page "[2.04kWh] Humsienk 12V 160Ah Plus LiFePO4 Battery with 150A Low-Temp Protection BMS for RV & Marine" (humsienk.com, September 28, 2026 capture) (Humsienk · manufacturer · observed Sep 28, 2026)
  2. Humsienk User Manual 12V Series LiFePO4 Deep Cycle Battery, file "User_Manual_2604" (19 pages) (Humsienk · manufacturer · observed Sep 28, 2026)
  3. Humsienk 12V 160Ah LiFePO4 Battery Datasheet (2 pages) (Humsienk · manufacturer · observed Sep 28, 2026)

Sign in to report an error on this page

Similar products

All with a price

* Missing details
