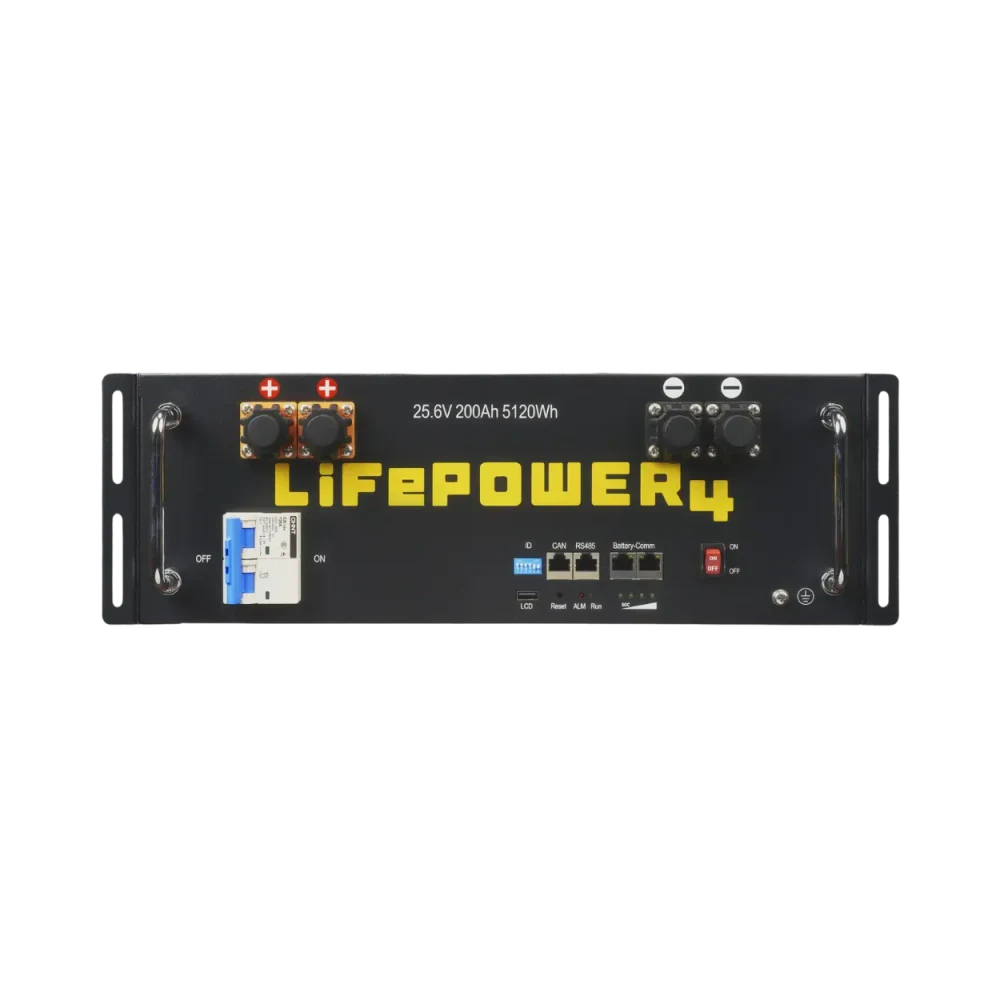

EG4 LifePower4 24V V2 200Ah
EG4 Electronics
DC battery module

EG4 LifePower4 24V V2 200Ah

Key specs

Nominal voltage25.6 V
Capacity200 Ah
Weight45 kg / 99 lb converted
Nominal energy5.12 kWh
Cycle life6,000 cycles
Continuous discharge200 A

2 specs not documented yet: usable energy, estimated throughputHelp fill in ›

EG4 LifePower4 24V V2 200Ahread Nov 15, 2026

All specifications

Identity

BrandEG4 Electronics · Website
ModelSR-24-200-LP4-IN-02
MarketUS
Manufacturer SKUSR-24-200-LP4-IN-02
About brandSolar batteries, inverters and system equipment.
SKU detail
locator: Manufacturer specification sheet, Model
conditions:
Sources: [1]
FieldValueConditionsSource
ChemistryLiFePO4
Where: Specification table
[1]
Weight45 kg / 99 lb converted
Where: Specification table
[1]
Cycle life6,000 cyclesMore than 6000 cycles claimed at 80% depth of discharge.
Where: Specification table
[1]
Capacity200 Ah
Where: Specification table
[1]
DimensionsW 442 × H 155 × D 470 mm / W 17.4 × H 6.1 × D 18.5 in convertedHeight × width × depth as printed.
Where: Specification table
[1]
Battery format
Server rack
Site classificationBased onDistributor product page Paid link
Details

Charged Reviews classified this product from the documents it is based on. It is our own grouping, not a manufacturer claim.

Current Connected states the physical format on the page already recorded for this exact product: "EG4 LifePower4 V2 24V 200Ah 5.12kWh LiFePO4 Server Rack Battery, Residential Lithium Battery The EG4 LifePower4 Battery has a 99% Efficiency for LiFeP04 16-cell pack. With more energy density in". Read from the page's own product description block, not from navigation text and not from the product name.

Distributor product page: EG4 LifePower4 V2 24V 200Ah 5.12kWh LiFePO4 Server Rack Battery, Residential Lithium Battery: Current Connected Paid link

Location: Schema.org Product description on https://www.currentconnected.com/product/eg4-lifepower4-lithium-battery-24v-200ah-server-rack-battery/

Enclosure ratingIP21
Where: Specification table
[1]
Max series units1 batteries
Printed as "MAXIMUM MODULES IN SERIES 1" in the EG4 LifePower4 24V Battery Quick Start Guide, general specifications, captured on September 26, 2026. The guide warns not to connect EG4 batteries in series.
Where: General specifications
[2]
Maximum charge200 AMaximum continuous charge current.
Where: Specification table
[1]
Nominal voltage25.6 V
Where: Specification table
[1]
Max parallel units64 units
Where: Specification table
[1]
Nominal energy5.12 kWh
Where: Specification table
[1]
Terminal torque6.8 N·m
Printed as "torque [60 in-lbs. (6.8Nm)]" in the EG4 LifePower4 24V Battery Quick Start Guide, installation, captured on September 26, 2026.
Where: Installation
[2]
Continuous charge200 AMaximum continuous rating in the manufacturer specification table.
Where: Specification table
[1]
Continuous output5.12 kW
Where: Specification table
[1]
Recommended charge30 A
Where: Specification table
[1]
Storage temperature-20 to 50 °C / -4 to 122 °F converted
Printed as "STORAGE RANGE -4°F – 122°F (-20°C – 50°C)" in the EG4 LifePower4 24V Battery Quick Start Guide, environmental parameters, captured on September 26, 2026.
Where: Environmental parameters
[2]
Continuous discharge200 A
Where: Specification table
[1]
Charge cutoff voltage30 V
Printed as "MODULE VOLTAGE PROTECTION 30.0V 1 sec 27.6V" in the EG4 LifePower4 24V Battery Quick Start Guide, BMS parameters (charge), captured on September 26, 2026. Module over-voltage protection trip, 1 s delay, with its recovery voltage.
Where: BMS parameters, charge
[2]
Discharge cutoff voltage22.4 V
Printed as "MODULE VOLTAGE PROTECTION 22.4V 1 sec 24V" in the EG4 LifePower4 24V Battery Quick Start Guide, BMS parameters (discharge), captured on September 26, 2026. Module under-voltage protection trip, with its recovery voltage.
Where: BMS parameters, discharge
[2]
Recommended charge voltage28 V
Printed as "CHARGING VOLTAGE (BULK/ABSORB) 28.0 ± 0.4V" in the EG4 LifePower4 24V Battery Quick Start Guide, module operating parameters, captured on September 26, 2026.
Where: Module operating parameters
[2]
Estimated lifetime energy mwhUnknown
Not printed for this model in the documents on file. Revised on 1 October 2026: The spec sheet prints more than 6,000 cycles and 5.12kWh but no lifetime energy figure.
[1]
Charge operating temperature0 to 45 °C
Where: Specification table
[1]
Discharge operating temperature-20 to 50 °C
Where: Specification table
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

Lowest first. Each price is the date we last read it; it may have changed. Stock isn't shown.

StorePriceReadDetailsSource
ShopSolar$1,199Nov 15, 2026Price ShopSolar's product data prints for this listing (SKU 1511027) on October 28, 2026: "price":119900 in cents, $1,199.00. The data also prints a compare-at price of 143900 cents, not recorded as a price. One unit as listed; shipping is not included. The currency is the page's structured data "priceCurrency": "USD". · Store SKU 1511027
Price readings (15)
  • Oct 27, 2026: $1,199
  • Oct 28, 2026: $1,199
  • Oct 29, 2026: $1,199
  • Oct 30, 2026: $1,199
  • Oct 31, 2026: $1,199
  • Nov 1, 2026: $1,199
  • Nov 3, 2026: $1,199
  • Nov 4, 2026: $1,199
  • Nov 5, 2026: $1,199
  • Nov 6, 2026: $1,199
  • Nov 7, 2026: $1,199
  • Nov 8, 2026: $1,199
  • Nov 12, 2026: $1,199
  • Nov 13, 2026: $1,199
  • Nov 15, 2026: $1,199
[3] [4]View now Paid link
Current Connected$1,349.99Sep 29, 2026One exact SR-24-200-LP4-IN-02 battery module; no rack, cabinet, or bundle assumption. · Store SKU EG4LP24V200AV2
Price readings (7)
  • Sep 17, 2026: $1,349.99
  • Sep 20, 2026: $1,349.99
  • Sep 23, 2026: $1,349.99
  • Sep 25, 2026: $1,349.99
  • Sep 26, 2026: $1,349.99
  • Sep 27, 2026: $1,349.99
  • Sep 29, 2026: $1,349.99
[5] [1] [6] [7]View now Paid link

Price history

Prices we read at Current Connected and ShopSolar · 23 readings from to

Chart, listings & data

Since · Listing price (USD)

View listing at Current Connected Paid link
View listing at ShopSolar Paid link
$1,000$1,200$1,400$1,600Current Connected: $1,349.99 · Sep 17, 2026, 1:58 PM PDTCurrent Connected: $1,349.99 · Sep 20, 2026, 8:00 AM PDTCurrent Connected: $1,349.99 · Sep 23, 2026, 4:53 AM PDTCurrent Connected: $1,349.99 · Sep 25, 2026, 2:32 AM PDTCurrent Connected: $1,349.99 · Sep 26, 2026, 3:31 AM PDTCurrent Connected: $1,349.99 · Sep 27, 2026, 4:32 AM PDTCurrent Connected: $1,349.99 · Sep 29, 2026, 2:02 AM PDTShopSolar: $1,199 · Oct 27, 2026, 9:08 PM PDTShopSolar: $1,199 · Oct 28, 2026, 1:26 AM PDTShopSolar: $1,199 · Oct 29, 2026, 1:16 AM PDTShopSolar: $1,199 · Oct 30, 2026, 1:26 AM PDTShopSolar: $1,199 · Oct 31, 2026, 1:27 AM PDTShopSolar: $1,199 · Nov 1, 2026, 1:07 AM PDTShopSolar: $1,199 · Nov 3, 2026, 1:06 AM PSTShopSolar: $1,199 · Nov 4, 2026, 1:06 AM PSTShopSolar: $1,199 · Nov 5, 2026, 1:06 AM PSTShopSolar: $1,199 · Nov 6, 2026, 1:07 AM PSTShopSolar: $1,199 · Nov 7, 2026, 1:17 AM PSTShopSolar: $1,199 · Nov 8, 2026, 1:16 AM PSTShopSolar: $1,199 · Nov 12, 2026, 1:26 AM PSTShopSolar: $1,199 · Nov 13, 2026, 1:06 AM PSTShopSolar: $1,199 · Nov 15, 2026, 12:06 AM PSTSep 17, 2026Nov 15, 2026
ShopSolar$1,199Nov 15, 2026, 12:06 AM PSTLatest check · hover or tap for earlier prices

A break in a line is a gap in our readings: no price is drawn for days we did not read.

Price data
Collected price observations by seller
CheckedSellerPrice
Sep 17, 2026, 1:58 PM PDTCurrent Connected Paid link$1,349.99
Sep 17, 2026, 1:58 PM PDTCurrent Connected Paid link$1,349.99
Sep 20, 2026, 8:00 AM PDTCurrent Connected Paid link$1,349.99
Sep 23, 2026, 4:53 AM PDTCurrent Connected Paid link$1,349.99
Sep 25, 2026, 2:32 AM PDTCurrent Connected Paid link$1,349.99
Sep 26, 2026, 3:31 AM PDTCurrent Connected Paid link$1,349.99
Sep 27, 2026, 4:32 AM PDTCurrent Connected Paid link$1,349.99
Sep 29, 2026, 2:02 AM PDTCurrent Connected Paid link$1,349.99
Oct 27, 2026, 9:08 PM PDTShopSolar Paid link$1,199
Oct 28, 2026, 1:26 AM PDTShopSolar Paid link$1,199
Oct 29, 2026, 1:16 AM PDTShopSolar Paid link$1,199
Oct 30, 2026, 1:26 AM PDTShopSolar Paid link$1,199
Oct 31, 2026, 1:27 AM PDTShopSolar Paid link$1,199
Nov 1, 2026, 1:07 AM PDTShopSolar Paid link$1,199
Nov 3, 2026, 1:06 AM PSTShopSolar Paid link$1,199
Nov 4, 2026, 1:06 AM PSTShopSolar Paid link$1,199
Nov 5, 2026, 1:06 AM PSTShopSolar Paid link$1,199
Nov 6, 2026, 1:07 AM PSTShopSolar Paid link$1,199
Nov 7, 2026, 1:17 AM PSTShopSolar Paid link$1,199
Nov 8, 2026, 1:16 AM PSTShopSolar Paid link$1,199
Nov 12, 2026, 1:26 AM PSTShopSolar Paid link$1,199
Nov 13, 2026, 1:06 AM PSTShopSolar Paid link$1,199
Nov 15, 2026, 12:06 AM PSTShopSolar Paid link$1,199

Quick reference sheet

Basic specs
5.12 kWhDischarge 200 ACharge 200 A
$ / rated kWh
$234.18* (Calculated: comparison price ÷ rated capacity (kWh))
Warranty
10 yearsSee terms
Lifetime production
Not published
Size
32.2 L* (Calculated enclosure volume: W × H × D in mm ÷ 1,000,000)W: 442 × H: 155 × D: 470 mm / W: 17.4 × H: 6.1 × D: 18.5 in45 kg / 99 lb0.16 kWh/L* (Rated or usable capacity shown on this card ÷ enclosure volume)

Evidence score

17/100Missing details40% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Cell model disclosure evidence needed.

24 V · Server rack · Rated capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term10 years13.33 / 20

10 years · 20% weight

10 of 15 years, the best documented for a home storage battery (printed by the maker): Blue Ion LX battery energy storage system (125 kW / 128 kWh)

Standard warranty headline; terms and exclusions require the exact warranty document.

66.7 / 100 × 20 = 13.33 points.

[1]

Lifetime / capacity6,000 cycles4 / 20

Cycle rating disclosed · 20% weight

Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.

20 × 0.2 = 4 points.

[1]

Research pending, 0 points: Certificates, Warranty energy disclosure, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.

Unknown: no certification evidence recorded in this data.

Warranty

FieldValueConditionsSource
Warranty term10 years
Standard warranty headline; terms and exclusions require the exact warranty document.
Where: Specification sheet warranty row
[1]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.
