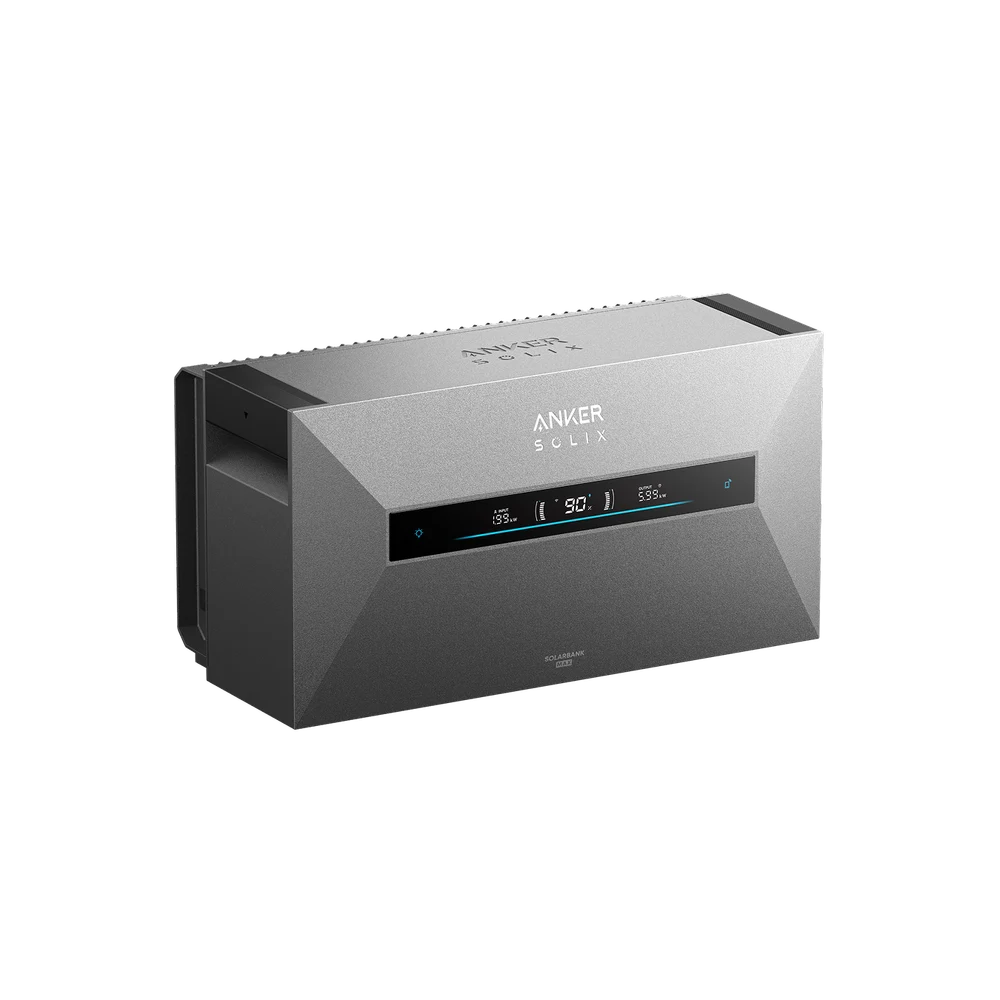

Anker SOLIX Solarbank Max AC (Germany)
Anker SOLIX
Integrated AC storage

Anker SOLIX Solarbank Max AC (Germany)

Key specs

Weight73 kg / 160 lb converted
Nominal energy7 kWh
Continuous output3.5 kW
System voltage400 V
Nominal voltage22.4 V
Cycle life10,000 cycles

1 spec not documented yet: usable energyHelp fill in ›

All specifications

Identity

BrandAnker SOLIX · Website
ModelSolarbank Max AC
MarketDE
Manufacturer SKUA17E23Z1
SKU detail
locator: Page structured product data (ld+json)
conditions: A17E23Z1 is the SKU in the German page's structured product data for the Solarbank Max AC; it is not printed in the visible page text.
Sources: [1]
FieldValueConditionsSource
ChemistryLiFePO4
Printed as "Wiederaufladbarer Li-Ionen-Akku (LFP)"; the product page prints "LFP 314Ah Akkutyp".
Where: PDF page 2, Akkusystem-Parameter, Akkutyp
[2] [1]
Weight73 kg / 160 lb converted
Printed as 73kg for the main unit alone; the other columns print 136kg to 388kg for the main unit with one to five expansion batteries. The product page prints "73kg Nettogewicht".
Where: PDF page 2, Allgemeine Parameter, Gewicht, first column
[2] [1]
Cycle life10,000 cycles
Printed as "Akkulebensdauer 10.000 Zyklen"; no test conditions are printed. The product page prints "10000 Zyklen; 10 Jahre Lebensdauer & Herstellergarantie".
Where: PDF page 2, Akkusystem-Parameter, Akkulebensdauer
[2] [1]
Power factor0,8 nacheilend - 0,8 voreilend
As printed (0.8 lagging to 0.8 leading) for the grid and AC backup ports.
Where: PDF page 2, Netzeingangs-/Ausgangsparameter, Leistungsfaktor
[2]
Self heatingActive heating down to -20°C, as printed on the product page
The page says: "Dank aktiver Heizung bis -20°C bleibt deine Investition zu 100% geschützt". No heater figures are printed.
Where: Product page, weather section
[1]
DimensionsW 356 × H 325 × L 670 mm / W 14 × H 12.8 × L 26.4 in converted
Printed as "Abmessungen (L x H x T) 670x356x325mm" for the main unit alone, in the maker's order length x height x depth (stored here in that order: 670, 356, 325). The product page prints "670 × 356 × 325mm Abmessungen".
Where: PDF page 2, Allgemeine Parameter, Abmessungen, first column
[2] [1]
Battery format
Stackable
Site classificationBased onOfficial product page
Details

Charged Reviews classified this product from the documents it is based on. It is our own grouping, not a manufacturer claim.

Printed as "Stapeln, verbinden, starten: In 5 Minuten einsatzbereit". Classified as Stackable from the maker's own words for this model.

Official product page: Anker SOLIX Solarbank Max AC Heimspeicher product page, ankersolix.com/de (September 29, 2026 capture)

Location: Anker SOLIX Solarbank Max AC Heimspeicher product page, ankersolix.com/de (September 29, 2026 capture), product description

CommunicationsWLAN; RS485
Printed as "Kommunikation WLAN/RS485".
Where: PDF page 2, Allgemeine Parameter, Kommunikation
[2]
Expansion notesExpands with up to five BP7000 expansion batteries (7kWh to 42kWh per main unit); the page also prints 126kWh for three parallel units.
The datasheet prints configurations "1" to "1 + 5" (main unit plus expansion batteries) at 7kWh to 42kWh. The product page prints "42kWh × 3 = 126kWh Maximale Speicherkapazität" and "(Drei parallele Einheiten)", and states the BP7000 is only compatible with the Solarbank Max AC.
Where: PDF page 2 system table; product page technical details and FAQ
[2] [1]
Cell capacity314 Ah
Printed as "Zellenkapazität 314Ah" (cell capacity).
Where: PDF page 2, Akkusystem-Parameter, Zellenkapazität
[2]
Enclosure ratingIP66
Printed as "Schutzart IP66"; the datasheet also prints "Schutzklasse I" and "Korrosionsschutzklasse C5-M".
Where: PDF page 2, Allgemeine Parameter, Schutzart
[2] [1]
Max AC charge3.5 kW
Printed as "Max. Eingangs- / Ausgangsleistung: 3,5kW Netzanschluss" (grid connection). The datasheet prints "Nenneingangsstrom 15,2A a.c."; its "Maximale Lade-/Entladeleistung" row prints "3,5kW 3,68/5kW" across the configuration columns without saying which column each figure belongs to, so it is not used.
Where: Technische Details - Solarbank Max AC
[1]
System voltage400 V
Battery terminal nominal; internal battery nominal is separately printed as 22.4 V.
Printed battery terminal nominal voltage 400 V d.c.; the same table separately prints battery/internal nominal 22.4 V d.c. and terminal/battery voltage range 360–450 V d.c. This is not PV input or AC output; no internal battery rating is replaced.
Where: Anker German Solarbank Max AC / BP7000 datasheet, PDF p2, Akkusystem-Parameter, Klemmen-Nennspannung
[2]
Transfer time10 ms
The FAQ says the unit switches automatically to off-grid mode "innerhalb von 10 Millisekunden" (within 10 milliseconds) during a power outage.
Where: FAQ, Stromausfall
[1]
Apparent power3,680 VA
Printed as "Maximale Ausgangsscheinleistung 3,68kVA" for the grid port; the AC backup port prints "Maximale kontinuierliche Ausgangsscheinleistung 3,68kVA".
Where: PDF page 2, Netzeingangs-/Ausgangsparameter, Maximale Ausgangsscheinleistung
Sources
Converted: 3.68 kVA x 1000 VA/kVA
[2]
Nominal voltage22.4 V
Printed as "Nennspannung 22,4V d.c." in the battery system parameters. The same table prints a separate terminal nominal voltage, "Klemmen-Nennspannung 400V d.c.", and a battery voltage range of 360-450V d.c.
Where: PDF page 2, Akkusystem-Parameter, Nennspannung
[2]
Surge AC output7,360 W
Printed as "Spitzenausgangsleistung (1s) 7.360W"; the 10-second peak is printed as 5.520W.
Where: PDF page 2, Netzeingangs-/Ausgangsparameter, Spitzenausgangsleistung (1s)
[2]
Cycle life dod100 %
Printed as "Entladetiefe 100%" (depth of discharge) in the battery system parameters, next to the cycle figure.
Where: PDF page 2, Akkusystem-Parameter, Entladetiefe
[2]
Nominal energy7 kWh
Printed as "Nennkapazität" (rated capacity) 7kWh for the configuration "1" (main unit only); the other columns print 14 to 42kWh for the main unit plus one to five expansion batteries. The product page prints "7kWh Nennleistung" and "7kWh Basisspeicher". The datasheet prints no usable-energy figure; it prints "Entladetiefe 100%".
Where: PDF page 2, system table, Nennkapazität, first column (1 main unit, no expansion battery)
[2] [1]
Operating voltage360 to 450 V
Printed as "Akkuspannungsbereich 360-450V d.c." (battery voltage range); the terminal nominal voltage is printed as 400V d.c.
Where: PDF page 2, Akkusystem-Parameter, Akkuspannungsbereich
[2]
Continuous output3.5 kW
Printed for the grid port as "Nennausgangswirkleistung 0,8/3,5kW" (rated active output power). The product page says the output is set to 800W by default on the Schuko plug and can be raised to up to 3500W in the app on a dedicated circuit (Wieland plug or hardwired).
Where: PDF page 2, Netzeingangs-/Ausgangsparameter, Nennausgangswirkleistung
[2] [1]
Continuous AC output3,500 W
Printed for the AC backup output as "Nennausgangswirkleistung 3,5kW" with "Nennausgangsstrom 16A a.c." and "Maximale kontinuierliche Ausgangsscheinleistung 3,68kVA".
Where: PDF page 2, AC-Backup-Ausgangsparameter, Nennausgangswirkleistung
Sources
Converted: 3.5 kW x 1000 W/kW
[2]
Operating temperature-20 to 55 °C / -4 to 131 °F converted
Printed as "-20 bis 55°C"; the product page prints "–20°C bis 55°C Betriebstemperatur".
Where: PDF page 2, Allgemeine Parameter, Betriebstemperaturbereich
[2] [1]
Other compliance claimsKorrosionsschutzklasse C5-M; Schutzklasse I; Überspannungskategorie III (NETZ), II (AKKU)As printed.
Where: PDF page 2, Allgemeine Parameter
[2]
Wireless communicationsWLAN; Bluetooth
The product page prints "WLAN, Bluetooth Konnektivität"; the datasheet lists WLAN/RS485 and does not mention Bluetooth.
Where: Technische Details - Solarbank Max AC
[1]
Max system nominal energy42 kWh
Printed as 42kWh for one main unit plus five expansion batteries ("1 + 5"). The product page FAQ says the Solarbank Max AC supports at most 5 BP7000 expansion batteries for a total capacity of up to 42kWh. The page also prints "42kWh × 3 = 126kWh Maximale Speicherkapazität"; that three-unit figure is kept in expansion_notes.
Where: PDF page 2, system table, Nennkapazität, last column (1 + 5)
[2] [1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Basic specs
7 kWhDischarge 3.5 kWCharge Unknown
$ / rated kWh
Unavailable
Warranty
10 yearsSee terms
Lifetime production
Not published
Size
77.52 L* (Calculated enclosure volume: W × H × D in mm ÷ 1,000,000)W: 356 × H: 325 × L: 670 mm / W: 14 × H: 12.8 × L: 26.4 in73 kg / 160 lb0.09 kWh/L* (Rated or usable capacity shown on this card ÷ enclosure volume)

Evidence score

17/100Missing details40% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Cell model disclosure evidence needed.

AC-coupled · Stackable · Usable capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term10 years13.33 / 20

10 years · 20% weight

10 of 15 years, the best documented for a home storage battery (printed by the maker): Blue Ion LX battery energy storage system (125 kW / 128 kWh)

Printed as "Garantie 10 Jahre"; the product page prints "10 Jahre Lebensdauer & Herstellergarantie". Warranty terms were not read.

66.7 / 100 × 20 = 13.33 points.

[2] [1]

Lifetime / capacity10,000 cycles4 / 20

Cycle rating disclosed · 20% weight

Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.

20 × 0.2 = 4 points.

[2] [1]

Research pending, 0 points: Certificates, Warranty energy disclosure, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.

Unknown: no certification evidence recorded in this data.

Warranty

FieldValueConditionsSource
Warranty term10 years
Printed as "Garantie 10 Jahre"; the product page prints "10 Jahre Lebensdauer & Herstellergarantie". Warranty terms were not read.
Where: PDF page 2, Allgemeine Parameter, Garantie
[2] [1]
