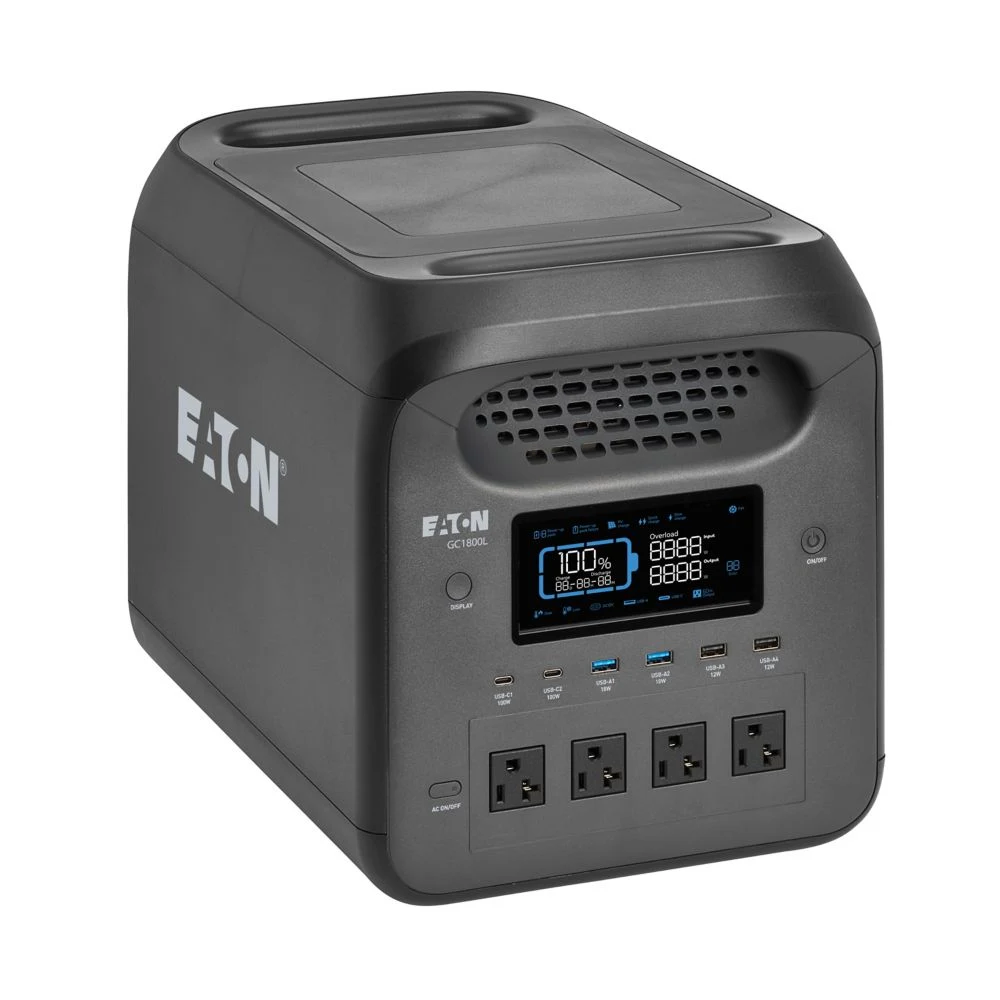

Eaton GC1800L
Eaton
Portable power station

Eaton GC1800L

Key specs

Capacity1,229 Wh Check note
AC output1,800 W
Weight19.4 kg / 42.8 lb converted Check note
Solar input400 W
Cycle life3,000 cycles Check note
Surge output3,000 W

1 spec not documented yet: usable capacityHelp fill in ›

All specifications

Identity

BrandEaton · Website
ModelGC1800L
MarketUS
Manufacturer SKUGC1800L
SKU detail
locator: SKU page, Catalog Number
conditions: Eaton's catalog number, printed as "Catalog Number GC1800L" (UPC 037332288547 on the same page).
Sources: [1]
FieldValueConditionsSource
PortsAC Output x4 (Inverter Mode) Pure Sine-Wave, Total 1800W (Peak 3000W), 120V~, 60 Hz, 15A; USB-A1/A2 5V DC 3A; 9V DC 2A; 12V DC 1.5A, 18W Max.; USB-A3/A4 5V DC 2.4A, 12W Max.; USB-C1/C2 5/9/12/15V DC 3A; 20V DC 5A, 100W Max.; Auxiliary Power Outlet* 12.6V DC 10A, 126W Max.; DC5521 Output X2* 12.6V DC 3A; PV (Photovoltaic/Solar) Charge 13-45V DC 12A, 400W Max.
Printed as "AC Output x4 (Inverter Mode) Pure Sine-Wave, Total 1800W (Peak 3000W), 120V~, 60 Hz, 15A"; "USB-A1/A2 5V DC 3A; 9V DC 2A; 12V DC 1.5A, 18W Max."; "USB-A3/A4 5V DC 2.4A, 12W Max."; "USB-C1/C2 5/9/12/15V DC 3A; 20V DC 5A, 100W Max."; "Auxiliary Power Outlet* 12.6V DC 10A, 126W Max."; "DC5521 Output X2* 12.6V DC 3A"; "PV (Photovoltaic/Solar) Charge 13-45V DC 12A, 400W Max." in Eaton GC1800L owner's manual (Publication No. 25-02-024 / 93-4AD8_RevC, February 2025), Owner's manual, 8. Specifications, Output and Input. Revised on 1 October 2026: The manual lists the outputs; the NEMA 5-20R outlet type is printed on the Eaton product page ("Outlets (4) 5-20R"), which should be cited for it.
Where: Owner's manual, 8. Specifications, Output and Input
[2]
ChemistryLiFePO4
Printed as "Battery Cell Type Lithium Iron Phosphate Battery (LiFePO4)".
Where: Manual, Specifications, Battery Cell Type
[2]
Weight19.4 kg / 42.8 lb converted Check note
Manual and SKU page print different weights. The GC1800L owner's manual and brochure print 42.7 lb (19.4 kg); the SKU page prints 35 lb.
Printed as "Net Weight 42.7 lb. (19.4 kg)"; the brochure prints the same.
Where: Manual, Specifications, General, Net Weight
Sources
15.88 kg

Printed as "Product Weight 35 lb" on the SKU page; 35 lb x 0.45359237 = 15.88 kg.

[1]
[2]
AC input1,500 W
Printed as "AC Input Power 1500W Max., 12A"; the table also prints "AC Charging Power 1380W Max."
Where: Manual, Specifications, Input, AC Input Power
[2]
Cycle life3,000 cycles Check note
Manual and SKU page print different cycle ratings. The GC1800L owner's manual and the brochure print 3,000 cycles; Eaton's SKU page prints 4000 cycles.
Printed as "Life Cycle 3,000 Cycles"; no end-of-life capacity is stated. The brochure prints "3000 charge/discharge cycles"; the SKU page prints "Battery Charge 4000 cycles".
Where: Manual, Specifications, Life Cycle
Sources
4,000 cycles

Printed as "Battery Charge 4000 cycles" on the SKU page.

[1]
[2]
AC output1,800 W
Printed as "Pure Sine-Wave, Total 1800W (Peak 3000W), 120V~, 60 Hz, 15A".
Where: Manual, Specifications, AC Output x4 (Inverter Mode)
[2]
Capacity24 Ah
Printed as "Battery Capacity 1229Wh, 51.2V DC, 24Ah".
Where: Manual, Specifications, Battery Capacity
[2]
Capacity1,229 Wh Check note
Manual and brochure print different capacities. The GC1800L owner's manual and SKU page print 1229 Wh; the January 2025 brochure prints 1228 Wh.
Printed as "Battery Capacity 1229Wh, 51.2V DC, 24Ah". The SKU page prints "Capacity (Wh) 1229"; the brochure prints "1800W (1228Wh capacity)".
Where: Manual, Specifications, Battery Capacity
Sources
1,228 Wh

Printed as "1800W (1228Wh capacity)" in the January 2025 brochure.

[3]
[2]
DimensionsW 270 × H 300 × L 432 mm / W 10.6 × H 11.8 × L 17 in converted
Printed as "Dimensions 17 x 10.6 x 11.8 in. (432 x 270 x 300 mm)".
Where: Manual, Specifications, General, Dimensions
[2]
Solar input400 W
Printed as "PV (Photovoltaic/Solar) Charge 13-45V DC 12A, 400W Max.".
Where: Manual, Specifications, Input, PV Charge
[2]
Surge output3,000 W
Printed as "Pure Sine-Wave, Total 1800W (Peak 3000W), 120V~, 60 Hz, 15A"; the peak duration is not stated.
Where: Manual, Specifications, AC Output x4 (Inverter Mode)
[2]
Maximum AC charging1.38 kW
Converted: 1380 W / 1000 W per kW
Printed as "AC Charging Power 1380W Max." in Eaton GC1800L owner's manual (Publication No. 25-02-024 / 93-4AD8_RevC, February 2025), Manual, Specifications, Input Charging, AC Charging Power. Revised on 1 October 2026: The manual prints "AC Charging Power 1380W Max.", a maximum.
Where: Manual, Specifications, Input Charging, AC Charging Power
Sources
Converted: 1380 W / 1000 W per kW
[2]
Max PV current12 A
Printed as "PV (Photovoltaic/Solar) Charge 13-45V DC 12A, 400W Max.".
Where: Manual, Specifications, Input, PV Charge
[2]
Transfer time14 ms
Printed as "the power station will automatically switch to inverter/battery mode within 14 ms. This function is a non-professional UPS function".
Where: Manual, 5.4 UPS Function
[2]
Nominal voltage51.2 V
Printed as "Battery Capacity 1229Wh, 51.2V DC, 24Ah".
Where: Manual, Specifications, Battery Capacity
[2]
Rated capacity1.23 kWh
Converted: 1229 Wh / 1000 Wh per kWh
1229 Wh expressed in kWh.
Where: Manual, Specifications, Battery Capacity
Sources
Converted: 1229 Wh / 1000 Wh per kWh
[2]
PV input voltage13 to 45 V
Printed as "PV (Photovoltaic/Solar) Charge 13-45V DC 12A, 400W Max.".
Where: Manual, Specifications, Input, PV Charge
[2]
AC output voltage120 V
Printed as "Pure Sine-Wave, Total 1800W (Peak 3000W), 120V~, 60 Hz, 15A".
Where: Manual, Specifications, AC Output x4 (Inverter Mode)
[2]
Charge temperature0 to 45 °C / 32 to 113 °F converted
Printed as "Charge Ambient Temperature 32~113°F (0~45°C)".
Where: Manual, Specifications, Operating Temperature
[2]
Continuous output1.8 kW
Converted: 1800 W / 1000 W per kW
1800 W expressed in kW.
Where: Manual, Specifications, AC Output x4 (Inverter Mode)
Sources
Converted: 1800 W / 1000 W per kW
[2]
Storage temperature-20 to 45 °C / -4 to 113 °F converted
Printed as "Storage Ambient Temperature -4°F~113°F (68~86°F preferred) -20~45°C (20°C~30°C preferred)".
Where: Manual, Specifications, Operating Temperature
[2]
Discharge temperature-20 to 45 °C / -4 to 113 °F converted
Printed as "Discharge Ambient Temperature -4~113°F (-20~45°C)".
Where: Manual, Specifications, Operating Temperature
[2]
Other compliance claimsFCC Class B; RoHS; CSA Std. C22.2; UL 1778
Printed as "Compliances FCC Class B RoHS Certifications CSA Std. C22.2 UL 1778".
Where: SKU page, Compliances and Certifications
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Battery capacity
1,229 WhValue needs confirmation: Manual and brochure print different capacitiesChemistry LiFePO4 · Cycle life 3,000 cycles
Rated AC output
1,800 WSurge AC output 3,000 W
Solar input limit
400 W
Solar input voltage
13-45 V
Weight
19.4 kg / 42.8 lbDimensions 270 W × 300 H × 432 L mm / 10.6 W × 11.8 H × 17 L in

Evidence score

8/100Missing details40% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Cell model disclosure evidence needed.

Power stations · 120 V AC · Rated capacity

The warranty term and the lifetime energy are each scored against the best documented value for a power station: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term2 years4 / 20

2 years · 20% weight

2 of 10 years, the best documented for a power station (printed by the maker): Briggs & Stratton PowerBank 5.4 battery powered generator (5.4 kWh, 1,600 W)

The warranty section is headed "2-Year Limited Warranty" and prints "for a period of two (2) years from the date of initial purchase".

20 / 100 × 20 = 4 points.

[2]

Lifetime / capacity3,000 cycles4 / 20

Cycle rating disclosed · 20% weight

Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.

20 × 0.2 = 4 points.

The maker's documents disagree; the less favorable printed figure, 3,000 cycles, is scored. Warning: Manual and SKU page print different cycle ratings

[2]

Research pending, 0 points: Certificates, Warranty energy disclosure, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.
CSA Std. C22.2manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
GC1800L
Limitations
Eaton's US SKU page for GC1800L prints, in its specification list, exactly: "Compliances FCC Class B RoHS Certifications CSA Std. C22.2 UL 1778". This row records "CSA Std. C22.2" as printed. No listing file number, certificate or issuer record was read. Manufacturer claim only.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
FCC Class Bmanufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
GC1800L
Limitations
Eaton's US SKU page for GC1800L prints, in its specification list, exactly: "Compliances FCC Class B RoHS Certifications CSA Std. C22.2 UL 1778". This row records "FCC Class B" as printed. No listing file number, certificate or issuer record was read. Manufacturer claim only.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
RoHSmanufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
GC1800L
Limitations
Eaton's US SKU page for GC1800L prints, in its specification list, exactly: "Compliances FCC Class B RoHS Certifications CSA Std. C22.2 UL 1778". This row records "RoHS" as printed. No listing file number, certificate or issuer record was read. Manufacturer claim only.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]
UL 1778manufacturer claimpresent at observation[1]
Scope
unresolved document set
Covered models
GC1800L
Limitations
Eaton's US SKU page for GC1800L prints, in its specification list, exactly: "Compliances FCC Class B RoHS Certifications CSA Std. C22.2 UL 1778". This row records "UL 1778" as printed. No listing file number, certificate or issuer record was read. Manufacturer claim only.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Not checked
Source
[1]

Warranty

FieldValueConditionsSource
RemedyRepair or replacement at Eaton's option
Printed as "Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products.".
Where: Manual, Warranty
[2]
Warranty term2 years
The warranty section is headed "2-Year Limited Warranty" and prints "for a period of two (2) years from the date of initial purchase".
Where: Manual, Warranty
[2]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.

Documents

  • Manuals

  • Eaton GC1800L owner's manual (Publication No. 25-02-024 / 93-4AD8_RevC, February 2025)Official · Eaton · Official instruction manual · February 2025 · PDF
    Source details
    Revision
    25-02-024 / 93-4AD8_RevC
    Revision date
    February 2025

    Captured by scripts/prepare-brand-sweep-sep21.mjs on 2026-09-26.

    Location: Specifications; Warranty

    Retrieved Sep 26, 2026

    Eaton's own owner's manual for the GC1800L, linked from the Eaton US SKU page and captured on September 26, 2026. Publication No. 25-02-024 / 93-4AD8_RevC, dated February 2025. Its Specifications and Warranty sections are the primary source for the figures recorded here. Manufacturer claims, not independent tests.

    Archived copies

    Archived copy of a document published by Eaton. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

    Archived backup25-02-024 / 93-4AD8_RevC · 5.20 MB

    Archived copy, unaltered, kept as a record of what Eaton published. Original address: https://www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/portable-power/portable-power-stations/manuals/eaton-portable-lithium-ion-power-stations-owners-manual-934AD8_gc1800l.pdf. Copyright and takedown

    Source first found
    This copy captured
    Archived
    File detailsOriginal source
    Embedded creation date
    Embedded modification date
    Pages
    32

    Embedded dates are file metadata, not independent proof of publication.

    SHA-256: 5b171c15bcfc18ea9e5050981aafef54b68a9f41f655b54016c82b231a40456e

    Open
  • Other documents

  • Eaton US SKU page, catalog number GC1800L (September 26, 2026 capture)Official · Eaton · Official product page · Web page
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Captured by scripts/prepare-brand-sweep-sep21.mjs on 2026-09-26.

    Location: Specifications list; product image

    Retrieved Sep 26, 2026

    Eaton's own US product (SKU) page for catalog number GC1800L, captured on September 26, 2026. It prints the catalog number, UPC, a specification list, compliances and certifications, and links the owner's manual and brochure. Where its figures differ from the owner's manual they are kept as alternatives. Manufacturer claims, not independent tests.

    Open

Archive and older revisions

Archive and older revisions1

Earlier revisions, archived captures and copies published by someone other than the manufacturer. Every one stays reachable.

Archived documents

Eaton GC1800L owner's manual (Publication No. 25-02-024 / 93-4AD8_RevC, February 2025)

Archived copy of a document published by Eaton. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

Archived backup25-02-024 / 93-4AD8_RevC · 5.20 MB

Archived copy, unaltered, kept as a record of what Eaton published. Original address: https://www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/portable-power/portable-power-stations/manuals/eaton-portable-lithium-ion-power-stations-owners-manual-934AD8_gc1800l.pdf. Copyright and takedown

Source first found
This copy captured
Archived
File detailsOriginal source
Embedded creation date
Embedded modification date
Pages
32

Embedded dates are file metadata, not independent proof of publication.

SHA-256: 5b171c15bcfc18ea9e5050981aafef54b68a9f41f655b54016c82b231a40456e

Eaton portable lithium-ion power stations product brochure BR153213EN (January 2025)

Archived copy of a document published by Eaton. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

Archived backupBR153213EN / 24-12-076 (January 2025) · 0.44 MB

Archived copy, unaltered, kept as a record of what Eaton published. Original address: https://www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/portable-power/portable-power-stations/resources/eaton-portable-lithium-ion-power-stations-brochure-br153213en.pdf. Copyright and takedown

Source first found
This copy captured
Archived
File detailsOriginal source
Embedded creation date
Embedded modification date
Pages
2

Embedded dates are file metadata, not independent proof of publication.

SHA-256: 2eb0eb36347cf9b63f2767a70171f76b89fb100777b9e88c945a3567045f904c

Submit a document

Parts and accessories

No sourced accessories or replacement parts listed yet.

Model history

Model identity

Model
GC1800L

Manufacturer SKU GC1800L · US market

No historical observations recorded yet.

Other recorded fields

FieldValueConditionsSource
Evidence breakdown
method version: 0.21-personal
documented pct: 40
basis: nominal
missing:
Certificates evidence needed
Warranty energy disclosure evidence needed
Cell model disclosure evidence needed
criteria:
key: certificateEvidence
label: Certificates
value: 0
unit: evidence points
shown: FCC Class B · RoHS +2
shown detail: Research pending
state: pending
points: 0
ceiling: 45
weight: 45
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: No qualifying applicable evidence recorded. This is not proof that certification is absent. Applies: UL 2743; UL 1973; CEC not applicable to portable power stations; UL 9540 not applicable to portable power stations.
display note: Unknown
Sources: No source on record
key: years
label: Warranty term
value: 2
unit: years
shown: 2 years
shown detail: Unknown
state: documented
points: 4
ceiling: 20
weight: 20
share: 20
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note:
display note: Unknown
Sources: [2]
key: throughputEvidence
label: Warranty energy disclosure
value: 0
unit: evidence points
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 10
weight: 10
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: No qualifying quantified warranty energy recorded. This is an evidence gap, not a performance judgment.
display note: Unknown
Sources: No source on record
key: lifetime
label: Lifetime / capacity
value: Unknown
unit: MWh/kWh
shown: 3,000 cycles
shown detail: Unknown
state: documented
points: 4
ceiling: 20
weight: 20
share: Unknown
covered: yes
missing: no
folded: no
reason: documents-disagree
reason text: The maker's documents disagree; the less favorable printed figure, 3,000 cycles, is scored. Warning: Manual and SKU page print different cycle ratings
note: Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.
display note: Unknown
Sources: [2]
key: cellDisclosure
label: Cell model disclosure
value: 0
unit: disclosure points
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 5
weight: 5
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: A sourced cell manufacturer and model are needed. Grade A, chemistry and cell capacity alone do not identify a cell model.
display note: Unknown
Sources: No source on record

Community discussions

No discussions linked yet. Search DIY Solar Forum

Sources

  1. Eaton US SKU page, catalog number GC1800L (September 26, 2026 capture) (Eaton · manufacturer · observed Sep 26, 2026)
  2. Eaton GC1800L owner's manual (Publication No. 25-02-024 / 93-4AD8_RevC, February 2025) (Eaton · manufacturer · 25-02-024 / 93-4AD8 RevC · observed Sep 26, 2026)
  3. Eaton portable lithium-ion power stations product brochure BR153213EN (January 2025) (Eaton · manufacturer · BR153213EN / 24-12-076 (January 2025) · observed Sep 26, 2026)

Sign in to report an error on this page

Similar products

All with a price

* Missing details
