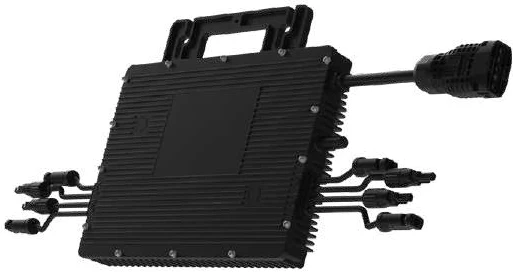

Hoymiles HMT-1800-4T-208-NA

Key specs

BrandHoymiles
ModelHMT-1800-4T-208-NA
MarketUS
Apparent power1,728 VA
Peak output1,800 VA
AC voltage configuration120/208 V three-phase (3Φ/PE/N, neutral optional), 183 to 228 V range, 60 Hz
MPPT voltage range16 to 60 V
Efficiency96.5 %
Weight5.8 kg / 13 lb converted

1 spec not documented yet

  • Continuous output
Help fill in ›

All specifications

Show all 27 specifications

Identity

BrandHoymiles · Website
ModelHMT-1800-4T-208-NA
MarketUS
Manufacturer SKUHMT-1800-4T-208-NA
About brandHoymiles Power Electronics makes microinverters, single- and three-phase hybrid inverters and module-level rapid shutdown hardware; its North American single-phase hybrid line is sold as the HYS-LV-USG1 series.
SKU detail
locator: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Model row, second column
conditions: Hoymiles' own model name, printed in the Model row of the brochure's Technical Specifications table ("Three-phase Microinverter Model HMT-1600-4T-208-NA HMT-1800-4T-208-NA HMT-2000-4T-208-NA") and in the page heading.
Sources: [1]
FieldValueConditionsSource
GroundingAC cables include earth wires for direct grounding; grounding clamps if external grounding is required
Printed as "The AC cables already include earth wires for direct grounding. Use the grounding clamps as shown on the right if external grounding is required." in Hoymiles's Hoymiles_Quick Installation Guide_HMT-1600&1800&2000-4T-208-NA Series_NA_EN_REV1.2 (PDF page 1). The manual applies to this model: Quick Installation Guide HMT-2000-4T-208-NA Series (Region: North America, REV1.2): "* Applicable for HMT-1600/1800/2000-4T-208-NA Microinverters".
Where: PDF page 1
[2]
Weight5.8 kg / 13 lb converted
Printed as "Weight (kg) 5.8", one cell shared by all three models.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Mechanical Data, Weight, one cell shared by all models
[1]
MPPT count2
Printed as "Number of MPPTs 2" with "Number of inputs per MPPT 2", one cell each shared by all 3 models.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Input Data (DC), Number of MPPTs, one cell shared by all models
[1]
Peak output1,800 VA
Printed as "Peak output power(VA) 1600 1800 2000" (HMT-1800-4T-208-NA column). The maker prints no duration for this peak; it is apparent power in VA, not W.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Output Data (AC), Peak output power (VA), HMT-1800-4T-208-NA column (second of 3)
[1]
Clearancesminimum 30 cm between the microinverter and the roof (communication); at least 2 cm around the microinverter (ventilation)
Printed as "Maintain a minimum 30 cm distance between the microinverter and the roof for optimal communication quality. If this isn't possible due to site constraints, maximize the separation between the microinverter and the roof. • Allow at least 2 cm of space around the microinverter for ventilation and heat dissipation." in Hoymiles's Hoymiles_Quick Installation Guide_HMT-1600&1800&2000-4T-208-NA Series_NA_EN_REV1.2 (PDF page 1). The manual applies to this model: Quick Installation Guide HMT-2000-4T-208-NA Series (Region: North America, REV1.2): "* Applicable for HMT-1600/1800/2000-4T-208-NA Microinverters".
Where: PDF page 1
[2]
DimensionsW 326 × H 222 × D 40.6 mm / W 12.8 × H 8.74 × D 1.6 in converted
Printed as "Dimensions (W × H × D [mm]) 326 × 222 × 40.6", width by height by depth, one cell shared by all three models.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Mechanical Data, Dimensions, one cell shared by all models
[1]
CommunicationsSub-1G
Printed as "Communication Sub-1G", one cell shared by all 3 models; the brochure says the Sub-1G wireless link communicates with the Hoymiles gateway DTU and names S-Miles Cloud for monitoring.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Features, Communication, one cell shared by all models
[1]
Efficiency96.5 %
Printed under the label "CEC peak efficiency". The brochure prints one CEC peak efficiency cell, 96.50%, shared by all three models. The brochure also prints a nominal MPPT efficiency of 99.80%, not recorded here. A manufacturer claim.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Efficiency, CEC peak efficiency, HMT-1800-4T-208-NA column (second of 3)
[1]
MPPT voltage16 to 60 V
The MPPT voltage range row prints 16 to 60 V (written with a dash), one cell shared by all 3 models.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Input Data (DC), MPPT voltage range (V), one cell shared by all models
[1]
Enclosure ratingOutdoor, IP67
Printed as "Outdoor-IP67", one cell shared by all 3 models.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Mechanical Data, Enclosure rating, one cell shared by all models
[1]
Max PV voltage65 V
Printed as "Maximum input voltage (V) 65", one cell shared by all 3 models.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Input Data (DC), Maximum input voltage (V), one cell shared by all models
[1]
Apparent power1,728 VA
Printed as "Maximum continuous output power(VA) 1440 1728 1918" (HMT-1800-4T-208-NA column), the maximum continuous output as apparent power in volt-amperes. Revised on 12 October 2026: this field held 1800 VA, the peak output power, which is now recorded under peak output.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Output Data (AC), Maximum continuous output power (VA), HMT-1800-4T-208-NA column (second of 3)
[1]
PV start voltage22 V
Printed as "Minimum/Maximum start-up voltage(V) 22/60", one cell shared by all three models; the minimum start-up voltage, 22 V, is recorded.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Input Data (DC), start-up voltage, one cell shared by all models
[1]
Certification claimsUL 1741; IEEE 1547; UL 1741 SB; CSA C22.2 No. 107.1-16; FCC 15B; FCC 15C
Compliance row as printed by Hoymiles, one cell shared by all 3 models: "UL 1741, IEEE 1547, UL 1741 SB, CSA C22.2 No. 107.1-16 FCC 15B, FCC 15C". The brochure also prints that the unit conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218 rapid shutdown of PV systems. Manufacturer claims; no certificate or listing directory was checked.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Features, Compliance, one cell shared by all models
[1]
Continuous outputNot in the documents we reviewed for this model.
MoreThe maker prints this output only as apparent power ("Maximum continuous output power(VA) 1440 1728 1918"), with no rating in W or kW, so the real power output stays unknown; the 1,728 VA figure is recorded under apparent power. Revised on 12 October 2026: this kilowatt field held 1.728 kVA; it is kept in this note.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Output Data (AC), Maximum continuous output power (VA), HMT-1800-4T-208-NA column (second of 3)
[1]
Max output current4.8 A
Printed as 4.8 A in the HMT-1800-4T-208-NA column of the row "Maximum continuous output current(A) 4 4.8 5.33"; the brochure prints one figure per model, at the "Nominal output voltage(V) 120/208" three-phase output.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Output Data (AC), Maximum continuous output current(A), HMT-1800-4T-208-NA column (second of 3)
[1]
Mounting orientationbeneath the PV module; label side up on the racking
Printed as "Always install the microinverter beneath the PV module to avoid direct exposure to rain UV, and other harmful weather events." in Hoymiles's Hoymiles_Quick Installation Guide_HMT-1600&1800&2000-4T-208-NA Series_NA_EN_REV1.2 (PDF page 1). The manual applies to this model: Quick Installation Guide HMT-2000-4T-208-NA Series (Region: North America, REV1.2): "* Applicable for HMT-1600/1800/2000-4T-208-NA Microinverters".
Where: PDF page 1
[2]
Ground terminal torque2 N·m
Printed as "Torque: 2 N·m/1.5 ft.-lb." in Hoymiles's Hoymiles_Quick Installation Guide_HMT-1600&1800&2000-4T-208-NA Series_NA_EN_REV1.2 (PDF page 1). The manual applies to this model: Quick Installation Guide HMT-2000-4T-208-NA Series (Region: North America, REV1.2): "* Applicable for HMT-1600/1800/2000-4T-208-NA Microinverters". Read from the figure on that page.
Where: PDF page 1
[2]
Max PV input current15 A
Printed as "4 × 15" in the HMT-1800-4T-208-NA column of the row "Maximum input current (A) 4 × 14 4 × 15 4 × 16": 4 inputs at 15 A each; the per-input figure is recorded.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Input Data (DC), Maximum input current (A), HMT-1800-4T-208-NA column (second of 3)
[1]
Max PV short circuit25 A
Printed as "4 × 25" in one cell shared by all models: 4 inputs at 25 A each; the per-input figure is recorded.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Input Data (DC), Maximum input short circuit current (A), one cell shared by all models
[1]
Operating temperature-40 to 65 °C / -40 to 149 °F converted
Printed as "Ambient temperature range (℃) -40 to +65", one cell shared by all three models; the storage temperature range is printed separately as -40 to +85 ℃.
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Mechanical Data, Ambient temperature range, one cell shared by all models
[1]
AC voltage configuration120/208 V three-phase (3Φ/PE/N, neutral optional), 183 to 228 V range, 60 Hz
The brochure prints "Grid Type 120/208, 3Φ/PE/N(Neutral optional)", a nominal output voltage of 120/208 V with a range of 183-228 V and a nominal frequency/range of 60/55-65 Hz, one cell each shared by all three models, and says the series is "Designed for North American grids with a three-phase Delta network." Footnote 1 reads "Nominal voltage/frequency range can vary depending on local requirements."
Where: Hoymiles' Product Brochure for North America, PDF page 13 (printed pages 24 and 25), Technical Specifications, Output Data (AC), nominal output voltage and frequency, HMT-1800-4T-208-NA column (second of 3)
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Evidence score

14/100Missing details45% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Warranty term needed; Battery conversion efficiency needed; Idle consumption needed.

Each input is scored against the best documented value for an inverter: warranty term and battery conversion efficiency against every published inverter, idle consumption (lower is better) against the inverters in the same output band, or against every published inverter when the output is not documented. A documented value always earns points; an undisclosed one earns 0 and is listed as missing. Researched products receive a score. Certificates earn points for the evidence itself. Size and weight do not affect scores.

CertificatesUL 1741 SB · CECClaimed14.2 / 45.0

Manufacturer claim; issuer verification pending. Applies to the exact inverter.

[3]

Research pending, 0 points: Warranty term, Battery conversion efficiency, Idle consumption.

Warranty term and battery conversion efficiency are compared with every published inverter; idle consumption with every published inverter because its output is not documented. · Method version 0.5

How it works

Certificates

A green check means we found this model, with that standard, on the certifier's own listing, the test lab's own report, or the California Energy Commission's equipment list.

What this shows: what each record says and how far it reaches. It does not mean the product is approved.
UL 1741 SBauthority listing reportedlisted as of snapshot[3]
Scope
equipment listing
Covered models
HMT-1800-4T-208-NA
Limitations
Listed on the California Energy Commission Grid Support Solar Inverter List (data unchanged since October 1, 2026; downloaded October 11, 2026) as Hoymiles Power Electronics Inc. "HMT-1800-4T-208-NA {208V}": UL 1741 SB, certifying entity CSA Group, certificate date 2023-09-11, CEC listing date 2024-02-01. A state equipment list entry, not the certification body's own record.
Record detail
Issued: Not stated
Valid from: Sep 11, 2023
Expiry: Not stated
Issuer checked: Oct 11, 2026
Source
[3]
CECauthority listing reportedlisted as of snapshot[3]
Scope
equipment listing
Covered models
HMT-1800-4T-208-NA
Limitations
Model HMT-1800-4T-208-NA listed on the California Energy Commission Grid Support Solar Inverter List (data unchanged since October 1, 2026; downloaded October 11, 2026) under Hoymiles Power Electronics Inc., as "HMT-1800-4T-208-NA {208V}", CEC listing date 2024-02-01. This is an equipment listing, not UL certification or complete-system approval.
Record detail
Issued: Not stated
Valid from: Feb 1, 2024
Expiry: Not stated
Issuer checked: Oct 11, 2026
Source
[3]

Warranty

Unknown: no warranty facts recorded.

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.
