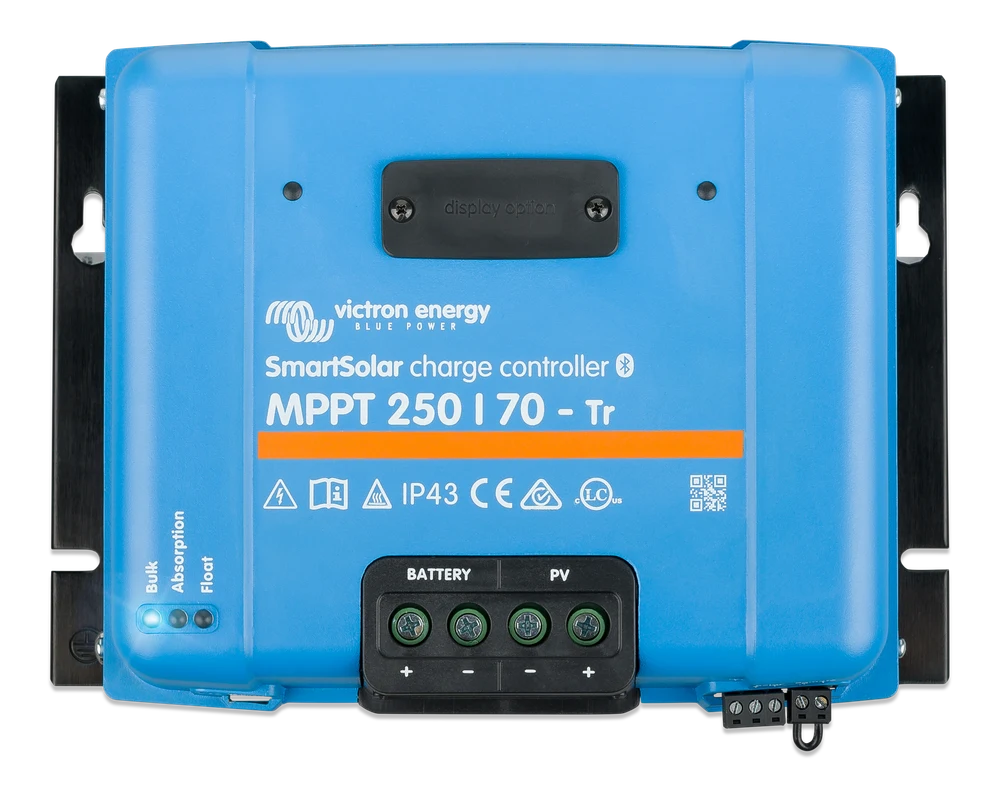

conditions: Printed in Victron Energy's own current product page's embedded product data as "sku":"SCC125070221","name":"SmartSolar MPPT 250/70-Tr", captured September 28, 2026. This build could not confirm the part number against that page's visible rendered text, since Victron's page publishes it only inside an embedded data script; Victron's own installation manual for this voltage class does not print a part number for this model in its Dimension Drawing captions (that section only names 150-series models).
Printed as "Safety EN/IEC 62109-1, UL 1741, CSA C22.2" in the STANDARDS rows of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026), one entry for every column of the table. Manufacturer claim as printed.
Where: PDF page 72, 9 Technical specifications, STANDARDS, Safety row
The solar charger can be installed in a positive or in a negative grounded system.; Apply a single ground connection, preferably close to the battery, to prevent system issues or ground loops.; The positive and negative of the PV array should not be grounded.; This charge controller must be used with an external GFDI device as required by the Article 690 of the USA National Electrical Code for the installation location.
Printed as "The solar charger can be installed in a positive or in a negative grounded system." in section 4.4 of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026), which also prints the other quoted sentences on PV array grounding and ground fault detection. The connection overview names a ground screw.
Printed as "Weight 3 kg" in Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026), read for this model's column. Re-cited on 1 October 2026 to the manufacturer's own document; previously cited to Victron Energy (victronenergy.com), which stays listed as an additional source.
Where: PDF page 72, 9 Technical specifications, Weight row
Printed as "PV terminals Tr models: 35 mm² / AWG2" in the ENCLOSURE rows of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026); this model is a Tr (screw terminal) model, and the figure is the PV terminal size.
Minimum clearance of 10cm under and above the solar charger
Printed as "Observe a minimum clearance of 10cm under and above the solar charger for optimal cooling." in section 4.1 of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026).
W 250 × H 185 × D 95 mm / W 9.84 × H 7.28 × D 3.7 in converted
Printed as "Tr models: 185 x 250 x 95 mm" in Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026); the recorded text is the Tr or MC4 entry for this model's column. Re-cited on 1 October 2026 to the manufacturer's own document; previously cited to Victron Energy (victronenergy.com), which stays listed as an additional source. The document labels the row "Dimensions (h x w x d)" and prints "185 x 250 x 95 mm" for this model. Revised on 13 October 2026: stored as text before; converted to numbers using the axis order the document prints (height x width x depth).
Where: PDF page 72, 9 Technical specifications, Dimensions (h x w x d) row
Provide a means to disconnect all current-carrying conductors of a photo-voltaic power source from all other conductors in a building or other structure.
Printed as "Provide a means to disconnect all current-carrying conductors of a photo-voltaic power source from all other conductors in a building or other structure." in section 4.3 of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026). No rating for the disconnect is printed.
Printed as "MPPT solar charger manual" on the cover of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026). Re-cited on 1 October 2026 to the manufacturer's own document; previously cited to Victron Energy (victronenergy.com), which stays listed as an additional source.
Printed as "MPPT 250/70 250V 70A 12, 24, 36 and 48V" in the section 2.1 table (PDF page 8) of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026), and in this model's column of the Maximum battery current row of chapter 9. Re-cited on 1 October 2026 to the manufacturer's own document; previously cited to Victron Energy (victronenergy.com), which stays listed as an additional source.
Where: PDF page 8, 2.1 table of solar chargers covered, this model's row; PDF page 72, 9 Technical specifications, Maximum battery current row
Printed as "250V absolute maximum coldest conditions 245V start-up and operating maximum" in Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026); the 245 V start-up and operating maximum is printed beside it. Re-cited on 1 October 2026 to the manufacturer's own document; previously cited to Victron Energy (victronenergy.com), which stays listed as an additional source.
Where: PDF page 72, 9 Technical specifications, Maximum PV open circuit voltage row
12/24/48 V Auto Select (software tool needed to select 36 V)
Printed as "Battery voltage 12 / 24 / 48 V Auto Select (software tool needed to select 36 V)", applying to both rated currents, captured September 28, 2026.
Printed as "Battery terminals 35 mm² / AWG2" in the ENCLOSURE rows of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026), one entry for every column; this is the battery terminal size. Section 1.2 (PDF page 6) asks for flexible multi-stranded copper cable.
Printed as "The battery supply must be protected by a fuse as per the below table." in section 4.2 of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026), with the row "MPPT 150/70 and 250/70 80A 100A" under the columns "Minimum battery fuse rating" and "Maximum battery fuse rating". The manual adds "For Canada the battery fuse must comply with the C22.2 standards."
Where: PDF page 15, 4.2 Battery, fuse table, MPPT 150/70 and 250/70 row
Printed as "IMPORTANT: Torque the battery and PV connections at 2.4Nm." in section 4.6 of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026); one figure for the battery and PV connections, recorded on both the PV and the battery terminal keys. Printed unit spelling "Nm".
Where: PDF page 18, 4.6 Electrical connections, IMPORTANT note
Printed as "D VE.Direct socket." in the connection overview of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026). The same list also names relay screw terminals and remote on/off terminals; Bluetooth is built in.
Where: PDF page 17, 4.5 Connection overview, ID Description list
Gel long life (OPzV), Gel Exide A600 (OPzV), Gel MK, Gel Victron deep discharge, Gel Exide A200, AGM Victron deep discharge, Stationary tubular plate (OPzS), AGM spiral cell, Rolls AGM, PzS tubular plate traction batteries or OPzS batteries, Lithium Iron Phosphate (LiFePo4) batteries
Printed as "Lithium Iron Phosphate (LiFePo4) batteries" (rotary switch position 7) in Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026), section 5.1.2; the other names are the suggested battery types printed for positions 0 to 6 of the same table, which applies to every model the manual covers. Listed in the table's order; the app also allows a user defined algorithm.
Where: PDF pages 21 and 22, 5.1.2 Settings via the rotary switch, Suggested battery type column
Printed in the "Nominal PV power" rows of Victron Energy's SmartSolar MPPT 250/60 and 250/70 datasheet, this model's column: 1000 W at 12 V / 2000 W at 24 V / 3000 W at 36 V / 4000 W at 48 V. Footnote 1a) of the same table: "If more PV power is connected, the controller will limit input power." The controller limits its input to this figure, so it is the maximum PV input power the controller uses. Manufacturer claim, captured September 28, 2026.
Where: Specifications table, Nominal PV power rows, this model's column
Vertically on a non-flammable substrate, with the electrical terminals facing downwards
Printed as "Mount the solar charger vertically on a non-flammable substrate, with the electrical terminals facing downwards." in section 4.1 of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026). The same section adds "Mount the solar charger within 3 meters from the battery, but never directly above the battery."
Printed as "IMPORTANT: Torque the battery and PV connections at 2.4Nm." in section 4.6 of Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026); one figure for the battery and PV connections, recorded on both the PV and the battery terminal keys. Printed unit spelling "Nm".
Where: PDF page 18, 4.6 Electrical connections, IMPORTANT note
Printed as "Peak efficiency 99%" in Victron Energy's MPPT solar charger manual SmartSolar MPPT 150/60 up to 250/70 (Rev 12 - 06/2026), one entry for every column of the table. Re-cited on 1 October 2026 to the manufacturer's own document; previously cited to Victron Energy (victronenergy.com), which stays listed as an additional source.
Where: PDF page 72, 9 Technical specifications, Peak efficiency row
Lowest first. Each price is the date we last read it; it may have changed. Stock isn't shown.
Store
Price
Read
Details
Source
SanTan Solar
$478.55
Nov 15, 2026
One unit as listed by SanTan Solar on October 15, 2026; tax and shipping excluded. Not refreshed automatically yet. · Store SKU SCC125070221Price readings (19)
12/24/48 V Auto Select (software tool needed to select 36 V)
Maximum PV input power
1000 W (12 V) / 2000 W (24 V) / 3000 W (36 V) / 4000 W (48 V)
Peak efficiency
Not stated
Evidence score
This category has no Evidence score.
Certificates
What this shows: what each record says and how far it reaches. It does not mean the product is approved.
StandardEvidenceStatusSource
EN/IEC 62109-1manufacturer claimpresent at observation[3]
Scope
unresolved document set
Covered models
MPPT 250/60; MPPT 250/70
Limitations
Victron Energy's own range datasheet prints "Safety EN/IEC 62109-1, UL 1741, CSA C22.2" under STANDARDS for this model family, captured September 28, 2026. Recorded as printed: no certificate number or issuing body file number is given, so it is a manufacturer claim and not issuer-verified.
UL 1741manufacturer claimpresent at observation[3]
Scope
unresolved document set
Covered models
MPPT 250/60; MPPT 250/70
Limitations
Victron Energy's own range datasheet prints "Safety EN/IEC 62109-1, UL 1741, CSA C22.2" under STANDARDS for this model family, captured September 28, 2026. Recorded as printed: no certificate number or issuing body file number is given, so it is a manufacturer claim and not issuer-verified.
CSA C22.2manufacturer claimpresent at observation[3]
Scope
unresolved document set
Covered models
MPPT 250/60; MPPT 250/70
Limitations
Victron Energy's own range datasheet prints "Safety EN/IEC 62109-1, UL 1741, CSA C22.2" under STANDARDS for this model family, captured September 28, 2026. Recorded as printed: no certificate number or issuing body file number is given, so it is a manufacturer claim and not issuer-verified.
Location: PDF page 1 cover and PDF page 8, 2.1 table of solar chargers covered by this manual
Retrieved Oct 1, 2026
Victron Energy's own installation and user manual for the SmartSolar MPPT 150/60 up to 250/70 solar chargers, captured 1 October 2026 from victronenergy.com; Rev 12 - 06/2026 as printed; its section 2.1 table names the MPPT 150/60, 150/70, 250/60 and 250/70, each as a Tr or MC4 version. Manufacturer instructions, not independent tests.
Archived copies
Archived copy of a document published by Victron Energy. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].
EN/IEC 62109-1Manufacturer claim · unresolved document setClaimedListed when checked
Victron Energy's own range datasheet prints "Safety EN/IEC 62109-1, UL 1741, CSA C22.2" under STANDARDS for this model family, captured September 28, 2026. Recorded as printed: no certificate number or issuing body file number is given, so it is a manufacturer claim and not issuer-verified.
UL 1741Manufacturer claim · unresolved document setClaimedListed when checked
Victron Energy's own range datasheet prints "Safety EN/IEC 62109-1, UL 1741, CSA C22.2" under STANDARDS for this model family, captured September 28, 2026. Recorded as printed: no certificate number or issuing body file number is given, so it is a manufacturer claim and not issuer-verified.
CSA C22.2Manufacturer claim · unresolved document setClaimedListed when checked
Victron Energy's own range datasheet prints "Safety EN/IEC 62109-1, UL 1741, CSA C22.2" under STANDARDS for this model family, captured September 28, 2026. Recorded as printed: no certificate number or issuing body file number is given, so it is a manufacturer claim and not issuer-verified.
Victron Energy's own range datasheet for this family, fetched directly from victronenergy.com/upload/documents/, captured September 28, 2026. Its own specifications table prints one column per rated current (250/60, 250/70) and separately distinguishes Tr (screw terminal) from MC4 connector variants for PV terminals and dimensions; this build reads each model's own current column and its own connector row only. Fetched and read in full.
Archived copies
Archived copy of a document published by Victron Energy. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].
Captured by scripts/prepare-brand-sweep-sep21.mjs on 2026-09-28.
Location: Embedded product data (skus array, is_eol_sku and replacement_skus fields); images/thumbnails array
Retrieved Sep 28, 2026
Victron Energy's own product page on victronenergy.com titled "SmartSolar MPPT 150/60 up to 250/70", captured September 28, 2026. Its own embedded product data lists the current, non-discontinued part number for each Tr and MC4 variant of the 150/60, 150/70, 250/60 and 250/70 models (marking superseded part numbers is_eol_sku:true with a replacement_skus chain, which this build follows to the current SKU), and a shared product photograph; used here only for manufacturer_sku and the photograph, not for any spec figure. No live SKU is printed on this page for a 150/70-MC4 or 250/70-MC4 variant, so those variants are not recorded.
