Timeusb
DC battery module

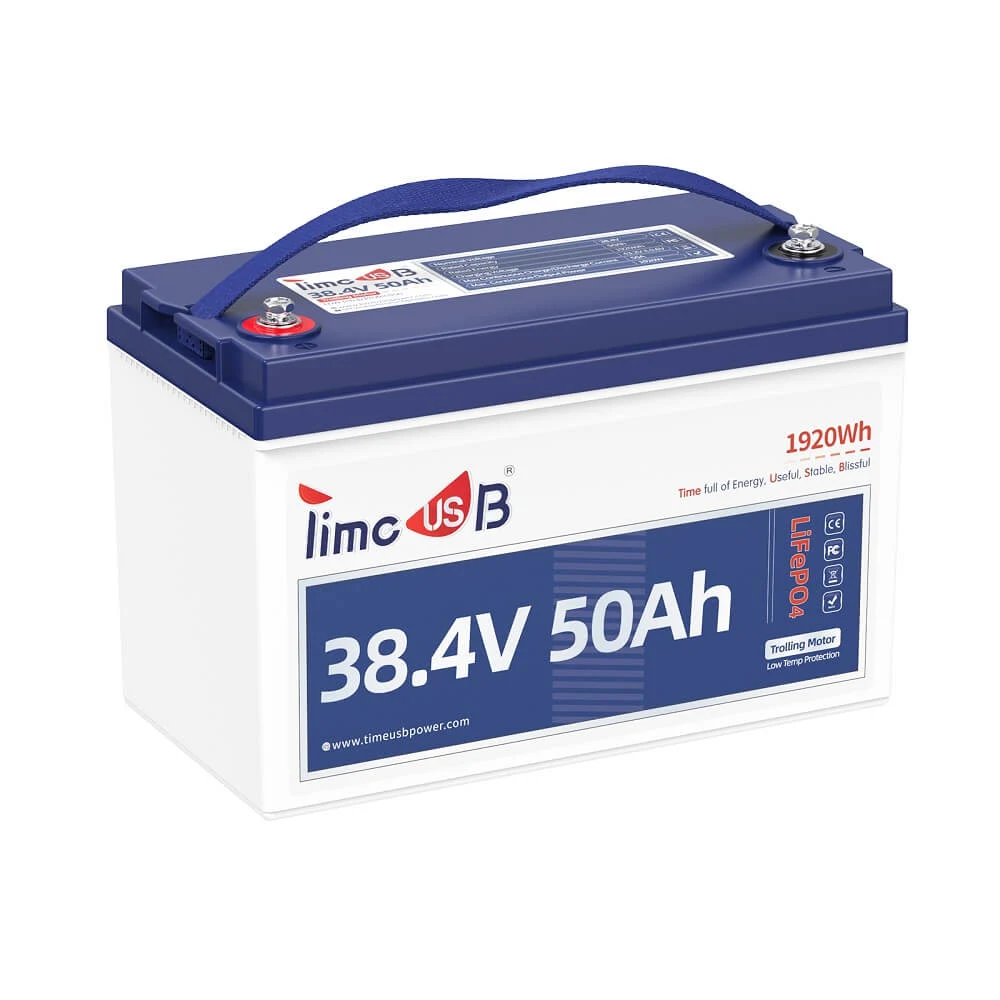

Timeusb 36V 50Ah Lithium Trolling Motor Battery

Key specs

Nominal voltage38.4 V
Capacity50 Ah
Weight14.95 kg / 32.96 lb converted
Nominal energy1.92 kWh
Converted: 1920 Wh x 0.001 = 1.92 kWh
Cycle life4,000 cycles
Continuous discharge50 A

1 spec not documented yet: usable energyHelp fill in ›

All specifications

Identity

BrandTimeusb · Website
ModelT36V50-50-TM-12-A100
MarketUnknown
Manufacturer SKUT36V50-50-TM-12-A100
About brandTimeusb sells 12V, 24V, 36V and 48V LiFePO4 batteries, including trolling motor, RV, solar and golf cart batteries, along with LiFePO4 battery chargers and a solar charge controller, through its own store at timeusbpower.com.
SKU detail
locator: Product data, variants[0] ("1 Pack"), "sku" field; the product page's variant data (its hidden "Product JSON" field)
conditions: Printed as "sku":"T36V50-50-TM-12-A100" for the "1 Pack" variant in Timeusb's product JSON and in the variant data of its product page, captured October 18, 2026. The 2 Pack and 4 Pack variants carry the same code with a "-pack2" or "-pack4" suffix.
Sources: [1] [2]
FieldValueConditionsSource
Gtin617230902273
Timeusb's product JSON prints barcode 617230902273 for the "1 Pack" variant, SKU T36V50-50-TM-12-A100, captured October 18, 2026. The 2 Pack and 4 Pack variants carry separate codes; no code is carried to another variant.
Where: Product data, variants[0] ("1 Pack"), "barcode" field
[1]
ChemistryLiFePO4 Prismatic
Printed as "Cell Type: LiFePO4 Prismatic" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. Timeusb names no cell maker or cell model.
Where: Technical Details table, BATTERY section, "Cell Type" row
[2]
TerminalsM8 bolts
Printed as "Terminals: M8 bolts" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. No terminal torque is printed.
Where: Technical Details table, OTHERS section, "Terminals" row
[2]
Use casesMarine
Timeusb prints "Timeusb 36V Lithium Trolling Motor Battery 50Ah with Low-Temp Protection, Deep Cycle Marine Battery" and "Ideal for use with up to 120 lbs 36V trolling motors and electric outboard". The label is the maker's own word: Marine from "Deep Cycle Marine Battery" and "trolling motors".
Where: Product heading; feature list
[2]
Weight14.95 kg / 32.96 lb converted
Printed as "Weight Approx.: 32.96 lbs" in the Technical Details table on Timeusb's own product page, captured October 18, 2026; the feature list prints the same "weight of only 32.96 lbs". Timeusb prints pounds only, converted to kilograms; it calls the figure approximate and prints no tolerance.
Where: Technical Details table, OTHERS section, "Weight Approx." row
Sources
Converted: 32.96 lb x 0.45359237 kg/lb, rounded to 0.01 kg
[2]
Cycle life4,000 cycles
Timeusb prints "4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD"
Printed as "Cycle Life: 4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. The figure at 100% depth of discharge is recorded; Timeusb prints no C-rate, temperature or end-of-life capacity for it.
Where: Technical Details table, BATTERY section, "Cycle Life" row
[2]
Capacity50 Ah
Printed as "Rated Capacity: 50Ah" in the Technical Details table on Timeusb's own product page, captured October 18, 2026.
Where: Technical Details table, BATTERY section, "Rated Capacity" row
[2]
BMS current50 A
Printed as "BMS: 50A" in the Technical Details table on Timeusb's own product page, captured October 18, 2026; the feature list also prints "equipped with a 50A BMS".
Where: Technical Details table, BMS section, "BMS" row
[2]
Case materialABS
Printed as "Housing Material: ABS" in the Technical Details table on Timeusb's own product page, captured October 18, 2026.
Where: Technical Details table, OTHERS section, "Housing Material" row
[2]
DimensionsW 172 × H 215.9 × L 330.2 mm / W 6.77 × H 8.5 × L 13 in
Printed as "Size: L13 x W6.77 x H8.5 in." in the Technical Details table on Timeusb's own product page, captured October 18, 2026; the feature list prints the same "L13 x W6.77 x H8.5 inch". Timeusb prints inches only, converted to millimeters in its own L x W x H order.
Where: Technical Details table, OTHERS section, "Size" row
Sources
Converted: 13 x 6.77 x 8.5 in x 25.4 mm/in, rounded to 0.1 mm
[2]
Enclosure ratingIP65
Printed as "Protection Class: IP65" in the Technical Details table on Timeusb's own product page, captured October 18, 2026; the feature list prints "IP65 Waterproof for Trolling Motor". Ingress rating as claimed; no test report was read.
Where: Technical Details table, OTHERS section, "Protection Class" row
[2]
Maximum charge50 A
Printed as "Max. Continuous Charge Current: 50A" in the Technical Details table on Timeusb's own product page, captured October 18, 2026.
Where: Technical Details table, BMS section, "Max. Continuous Charge Current" row
[2]
Peak discharge250 A
Printed as "Surge Discharge Current (1 Second): 250A" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. Timeusb qualifies the figure as lasting 1 second; no temperature or state of charge is printed.
Where: Technical Details table, BMS section, "Surge Discharge Current (1 Second)" row
[2]
Nominal voltage38.4 V
Printed as "Nominal Voltage: 38.4V" in the Technical Details table on Timeusb's own product page, captured October 18, 2026.
Where: Technical Details table, BATTERY section, "Nominal Voltage" row
[2]
Cycle life dod100 %
The depth of discharge the recorded cycle count is quoted at, read from the same row: "4000 cycles at 100% DOD".
Where: Technical Details table, BATTERY section, "Cycle Life" row
[2]
Max parallel units4 count
Printed as "Max. Expansion (Parallel & Series): 4P (36V 200Ah)" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. The row prints a parallel limit only; no series count is printed, so none is recorded.
Where: Technical Details table, BATTERY section, "Max. Expansion (Parallel & Series)" row
[2]
Nominal energy1.92 kWh
Converted: 1920 Wh x 0.001 = 1.92 kWh
Printed as "Energy: 1920Wh" in the Technical Details table on Timeusb's own product page, captured October 18, 2026.
Where: Technical Details table, BATTERY section, "Energy" row
Sources
Converted: 1920 Wh x 0.001 = 1.92 kWh
[2]
Continuous charge50 A
Printed as "Max. Continuous Charge Current: 50A" in the Technical Details table on Timeusb's own product page, captured October 18, 2026.
Where: Technical Details table, BMS section, "Max. Continuous Charge Current" row
[2]
Maximum discharge50 A
Printed as "Max. Continuous Discharge Current: 50A" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. Timeusb also prints 60A for up to 30 minutes and 250A for 1 second, recorded under the continuous discharge conditions and the peak discharge current.
Where: Technical Details table, BMS section, "Max. Continuous Discharge Current" row
[2]
Charge temperature0 to 50 °C / 32 to 122 °F converted Check note
Timeusb's page prints two charge temperature ranges. The Technical Details table on Timeusb's product page prints "Charge Temperature: 32℉ to 122℉ (0℃ to 50℃)", while the FAQs on the same page say the battery "can charge between 32°F to 113°F (0°C to 45°C)". Timeusb publishes no manual to settle it; the table value is shown.
Printed as "Charge Temperature: 32℉ to 122℉ (0℃ to 50℃)" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. The same page's FAQs print a narrower range, "can charge between 32°F to 113°F (0°C to 45°C)"; the specification table is recorded and the FAQ figure is kept here.
Where: Technical Details table, TEMPERATURE section, "Charge Temperature" row
[2]
Max charge voltage43.2 V
Printed as "Charge Voltage: 43.2V ± 0.6V" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. The central figure is recorded, as for the comparable LiTime and Redodo records; the printed tolerance is kept in this note. The table also prints "Charge Method: CC/CV".
Where: Technical Details table, CHARGE section, "Charge Voltage" row
[2]
Recommended charge10 A
Printed as "Recommend Charge Current: 10A (0.2C)" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. Timeusb's recommendation, not a limit.
Where: Technical Details table, CHARGE section, "Recommend Charge Current" row
[2]
Storage temperature-10 to 50 °C / 14 to 122 °F converted
Printed as "Storage Temperature: 14℉ to 122℉ (-10℃ to 50℃)" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. No state of charge for storage is printed.
Where: Technical Details table, TEMPERATURE section, "Storage Temperature" row
[2]
Continuous discharge50 A
Printed as "Max. Continuous Discharge Current: 50A" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. The next row prints a time-limited figure, "Max. Continuous Discharge Current (30mins): 60A", and the feature list prints "upgraded 1.2C (60A) discharge capability, ensuring continuous power output for up to 30 minutes at 60A"; that 30-minute figure is not recorded as the continuous rating.
Where: Technical Details table, BMS section, "Max. Continuous Discharge Current" rows
[2]
Max discharge power1.92 kW
Converted: 1920 W x 0.001 = 1.92 kW
Printed as "Max. Continuous Output Power: 1920W" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. A DC battery output figure, not AC inverter power.
Where: Technical Details table, BMS section, "Max. Continuous Output Power" row
Sources
Converted: 1920 W x 0.001 = 1.92 kW
[2]
Discharge temperature-20 to 60 °C / -4 to 140 °F converted
Printed as "Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)" in the Technical Details table on Timeusb's own product page, captured October 18, 2026.
Where: Technical Details table, TEMPERATURE section, "Discharge Temperature" row
[2]
Other compliance claimsFCC/UL1973
Printed as "Certifications: FCC/UL1973" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. Manufacturer claim only: no certificate number, issuing body or file reference is published, and no issuer record was read.
Where: Technical Details table, BATTERY section, "Certifications" row
[2]
Intended use restrictionNot suitable for water pumps, electric jacks, electric stackers or lifts, pool vacuums or similar loads
Printed as "This battery is not suitable for water pumps, electric jacks, electric stackers/lifts, pool vacuums, or similar loads." on Timeusb's own product page, captured October 18, 2026.
Where: Product Description tab, NOTE
[2]
Internal resistance40 mΩ
Printed as "Internal Resistance: ≤ 40mΩ" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. Printed as an upper bound ("≤"); no state of charge or measuring method is printed.
Where: Technical Details table, BATTERY section, "Internal Resistance" row
[2]
Low temperature charge cutoffyes
Printed as "Low-Temperature Protection: 32℉ (0℃)" in the Technical Details table on Timeusb's own product page, captured October 18, 2026; the feature list prints "Low-Temperature Cut-off Protection: prevents charging below 32℉/0°C".
Where: Technical Details table, TEMPERATURE section, "Low-Temperature Protection" row; feature list
[2]
Low temperature charge cutoff0 °C / 32 °F converted
Printed as "Low-Temperature Protection: 32℉ (0℃)" in the Technical Details table on Timeusb's own product page, captured October 18, 2026. Charging resumes at the printed "Low-Temperature Charging Protection Auto Recovery: 41℉ (5℃)". A protection threshold, not an operating range.
Where: Technical Details table, TEMPERATURE section, "Low-Temperature Protection" and "Low-Temperature Charging Protection Auto Recovery" rows
[2]
Low temperature discharge cutoff-20 °C / -4 °F converted
Printed as "Low-Temperature Cut-off Protection: prevents charging below 32℉/0°C, discharging below -4℉/ -20℃" in the feature list on Timeusb's own product page, captured October 18, 2026. It matches the low end of the printed "Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)". A protection threshold, not an operating range.
Where: Feature list, "Low-Temperature Cut-off Protection"
[2]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Basic specs
1.92 kWh* (1920 Wh x 0.001 = 1.92 kWh)Discharge 50 ACharge 50 APeak current: 250 A
$ / rated kWh
Unavailable
Warranty
5 yearsSee terms
Lifetime production
Not published
Size
12.26 L* (Calculated enclosure volume: W × H × D in mm ÷ 1,000,000)W: 172 × H: 215.9 × L: 330.2 mm / W: 6.77 × H: 8.5 × L: 13 in14.95 kg / 32.96 lb0.16 kWh/L* (Rated or usable capacity shown on this card ÷ enclosure volume)

Evidence score

9/100Missing details40% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Cell model disclosure evidence needed.

36 V · Format not recorded · Rated capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term5 years5 / 20

5 years · 20% weight

5 of 20 years, the best documented for a small DC battery (printed by the maker): Bioenno Power 6V 3Ah LiFePO4 Battery (PVC, BLF-0603W)

Printed as "Warranty: 5 Years" in the Technical Details table on Timeusb's own product page for this battery, captured October 18, 2026. Timeusb's warranty policy terms were not captured, so no remedy, start date or conditions are recorded.

25 / 100 × 20 = 5 points.

[2]

Lifetime / capacity4,000 cycles4 / 20

Cycle rating disclosed · 20% weight

Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.

20 × 0.2 = 4 points.

[2]

Research pending, 0 points: Certificates, Warranty energy disclosure, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.
UL 1973manufacturer claimpresent at observation[2]
Scope
battery pack scope unverified
Covered models
T36V50-50-TM-12-A100
Limitations
A manufacturer claim, not a listing or certificate. Printed as "Certifications: FCC/UL1973" in the BATTERY block of Technical Details (38.4V, 50Ah, 1920Wh) on Timeusb's own product page for the 36V 50Ah Lithium Trolling Motor Battery (timeusbpower.com, variant SKU T36V50-50-TM-12-A100), captured October 18, 2026. The page does not say whether the claim covers the cells or the assembled battery. No issuer, certificate or report number is printed; the issuer's record was not checked.
Record detail
Issued: Not stated
Valid from: Not stated
Expiry: Not stated
Issuer checked: Oct 18, 2026
Source
[2]

Warranty

FieldValueConditionsSource
Warranty term5 years
Printed as "Warranty: 5 Years" in the Technical Details table on Timeusb's own product page for this battery, captured October 18, 2026. Timeusb's warranty policy terms were not captured, so no remedy, start date or conditions are recorded.
Where: Technical Details table, BATTERY section, "Warranty" row
[2]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.

Documents

  • Other documents

  • Timeusb product page: Timeusb 36V Lithium Trolling Motor Battery 50Ah with Low-Temp Protection, Deep Cycle Marine Battery (captured October 18, 2026)Official · Timeusb · Official product page · Web page
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Archived copy captured on 2026-10-18.

    Location: Product heading; feature list; Technical Details table; FAQs

    Retrieved Oct 18, 2026

    Timeusb's own store product page, captured October 18, 2026 with the paced research fetcher; the content is whatever the address served on that date. The page offers "1 Pack", "2 Pack" and "4 Pack" variants; values are read from its Technical Details table, feature list and FAQs. The page links no manual or data sheet and carries no revision date. Manufacturer statements, not independent tests.

    Open

Submit a document

Parts and accessories

No sourced accessories or replacement parts listed yet.

Model history

Model identity

Model
T36V50-50-TM-12-A100

Manufacturer SKU T36V50-50-TM-12-A100

  1. Observed Oct 18, 2026

    UL 1973: claimed

    Battery pack claim; verification pending. A manufacturer claim, not a listing or certificate. Printed as "Certifications: FCC/UL1973" in the BATTERY block of Technical Details (38.4V, 50Ah, 1920Wh) on Timeusb's own product page for the 36V 50Ah Lithium Trolling Motor Battery (timeusbpower.com, variant SKU T36V50-50-TM-12-A100), captured October 18, 2026. The page does not say whether the claim covers the cells or the assembled battery. No issuer, certificate or report number is printed; the issuer's record was not checked.

    [2]
