Charged Reviews · Quick reference

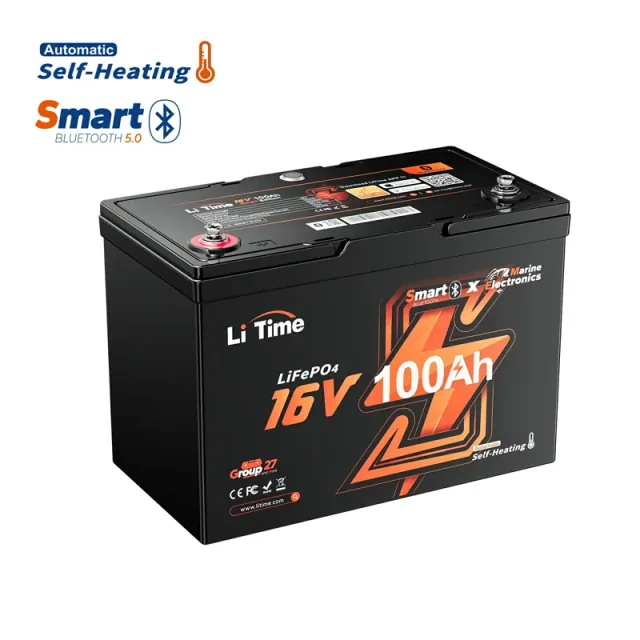

LiTime 16V 100Ah Lithium Battery for LiveScope & Fish Finder Systems with Bluetooth and Self-Heating

Brand
LiTime
Model
L16V100-100-MELE-HEAT-BT-5-A90
SKU / part number
L16V100-100-MELE-HEAT-BT-5-A90 [1]
Category
Batteries

chargedreviews.com/batteries/litime-l16v100-100-mele-heat-bt-5-a90

Energy and chemistry

Nominal voltage
16 V [2]
Rated capacity
100 Ah [2]
Nominal energy
1.6 kWh [2]
Usable energy
?
Chemistry
LiFePO4 [2]
Cell format
?

Charge and discharge

Continuous charge current
100 A [2]
Continuous discharge current
100 A [2]
Maximum charge current
100 A [2]
Maximum discharge current
100 A [2]
Peak charge current
?
Peak discharge current
500 A [3]
Continuous output power
1.6 kW [2]
Peak output
500 A for 1 s A [2]
Maximum charge voltage
18 V [2]
Charge cutoff voltage
?
Discharge cutoff voltage
?

BMS and communication

BMS continuous current
100 A [2]
Communication protocols
?
Wireless monitoring
yes [4]
Inverter compatibility
?

Operating temperature

Charging temperature
-20 to 50 °C / -4 to 122 °F converted [2]
Discharging temperature
-20 to 60 °C / -4 to 140 °F converted [2]
Storage temperature
-10 to 50 °C / 14 to 122 °F converted [2]
Self-heating
yes [4]

Mechanical and mounting

Dimensions
W 169.9 × H 211.1 × L 308.1 mm / W 6.69 × H 8.31 × L 12.13 in [4]
Weight
12.011 kg / 26.48 lb converted [4]
Terminals
M8 [2]
Mounting / format
case [2]
Enclosure rating (IP)
IP65 [2]

Installation (from the manual)

Torque

Main terminal torque
12 to 14 N·m [3]
Communication terminal torque
?
Ground terminal torque
?

Not in the manual: Conductors, Protection, Clearances and orientation, Grounding, Communication

System limits

Maximum parallel units
4 count [2]
Series connection
1 count [4]
Maximum system energy
?
Page 1 of 2 · Installation values · ? means nothing is recordedAggregated, often community-reported information, not official documentation. Do not rely on it for installation, purchase or compliance decisions; always confirm values with the manufacturer’s official documentation. Charged Reviews accepts no responsibility for errors.

Charged Reviews · Quick reference

LiTime 16V 100Ah Lithium Battery for LiveScope & Fish Finder Systems with Bluetooth and Self-Heating · L16V100-100-MELE-HEAT-BT-5-A90

Warranty

Warranty term5 years[4] [5]
Warranty cycle limit?
Warranted throughput?
Capacity retention?
Cycle rating4,000 cycles[2]
Estimated throughput?
Coverage startsDate of installation or receipt by the original consumer purchaser, evidenced by the first purchase receipt[5]
Coverage conditionsExcludes misuse, abuse, modification, accident damage and any use outside normal consumer use as authorised in LiTime product literature; excludes attempted repair by anyone other than an authorised facility; excludes any product bought through an online auction house[5]
RemedyRepair at LiTime expense; where the product cannot be repaired, a free replacement of the same or an equivalent model, carrying the longer of the original term or a further 90-day repair warranty[5]
Labor and shipping?
Transfer to another ownerOriginal consumer purchaser only; not transferable to a subsequent owner[5]
Registration?

Certifications and listings

UL 1973?
UL 9540?
UL 9540A?
UN 38.3Claimed present at observation [4]
IEC 62619?
CE?

Documents and sources

  1. LiTime US store product feed (products.json page 1, October 27, 2026 capture) Seller product feed (Shopify products.json capture) · Checked Oct 26, 2026 https://www.litime.com/products.json?limit=250&page=1
  2. View Online User manual · Checked Sep 19, 2026 https://cdn.shopify.com/s/files/1/0667/7220/5788/files/LiTime_16V_100Ah_Smart_Self-Heating_Battery_-_User_Manual_20903acb-a590-4a83-96e8-58a47d4c2b2e.pdf?v=1755048462
  3. View Online Manufacturer manual · Checked Sep 18, 2026 https://cdn.shopify.com/s/files/1/0667/7220/5788/files/LiTime_16V_100Ah_Smart_Self-Heating_Battery_-_User_Manual_20903acb-a590-4a83-96e8-58a47d4c2b2e.pdf?v=1755048462
  4. LiTime 16V 100Ah Fish Finder Lithium Battery for Livescope (September 22, 2026 capture) Manufacturer product page (HTML capture) · Checked Sep 21, 2026 https://www.litime.com/products/litime-16v-100ah-fish-finder-lithium-battery
  5. LiTime Warranty Policy (September 22, 2026 capture) Manufacturer warranty policy page (HTML capture) · Checked Sep 21, 2026 https://www.litime.com/pages/warranty-policy
