Printed as "Ensure that the PE cable is securely connected." in 2.2.2 Operation Precautions of the Growatt User Manual for the APX 7.0-84.0M-S3 High Voltage Battery System (GR-UM-553-A-03) (page 11), which covers the APX 7.0M-B3, APX 7.0P-B3 and every APX M-S3 system; the wiring diagram on page 41 shows a PE conductor.
Where: PDF page 11, 2.2.2 Operation Precautions; PDF page 41, Figure 4.29 APX M-S3 system wiring diagram (PE)
Power and communication integrated terminal (Master Module, to the inverter)
Printed as "Power and communication integrated terminal" (item 7, "Power and communication interfaces connected to the inverter") in Table 1.1 of the Growatt User Manual for the APX 7.0-84.0M-S3 High Voltage Battery System (GR-UM-553-A-03) (page 6).
Printed as "Installation Wall-mounted installation/ Floor-mounted installation" in the technical specifications of the Growatt User Manual for the APX 7.0-84.0M-S3 High Voltage Battery System (GR-UM-553-A-03) (7.1 page 62; 7.2 page 63 prints the same two options).
Where: PDF page 62/63, Technical Specifications, Installation
Location: User Manual, APX 7.0-84.0M-S3 High Voltage Battery System (Growatt AU edition, GR-UM-553-A-03, file dated 202608), PDF page 62 (printed page 58), 7.1 APX 7.0M-B3 (Master Module) specifications, row 9
Master Module contains relays, fuses and a DC switch
Printed as "key electrical components such as relays, fuses, and DC switch" in 1.2.1 of the Growatt User Manual for the APX 7.0-84.0M-S3 High Voltage Battery System (GR-UM-553-A-03) (page 5), describing the APX 7.0M-B3 Master Module of every APX M-S3 system.
Where: PDF page 5, 1.2.1 APX 7.0M-B3 (Master Module)
Printed as "Rated capacity of the measured module: 314Ah IFpP/73/176/208/[1P/7S]M/-10+50/95" in the Growatt User Manual for the APX 7.0-84.0M-S3 High Voltage Battery System (GR-UM-553-A-03) (page 63), the designation of one 7 kWh module (Master or Battery Module). Page 5 says a module's cells form a 22.4V source boosted by a DC-DC converter.
Link-in: APX M-S3 cascading communication input port; Link-out: APX M-S3 cascading communication output port; USB: USB port for inserting a USB flash drive to update the firmware; Power and communication integrated terminal: power and communication interfaces connected to the inverter
Printed in Table 1.1 APX 7.0M-B3 panel description of the Growatt User Manual for the APX 7.0-84.0M-S3 High Voltage Battery System (GR-UM-553-A-03) (page 6). The Master Module carries the system's ports; Battery Modules connect to it through integrated terminals.
Where: PDF page 6, Table 1.1 APX 7.0M-B3 panel description
Regulated DC terminal input/output range; nominal depends on single/three phase.
Record-scope test (b), own-terminal scope: this exact module nameplate prints its own regulated DC terminal Input/Output Voltage 350–980 V, not the voltage of a different series stack it joins. The manual separately prints internal 22.4 V power-source context and regulated nominal 400 V single-phase / 750 V three-phase. No phase or unconditional nominal is selected; internal and converter-terminal voltages are not interchangeable.
Where: AU APX M-S3 manual GR-UM-553-A-03, PDF p12 / printed 8, exact APX 7.0M-B3 nameplate, Input/Output Voltage
Single-phase inverters (MIN-XH/XH2 series) and three-phase inverters (MOD, MID series)
Printed as "compatible with single-phase inverters (MIN-XH/XH2 series) and three-phase inverters (MOD, MID series)" in 1 Product Overview of the Growatt User Manual for the APX 7.0-84.0M-S3 High Voltage Battery System (GR-UM-553-A-03) (page 5).
Printed as "recommended to be stored in an environment within the temperature range of -20°C~30°C and charged regularly" in 3.1 Storage Requirements of the Growatt User Manual for the APX 7.0-84.0M-S3 High Voltage Battery System (GR-UM-553-A-03) (page 15). Table 3.1 on the same page permits -20 °C to 10 °C for up to 12 months, 10 °C to 30 °C for up to 9 months and 30 °C to 50 °C for up to 6 months, and does not permit storage below -20 °C or above 50 °C.
A DC circuit breaker between battery system and inverter is not recommended (the Master Module includes a DC switch); if one is installed: 35 Adc, 1000 Vdc
Printed as "a DC circuit breaker is not recommended to be installed between the battery system and the inverter" with the breaker specifications "Current: 35Adc" and "Voltage: 1000Vdc" in 4.4.2 System Connection of the Growatt User Manual for the APX 7.0-84.0M-S3 High Voltage Battery System (GR-UM-553-A-03) (page 36); the manual adds not to operate an installed breaker with power on.
Where: PDF page 36, 4.4.2 System Connection, notice
Printed as "it communicates with the inverter through RS485/CAN communications" in 1.3 Working Principle and Function of the Growatt User Manual for the APX 7.0-84.0M-S3 High Voltage Battery System (GR-UM-553-A-03) (page 9). Cascaded APX M-S3 systems talk to each other over CAN; the pin definition is Table 4.2 (page 35).
Where: PDF page 9, 1.3 Working Principle and Function

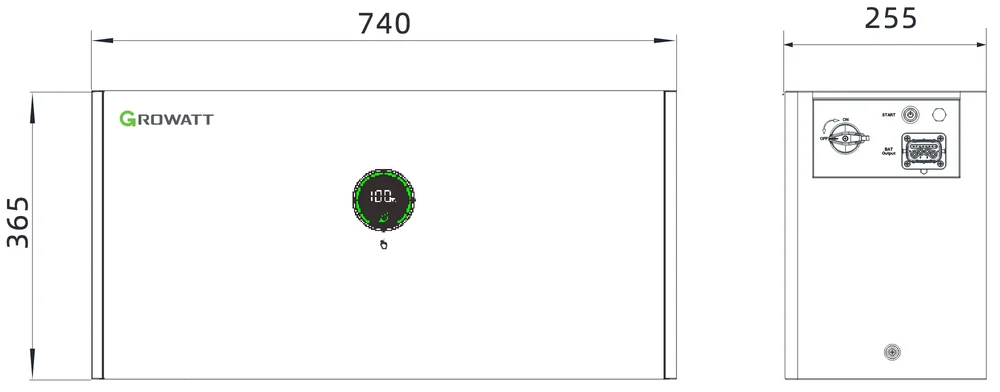

68.88 L* (Calculated enclosure volume: W × H × D in mm ÷ 1,000,000)W: 740 × H: 365 × D: 255 mm / W: 29.1 × H: 14.4 × D: 10 in63 kg / 140 lb0.1 kWh/L* (Rated or usable capacity shown on this card ÷ enclosure volume)
Evidence score
13/100Missing details20% documented
The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.
Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.
Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Lifetime / capacity evidence needed; Cell model disclosure evidence needed.
High voltage · Wall / floor · Rated capacity
The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.
Research pending, 0 points: Certificates, Warranty energy disclosure, Cell model disclosure.
Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.
Growatt's user manual for the APX 7.0-84.0M-S3 system, linked from the APX HV Battery AU page, captured September 29, 2026. Its nameplate figure (section 2.3, marked AU) prints energy, capacity, current and weight for the twelve system models APX 7.0M-S3 to APX 84.0M-S3; chapter 7 prints the master module (APX 7.0M-B3) and battery module (APX 7.0P-B3) tables. No AU datasheet for this system is linked. Manufacturer claims, not independently verified.
