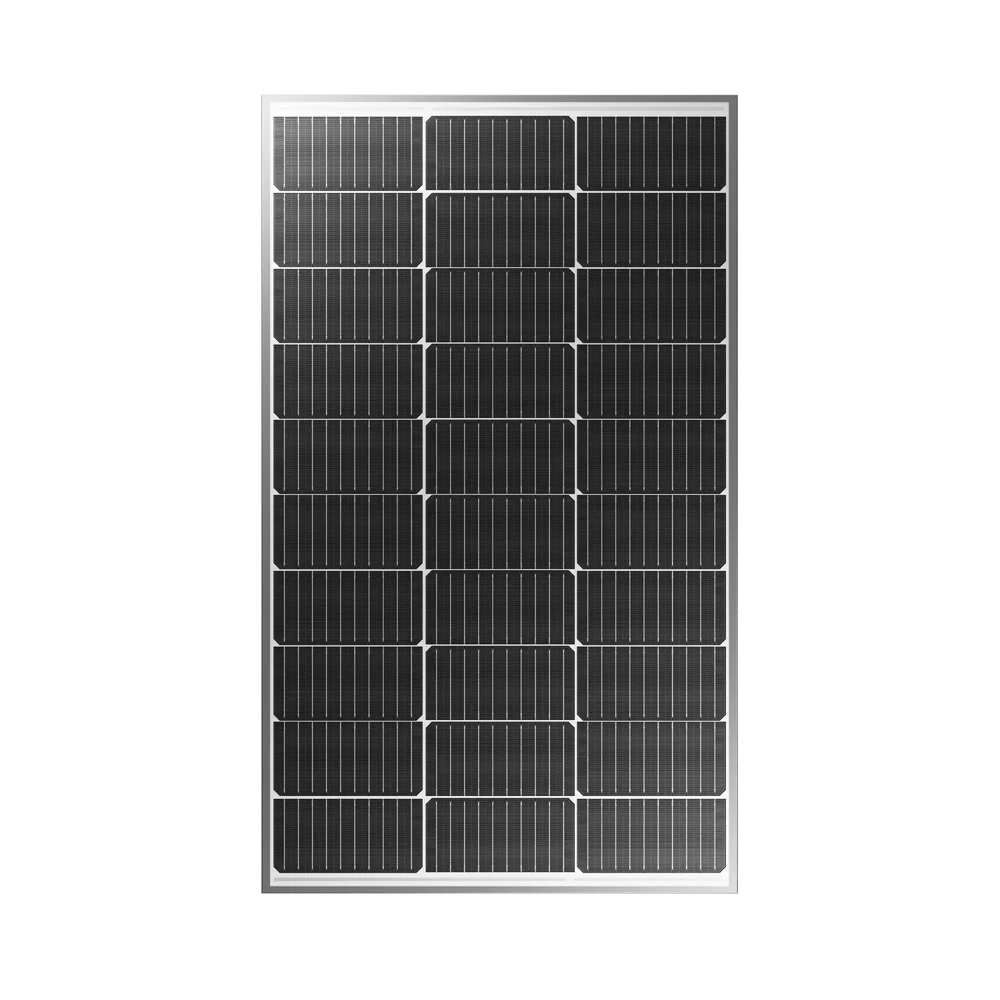

JJN 100W Solar Panel (JJN-SP-100W-P-1)
JJN
Solar panel

JJN 100W Solar Panel (JJN-SP-100W-P-1)

Key specs

Rated power100 W
Weight6.08 kg / 13.4 lb converted
Open-circuit voltage20.8 V
Short-circuit current6.42 A
Voltage at max power17.5 V
Current at max power5.72 A

All specifications

Identity

BrandJJN · Website
Model100W Solar Panel
MarketUnknown
Manufacturer SKUJJN-SP-100W-P-1
About brandJJN Solar sells rigid solar panels, MPPT charge controllers, solar kits and mounting accessories under the JJN name through its own online store at jjnsolar.com.
SKU detail
locator: Store product data, variants[0], "sku" field
conditions: Printed as "sku":"JJN-SP-100W-P-1" for "100W Solar Panel" in JJN Solar's store product data, captured October 21, 2026.
Sources: [1]
FieldValueConditionsSource
Current at max power5.72 A
Printed as "Optimum Operating Current 5.72A" (the current at maximum power).
Where: Product page, Technical Specifications table, Optimum Operating Current
[2]
Short-circuit current6.42 A
Printed as "Short Circuit Current 6.42A".
Where: Product page, Technical Specifications table, Short Circuit Current
[2]
Voltage at max power17.5 V
Printed as "Optimum Operating Voltage 17.5V" (the voltage at maximum power).
Where: Product page, Technical Specifications table, Optimum Operating Voltage
[2]
Open-circuit voltage20.8 V
Printed as "Open Circuit Voltage 20.8V".
Where: Product page, Technical Specifications table, Open Circuit Voltage
[2]
Cell typeMonocrystalline Silicon
Printed as "Cell Type Monocrystalline Silicon".
Where: Product page, Technical Specifications table, Cell Type
[2]
Weight6.08 kg / 13.4 lb converted
Printed as "Weight 13.4lbs" (pounds only); converted to kilograms.
Where: Product page, Technical Specifications table, Weight
Sources
Converted: 13.4 lb x 0.45359237 kg/lb, rounded to 0.01 kg
[2]
ConnectorsMC4Printed as "Connector MC4".
Where: Product page, Technical Specifications table, Connector
[2]
DimensionsW 576.6 × L 970.3 × D 30.5 mm / W 22.7 × L 38.2 × D 1.2 in
Printed as "Dimensions 38.2x22.7x1.2inch" (inches only); recorded in the printed order as length, width and depth and converted to millimeters.
Where: Product page, Technical Specifications table, Dimensions
Sources
Converted: 38.2 x 22.7 x 1.2 in x 25.4 mm/in, rounded to 0.1 mm
[2]
Rated power100 WPrinted as "Power 100W".
Where: Product page, Technical Specifications table, Power
[2]
Series fuse15 A
Printed as "Maximum Series Fuse Rating 15A".
Where: Product page, Technical Specifications table, Maximum Series Fuse Rating
[2]
Operating temperature-40 to 85 °C / -40 to 185 °F converted
Printed as "Operating Temperature -40°C to 85°C".
Where: Product page, Technical Specifications table, Operating Temperature
[2]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Rated output
100 WEfficiency Not statedW / sq ft 16.6* (Calculated: 100 W ÷ (970.3 mm × 576.6 mm = 6.02 sq ft) = 16.6 W/sq ft)
Voltage (STC)
17.5 VVmp · maximum powerVoc · open circuit 20.8 VMax system Not stated
Current (STC)
5.72 AImp · maximum powerIsc · short circuit 6.42 A
Dimensions
D: 30.5 × W: 576.6 × L: 970.3 mm / D: 1.2 × W: 22.7 × L: 38.2 inWeight 6.08 kg / 13.4 lb
Warranty
5 yearsPower warranty Not stated

Evidence score

5/10026% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing for this product: Module efficiency needed; Power warranty needed; Power temperature coefficient needed; First-year degradation needed.

Each input is scored against the best documented value for a solar panel, and weight per watt against the best in the panel’s own format. A documented value always earns points; an undisclosed one earns 0 and is listed as missing. Certificates and unsupported claims do not add points.

Product warranty5 years3.5 / 21.0

5 of 30 years, the best documented for a solar panel (printed by the maker): AIKO Neostar 3S+54 AIKO-A480-MCE54Db 480W Dual-Glass Module

Printed as "Material and Workmanship Warranty 5 Years"; the table also prints "Performance Warranty 30 Years 80%-83% Output Warranty", a separate power-output term not recorded here.

[2]

Weight / watt6.08 kg / 100 W1.0 / 5.0

0.0608 against 0.01227 kg per W, the lowest documented for a solar panel (calculated from maker figures): Go Power! 110-Watt Solar Flex™ Module

6.08 kg / 100 W. Lighter modules per watt carry less roof load. Panel format is not documented, so this is compared with every panel.

[2]

Not documented, 0 points: Module efficiency, Power warranty, Power temperature coefficient, First-year degradation.

Each input is compared with the best documented value among published solar panels, weight per watt within the same panel format · Method version 0.4

How it works

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.

Unknown: no certification evidence recorded in this data.

Warranty

FieldValueConditionsSource
Warranty term5 years
Printed as "Material and Workmanship Warranty 5 Years"; the table also prints "Performance Warranty 30 Years 80%-83% Output Warranty", a separate power-output term not recorded here.
Where: Product page, Technical Specifications table, Material and Workmanship Warranty
[2]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.

Documents

  • Other documents

  • JJN Solar store page: 100W Solar Panel (October 21, 2026 capture)Official · JJN Solar · Official product page · Web page
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Archived copy captured on 2026-10-21.

    Location: Technical Specifications table; product title

    Retrieved Oct 20, 2026

    JJN Solar's own store page (jjnsolar.com), captured on October 21, 2026 with the paced research fetcher; the content is whatever the address served on that date. Manufacturer claims, not independent tests; JJN Solar publishes no datasheet or manual for this product on its site, so the page's Technical Specifications table is the only specification source.

    Open

Submit a document

Parts and accessories

No sourced accessories or replacement parts listed yet.

Model history

Model identity

Model
100W Solar Panel

Manufacturer SKU JJN-SP-100W-P-1

No historical observations recorded yet.

Other recorded fields

FieldValueConditionsSource
Evidence breakdown
method version: panels-0.4-personal
documented pct: 26
basis: Unknown
missing:
Module efficiency needed
Power warranty needed
Power temperature coefficient needed
First-year degradation needed
criteria:
key: efficiency
label: Module efficiency
value: Unknown
unit: Unknown
shown: Not documented
shown detail: Unknown
state: missing
points: 0
ceiling: 26
weight: 26
share: Unknown
covered: no
missing: yes
folded: yes
reason: undocumented
reason text: Not documented. Undisclosed data scores 0.
note: Not documented.
display note: Unknown
Sources: No source on record
key: warranty
label: Product warranty
value: 5
unit: Unknown
shown: 5 years
shown detail: Unknown
state: documented
points: 3.5
ceiling: 21
weight: 21
share: 16.7
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note:
display note: Unknown
Sources: [2]
key: performanceWarranty
label: Power warranty
value: Unknown
unit: Unknown
shown: Not documented
shown detail: Unknown
state: missing
points: 0
ceiling: 16
weight: 16
share: Unknown
covered: no
missing: yes
folded: yes
reason: undocumented
reason text: Not documented. Undisclosed data scores 0.
note: Not documented.
display note: Unknown
Sources: No source on record
key: powerTemperature
label: Power temperature coefficient
value: Unknown
unit: Unknown
shown: Not documented
shown detail: Unknown
state: missing
points: 0
ceiling: 16
weight: 16
share: Unknown
covered: no
missing: yes
folded: yes
reason: undocumented
reason text: Not documented. Undisclosed data scores 0.
note: Not documented.
display note: Unknown
Sources: No source on record
key: degradation
label: First-year degradation
value: Unknown
unit: Unknown
shown: Not documented
shown detail: Unknown
state: missing
points: 0
ceiling: 16
weight: 16
share: Unknown
covered: no
missing: yes
folded: yes
reason: undocumented
reason text: Not documented. Undisclosed data scores 0.
note: Not documented.
display note: Unknown
Sources: No source on record
key: weightPerWatt
label: Weight / watt
value: 0.0608
unit: Unknown
shown: 6.08 kg / 100 W
shown detail: Unknown
state: documented
points: 1
ceiling: 5
weight: 5
share: 20.2
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note: 6.08 kg / 100 W. Lighter modules per watt carry less roof load. Panel format is not documented, so this is compared with every panel.
display note: Unknown
Sources: [2]

Community discussions

No discussions linked yet. Search DIY Solar Forum

Sources

  1. JJN Solar store product data (Shopify products.json, October 21, 2026 capture) (JJN Solar · manufacturer · observed Oct 20, 2026)
  2. JJN Solar store page: 100W Solar Panel (October 21, 2026 capture) (JJN Solar · manufacturer · observed Oct 20, 2026)
