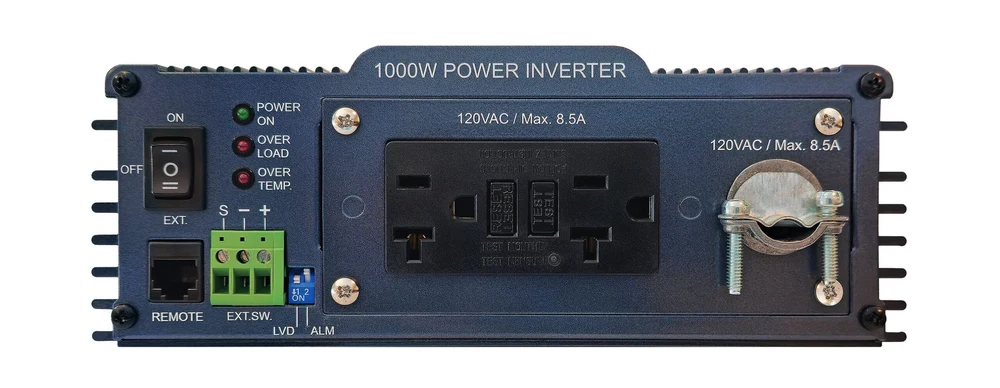

Samlex America 1000 Watt Pure Sine Wave Inverter PST-1000-12HD
Samlex America
Off-grid inverter

Samlex America 1000 Watt Pure Sine Wave Inverter PST-1000-12HD

Key specs

Weight3.78 kg / 8.33 lb converted
Nominal voltage12 V
Efficiency88 %
Surge AC output2,000 W
AC voltage120 V
Continuous AC output1,000 W

All specifications

Identity

BrandSamlex America · Website
ModelPST-1000-12HD
MarketUS
Manufacturer SKUPST-1000-12HD
About brandSamlex America says it was founded in 1991 and describes itself as a global manufacturer of power conversion products, with manufacturing facilities in Canada, the US, the Netherlands, Taiwan and China. Its range includes power inverters, inverter/chargers, battery chargers, DC-DC converters, power supplies, solar panel kits and solar charge controllers.
SKU detail
locator: Manual Section 12 MODEL NO. row; specification sheet MODEL NO. row
conditions: Samlex America model number, printed in the MODEL NO. row of the owner's manual (first column) and as "MODEL NO. PST-1000-12HD" on the specification sheet.
Sources: [1] [2]
FieldValueConditionsSource
Thd2 %
Printed as "< 2%", a stated upper limit.
Where: Section 12 Specifications, page 65, TOTAL HARMONIC DISTORTION row
[1]
Weight3.78 kg / 8.33 lb converted
Printed as "3.78" kg (8.33 lb) in the manual and the specification sheet.
Where: Section 12 Specifications, page 65, WEIGHT KG row; specification sheet
[1] [2]
AC voltage120 VPrinted as "120 VAC ± 3%".
Where: Section 12 Specifications, page 65, OUTPUT VOLTAGE row
[1]
DimensionsW 333 × H 82 × D 238 mm / W 13.1 × H 3.2 × D 9.37 in converted
Printed as "333 x 238 x 82" mm (W x D x H), 13.11 x 9.37 x 3.23 in.
Where: Section 12 Specifications, page 65, DIMENSIONS (W X D X H), MM row
[1]
Efficiency88 %
Printed as "> 88%" (first column, PST-1000-12HD) and on the specification sheet, a lower bound; the bound is recorded.
Where: Section 12 Specifications, page 65, PEAK EFFICIENCY row; specification sheet
[1] [2]
AC frequency60 HzPrinted as "60 Hz ± 1%".
Where: Section 12 Specifications, page 65, OUTPUT FREQUENCY row
[1]
Output waveformPure sine wave
Printed as "Pure Sine Wave".
Where: Section 12 Specifications, page 65, TYPE OF OUTPUT WAVEFORM row
[1]
Nominal voltage12 V
Printed as "12V" (first column, PST-1000-12HD).
Where: Section 12 Specifications, page 65, NOMINAL DC INPUT VOLTAGE row
[1]
Surge AC output2,000 W
Printed as "2000 Watts" (first column, PST-1000-12HD); the specification sheet adds the conditions, "(At Power Factor = 1; <8 ms) 2000 Watts".
Where: Section 12 Specifications, page 65, SURGE OUTPUT POWER row; specification sheet
[1] [2]
Certification claimsIntertek - ETL Listed; conforms to UL Std. UL 458 and certified to CSA Std. C22.2 No. 107.1; FCC Part 15(B), Class B
Printed as "Intertek - ETL Listed. Conforms to UL Std. UL 458 and certified to CSA Std. C22.2 No. 107.1" (safety) and "FCC Part 15(B), Class B" (EMI / EMC). A claim in the maker's manual; no certificate or listing record was read.
Where: Section 12 Specifications, page 65, COMPLIANCE rows
[1]
Continuous output1 kW
Converted: 1000 W / 1000 = 1.0 kW
Printed as "1000 Watts" at power factor 1 (first column, PST-1000-12HD). 1000 W expressed in kW.
Where: Section 12 Specifications, page 65, CONTINUOUS OUTPUT POWER row
Sources
Converted: 1000 W / 1000 = 1.0 kW
[1]
Continuous AC output8.5 A
Printed as "8.5A" (first column, PST-1000-12HD).
Where: Section 12 Specifications, page 65, MAXIMUM OUTPUT CURRENT row
[1]
Continuous AC output1,000 W
Printed as "1000 Watts" (first column, PST-1000-12HD) and on the specification sheet.
Where: Section 12 Specifications, page 65; specification sheet
[1] [2]
Battery voltage range10-18 V DC
Printed as "10 - 18 VDC" (first column, PST-1000-12HD).
Where: Section 12 Specifications, page 65, DC INPUT VOLTAGE RANGE row
[1]
Operating temperature-20 to 55 °C / -4 to 131 °F converted Check note
Samlex America documents print different lower operating temperatures. The owner's manual prints "-20 to 55˚C / -13 to 131˚F"; the specification sheet 12001-PST-1000-12HD-0624 prints "-25 to 55˚C / -13 to 131˚F".
Printed as "-20 to 55˚C / -13 to 131˚F" in the owner's manual; the specification sheet prints "-25 to 55˚C / -13 to 131˚F" (kept as an alternative).
Where: Section 12 Specifications, page 65, OPERATING TEMPERATURE RANGE row
Sources
-25 to 55 °C

Printed as "-25 to 55˚C / -13 to 131˚F" on the specification sheet 12001-PST-1000-12HD-0624.

[2]
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Continuous output
1 kW
Battery voltage
10-18 V DC
Solar input
Not statedMPPT trackers Not stated
AC output
120 V
Warranty
3 years
Size
6.5 L* (Calculated from published dimensions)W: 333 × H: 82 × D: 238 mm / W: 13.1 × H: 3.2 × D: 9.37 inWeight 3.78 kg / 8.33 lb

Evidence score

4/100Missing details30% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificate evidence needed; Battery conversion efficiency needed; Idle consumption needed.

Each input is scored against the best documented value for an inverter: warranty term and battery conversion efficiency against every published inverter, idle consumption (lower is better) against the inverters in the same output band, or against every published inverter when the output is not documented. A documented value always earns points; an undisclosed one earns 0 and is listed as missing. Researched products receive a score. Certificates earn points for the evidence itself. Size and weight do not affect scores.

Warranty term3 years3.6 / 30.0

3 of 25 years, the best documented for an inverter (printed by the maker): APsystems DS3

Printed as "The warranty period is 3 years for the United States and Canada"; outside the United States and Canada the manual limits the warranty to 6 months.

[1]

Research pending, 0 points: Certificates, Battery conversion efficiency, Idle consumption.

Warranty term and battery conversion efficiency are compared with every published inverter; idle consumption with the inverters in the same 0 to 1.5 kW output band. · Method version 0.5

How it works

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.

Unknown: no certification evidence recorded in this data.

Warranty

FieldValueConditionsSource
Warranty term3 years
Printed as "The warranty period is 3 years for the United States and Canada"; outside the United States and Canada the manual limits the warranty to 6 months.
Where: Section 13 Warranty, page 67
[1]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.

Documents

  • Manuals

  • PST-1000-12HD and PST-1000-24HD pure sine wave inverter owner's manual (Samlex America)Official · Samlex America Inc. · Official instruction manual · PDF
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Archived copy captured on 2026-10-16.

    Location: Section 12 Specifications, page 65; Section 13 Warranty, page 67

    Retrieved Oct 16, 2026

    Samlex America's owner's manual for the PST-1000-12HD and PST-1000-24HD, linked from the PST-1000-12HD product page, captured October 16, 2026. Section 12 (Specifications, page 65) has one column per model where they differ. Manufacturer claims, not independent tests.

    Archived copies

    Archived copy of a document published by Samlex America Inc.. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

    Archived backupRevision not recorded · 4.30 MB

    Archived copy, unaltered, kept as a record of what Samlex America Inc. published. Original address: https://samlexamerica.com/wp-content/uploads/2023/11/11001-PST-1000-12HD-24HD_1122_Lrez.pdf. Copyright and takedown

    Source first found
    This copy captured
    Archived
    File detailsOriginal source
    Embedded creation date
    Embedded modification date
    Pages
    68

    Embedded dates are file metadata, not independent proof of publication.

    SHA-256: 14778db011c34ab1b5583f535bc9835640bea6f6f16b5da8c24c2bab26a21847

    Open
  • Datasheets

  • PST-1000-12HD specification sheet, document 12001-PST-1000-12HD-0624 (Samlex America)Official · Samlex America Inc. · Official datasheet · PDF
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Archived copy captured on 2026-10-16.

    Location: Specification table

    Retrieved Oct 16, 2026

    Samlex America's one-page specification sheet for the PST-1000-12HD (document 12001-PST-1000-12HD-0624), linked from the product page as 12001-PST-1000-12HD-Spec-Sheet-0524.pdf and served at the -0624 address, captured October 16, 2026. Manufacturer claims, not independent tests.

    Archived copies

    Archived copy of a document published by Samlex America Inc.. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

    Archived backupRevision not recorded · 0.28 MB

    Archived copy, unaltered, kept as a record of what Samlex America Inc. published. Original address: https://samlexamerica.com/wp-content/uploads/2024/04/12001-PST-1000-12HD-Spec-Sheet-0624.pdf. Copyright and takedown

    Source first found
    This copy captured
    Archived
    File detailsOriginal source
    Embedded creation date
    Embedded modification date
    Pages
    1

    Embedded dates are file metadata, not independent proof of publication.

    SHA-256: bf6dcaabfa3687ec07615cf4d2112a81afa89ab7346ba2524e3620ffbf8d42e9

    Open
  • Other documents

  • 1000 Watt Pure Sine Wave Inverter PST-1000-12HD, Samlex America product page (captured October 16, 2026)Official · Samlex America Inc. · Official product page · Web page
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Archived copy captured on 2026-10-16.

    Location: Page title; product gallery; Downloads

    Retrieved Oct 16, 2026

    Samlex America's own product page for the PST-1000-12HD on samlexamerica.com, captured October 16, 2026; the content is whatever the address served on that date. It names the model, links the owner's manual and specification sheet and shows the product photographs. Manufacturer claims, not independent tests; the page carries no revision date.

    Open

Archive and older revisions

Archive and older revisions0

Earlier revisions, archived captures and copies published by someone other than the manufacturer. Every one stays reachable.

Archived documents

PST-1000-12HD and PST-1000-24HD pure sine wave inverter owner's manual (Samlex America)

Archived copy of a document published by Samlex America Inc.. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

Archived backupRevision not recorded · 4.30 MB

Archived copy, unaltered, kept as a record of what Samlex America Inc. published. Original address: https://samlexamerica.com/wp-content/uploads/2023/11/11001-PST-1000-12HD-24HD_1122_Lrez.pdf. Copyright and takedown

Source first found
This copy captured
Archived
File detailsOriginal source
Embedded creation date
Embedded modification date
Pages
68

Embedded dates are file metadata, not independent proof of publication.

SHA-256: 14778db011c34ab1b5583f535bc9835640bea6f6f16b5da8c24c2bab26a21847

PST-1000-12HD specification sheet, document 12001-PST-1000-12HD-0624 (Samlex America)

Archived copy of a document published by Samlex America Inc.. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].

Archived backupRevision not recorded · 0.28 MB

Archived copy, unaltered, kept as a record of what Samlex America Inc. published. Original address: https://samlexamerica.com/wp-content/uploads/2024/04/12001-PST-1000-12HD-Spec-Sheet-0624.pdf. Copyright and takedown

Source first found
This copy captured
Archived
File detailsOriginal source
Embedded creation date
Embedded modification date
Pages
1

Embedded dates are file metadata, not independent proof of publication.

SHA-256: bf6dcaabfa3687ec07615cf4d2112a81afa89ab7346ba2524e3620ffbf8d42e9

Submit a document

Parts and accessories

No sourced accessories or replacement parts listed yet.

Model history

Model identity

Model
PST-1000-12HD

Manufacturer SKU PST-1000-12HD · US market

No historical observations recorded yet.

Other recorded fields

FieldValueConditionsSource
Evidence breakdown
method version: inverters-0.5-personal
documented pct: 30
basis: Unknown
missing:
Certificate evidence needed
Battery conversion efficiency needed
Idle consumption needed
criteria:
key: certificates
label: Certificates
value: 0
unit: Unknown
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 45
weight: 45
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: No qualifying inverter certificate evidence recorded.
display note: Unknown
Sources: No source on record
key: warranty
label: Warranty term
value: 3
unit: Unknown
shown: 3 years
shown detail: Unknown
state: documented
points: 3.6
ceiling: 30
weight: 30
share: 12
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note:
display note: Unknown
Sources: [1]
key: efficiency
label: Battery conversion efficiency
value: Unknown
unit: Unknown
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 15
weight: 15
share: Unknown
covered: no
missing: yes
folded: yes
reason: undocumented
reason text: Not documented. Undisclosed data scores 0.
note: Not documented.
display note: Unknown
Sources: No source on record
key: idle
label: Idle consumption
value: Unknown
unit: Unknown
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 10
weight: 10
share: Unknown
covered: no
missing: yes
folded: yes
reason: undocumented
reason text: Not documented. Undisclosed data scores 0.
note: Not documented.
display note: Unknown
Sources: No source on record

Community discussions

No discussions linked yet. Search DIY Solar Forum

Sources

  1. PST-1000-12HD and PST-1000-24HD pure sine wave inverter owner's manual (Samlex America) (Samlex America Inc. · manufacturer · observed Oct 16, 2026)
  2. PST-1000-12HD specification sheet, document 12001-PST-1000-12HD-0624 (Samlex America) (Samlex America Inc. · manufacturer · observed Oct 16, 2026)
