Manufacturer claim; issuer verification pending. Applies to the exact inverter.
Photo sources
Manufacturer and seller images. Configuration examples may include additional equipment.

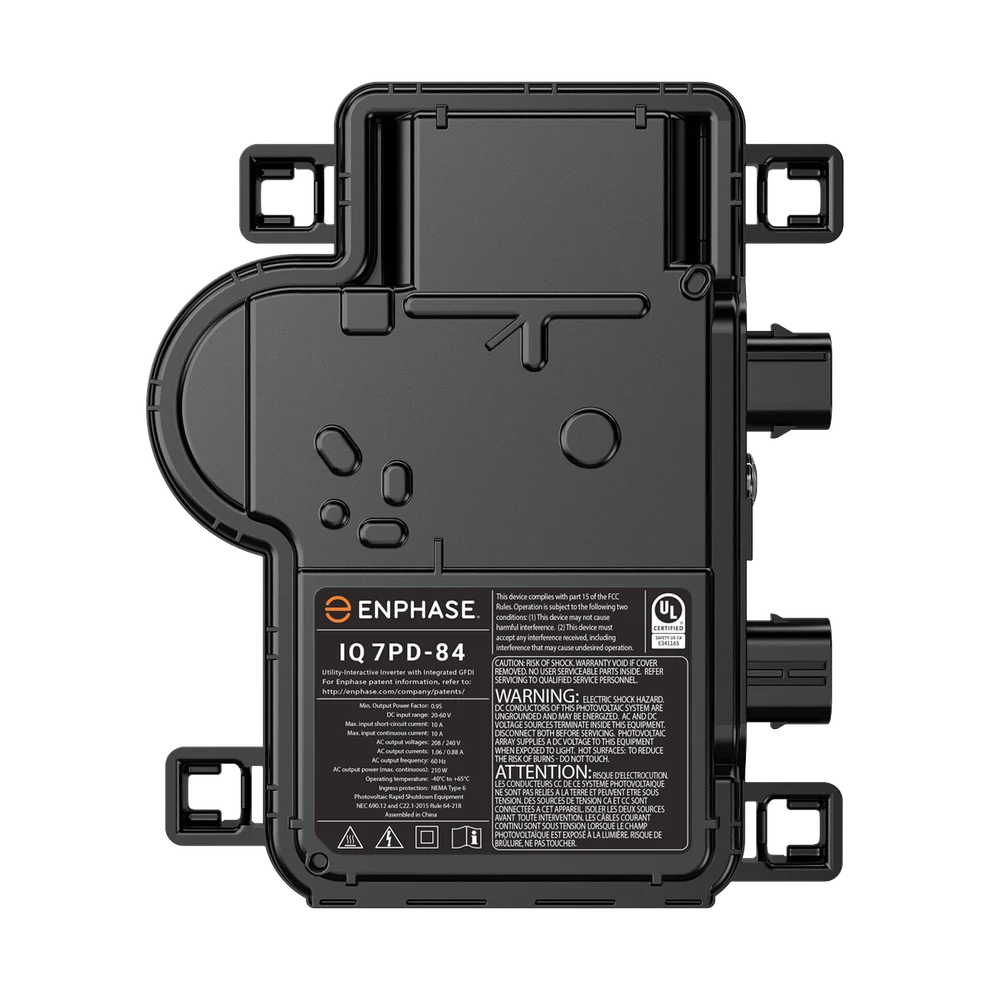

Image source: Product photo Enphase publishes on its own store page for the IQ7PD series, the series this catalog model belongs to.Microinverter
Enphase IQ7PD-84-2-US
Key specs
All specifications
Identity
No spec by that name.
| Field | Value | Conditions | Source |
|---|---|---|---|
| Weight | 1.08 kg / 2.38 lb converted | Printed as "Weight 1.08 kg (2.38 lb)" in the IQ7 PD Microinverters data sheet (IQ7PD-DSH-00459-1.0), captured on September 25, 2026. Where: MECHANICAL DATA, "Weight" row | [2] |
| Peak output | 220 VA | Printed as "Peak output power VA 199 220" in the IQ7 PD Microinverters data sheet (IQ7PD-DSH-00459-1.0), captured on September 25, 2026. The second figure is the IQ7PD-84-2-US column. No duration is printed; the figure is in VA, not W. Where: OUTPUT DATA (AC), "Peak output power" row, IQ7PD-84-2-US column | [2] |
| Dimensions | W 175 × H 212 × D 30.2 mm / W 6.89 × H 8.35 × D 1.19 in converted | Printed as "Dimensions (H × W × D) 212 mm (8.3") × 175 mm (6.9") × 30.2 mm (1.2") (without bracket)" in the IQ7 PD Microinverters data sheet (IQ7PD-DSH-00459-1.0), captured on September 25, 2026. Where: MECHANICAL DATA, "Dimensions (H × W × D)" row | [2] |
| Efficiency | 96.5 % | Printed as "Peak efficiency % 96.5 (240 V), 96.5 (208 V)" in the IQ7 PD Microinverters data sheet (IQ7PD-DSH-00459-1.0), captured on September 25, 2026. One value is printed for both models. Manufacturer rating; test conditions are not stated. Where: OUTPUT DATA (AC), "Peak efficiency" row | [2] |
| MPPT voltage | 31 to 50 V | Printed as "MPPT voltage range V 22–40 31–50" in the IQ7 PD Microinverters data sheet (IQ7PD-DSH-00459-1.0), captured on September 25, 2026. The second range is the IQ7PD-84-2-US column. Where: INPUT DATA (DC), "MPPT voltage range" row, IQ7PD-84-2-US column | [2] |
| AC configuration | 240 V or 208 V (L-L) | Printed as "Nominal (L-L) voltage/range2 V 240/211–264, 208/183–229" in the IQ7 PD Microinverters data sheet (IQ7PD-DSH-00459-1.0), captured on September 25, 2026. The trailing 2 is a footnote marker. Where: OUTPUT DATA (AC), "Nominal (L-L) voltage/range" row | [2] |
| Max PV voltage | 60 V | Printed as "Maximum input DC voltage V 54 60" in the IQ7 PD Microinverters data sheet (IQ7PD-DSH-00459-1.0), captured on September 25, 2026. The second figure is the IQ7PD-84-2-US column. Where: INPUT DATA (DC), "Maximum input DC voltage" row, IQ7PD-84-2-US column | [2] |
| Apparent power | 210 VA | Printed as "Maximum continuous output power VA 190 210" in the IQ7 PD Microinverters data sheet (IQ7PD-DSH-00459-1.0); the second figure is the IQ7PD-84-2-US column. Stored in VA as printed. Where: IQ7PD Microinverters data sheet, OUTPUT DATA (AC), "Maximum continuous output power" row, IQ7PD-84-2-US column, PDF page 2 | [2] |
Owner reviews
Write a reviewSellers
No listed sellers in this data.
Price history
No seller price history.
Quick reference sheet
- AC output (VA)
- 210 VA
- Battery voltage
- Not stated
- Solar input
- Not statedMPPT trackers Not statedMPPT range 31 to 50 V
- AC output
- 240 V or 208 V (L-L)
- Warranty
- Not stated
- Size
- 1.12 L* (Calculated from published dimensions)W: 175 × H: 212 × D: 30.2 mm / W: 6.89 × H: 8.35 × D: 1.19 inWeight 1.08 kg / 2.38 lb
Evidence score
The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.
Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.
Missing for this product: Warranty term needed; Battery conversion efficiency needed; Idle consumption needed.
Each input is scored against the best documented value for an inverter: warranty term and battery conversion efficiency against every published inverter, idle consumption (lower is better) against the inverters in the same output band, or against every published inverter when the output is not documented. A documented value always earns points; an undisclosed one earns 0 and is listed as missing. Researched products receive a score. Certificates earn points for the evidence itself. Size and weight do not affect scores.
Research pending, 0 points: Warranty term, Battery conversion efficiency, Idle consumption.
Warranty term and battery conversion efficiency are compared with every published inverter; idle consumption with every published inverter because its output is not documented. · Method version 0.5
How it worksCertificates
CA Rule 21 (UL 1741-SA)manufacturer claimpresent at observation[2]
- Scope
- equipment listing
- Covered models
- IQ7PD-84-2-US
- Limitations
- Enphase's own IQ7PD Microinverters data sheet prints "CA Rule 21 (UL 1741-SA)" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
- Record detail
- Issued: Not statedValid from: Not statedExpiry: Not statedNot checked
- Source
- [2]
CAN/CSA-C22.2 NO. 107.1-01manufacturer claimpresent at observation[2]
- Scope
- equipment listing
- Covered models
- IQ7PD-84-2-US
- Limitations
- Enphase's own IQ7PD Microinverters data sheet prints "CAN/CSA-C22.2 NO. 107.1-01" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
- Record detail
- Issued: Not statedValid from: Not statedExpiry: Not statedNot checked
- Source
- [2]
FCC Part 15 Class Bmanufacturer claimpresent at observation[2]
- Scope
- equipment listing
- Covered models
- IQ7PD-84-2-US
- Limitations
- Enphase's own IQ7PD Microinverters data sheet prints "FCC Part 15 Class B" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
- Record detail
- Issued: Not statedValid from: Not statedExpiry: Not statedNot checked
- Source
- [2]
ICES-0003 Class Bmanufacturer claimpresent at observation[2]
- Scope
- equipment listing
- Covered models
- IQ7PD-84-2-US
- Limitations
- Enphase's own IQ7PD Microinverters data sheet prints "ICES-0003 Class B" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
- Record detail
- Issued: Not statedValid from: Not statedExpiry: Not statedNot checked
- Source
- [2]
IEEE 1547:2018 (UL 1741-SB 3rd Ed.)manufacturer claimpresent at observation[2]
- Scope
- equipment listing
- Covered models
- IQ7PD-84-2-US
- Limitations
- Enphase's own IQ7PD Microinverters data sheet prints "IEEE 1547:2018 (UL 1741-SB 3rd Ed.)" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
- Record detail
- Issued: Not statedValid from: Not statedExpiry: Not statedNot checked
- Source
- [2]
UL 62109-1manufacturer claimpresent at observation[2]
- Scope
- equipment listing
- Covered models
- IQ7PD-84-2-US
- Limitations
- Enphase's own IQ7PD Microinverters data sheet prints "UL 62109-1" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
- Record detail
- Issued: Not statedValid from: Not statedExpiry: Not statedNot checked
- Source
- [2]
UL 1741 SBauthority listing reportedlisted as of snapshot[3]
- Scope
- equipment listing
- Covered models
- IQ7PD-84-2-US
- Limitations
- Listed on the California Energy Commission Grid Support Solar Inverter List (data unchanged since October 1, 2026; downloaded October 11, 2026) as Enphase Energy, Inc. "IQ7PD-84-2-US {208V}": UL 1741 SB, certifying entity UL, certificate date 2022-08-19, CEC listing date 2021-03-11. A state equipment list entry, not the certification body's own record.
- Record detail
- Issued: Not statedValid from: Aug 19, 2022Expiry: Not statedIssuer checked: Oct 11, 2026
- Source
- [3]
CECauthority listing reportedlisted as of snapshot[3]
- Scope
- equipment listing
- Covered models
- IQ7PD-84-2-US
- Limitations
- Model IQ7PD-84-2-US listed on the California Energy Commission Grid Support Solar Inverter List (data unchanged since October 1, 2026; downloaded October 11, 2026) under Enphase Energy, Inc., as "IQ7PD-84-2-US {208V}"; "IQ7PD-84-2-US {240V}", CEC listing date 2021-03-11. This is an equipment listing, not UL certification or complete-system approval.
- Record detail
- Issued: Not statedValid from: Mar 11, 2021Expiry: Not statedIssuer checked: Oct 11, 2026
- Source
- [3]
Warranty
Unknown: no warranty facts recorded.
Recalls / legal notices
No recalls on file. All notices · Report a notice
This register is incomplete. A missing notice does not establish that a product has no recalls.
Documents
Datasheets
- IQ7PD Microinverters data sheetOpen
Certificate & compliance claims (6)
CA Rule 21 (UL 1741-SA)Manufacturer claim · equipment listingClaimedListed when checked
Enphase's own IQ7PD Microinverters data sheet prints "CA Rule 21 (UL 1741-SA)" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
Manufacturer document
Official datasheet: IQ7PD Microinverters data sheetUL 62109-1Manufacturer claim · equipment listingClaimedListed when checked
Enphase's own IQ7PD Microinverters data sheet prints "UL 62109-1" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
Manufacturer document
Official datasheet: IQ7PD Microinverters data sheetIEEE 1547:2018 (UL 1741-SB 3rd Ed.)Manufacturer claim · equipment listingClaimedListed when checked
Enphase's own IQ7PD Microinverters data sheet prints "IEEE 1547:2018 (UL 1741-SB 3rd Ed.)" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
Manufacturer document
Official datasheet: IQ7PD Microinverters data sheetFCC Part 15 Class BManufacturer claim · equipment listingClaimedListed when checked
Enphase's own IQ7PD Microinverters data sheet prints "FCC Part 15 Class B" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
Manufacturer document
Official datasheet: IQ7PD Microinverters data sheetICES-0003 Class BManufacturer claim · equipment listingClaimedListed when checked
Enphase's own IQ7PD Microinverters data sheet prints "ICES-0003 Class B" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
Manufacturer document
Official datasheet: IQ7PD Microinverters data sheetCAN/CSA-C22.2 NO. 107.1-01Manufacturer claim · equipment listingClaimedListed when checked
Enphase's own IQ7PD Microinverters data sheet prints "CAN/CSA-C22.2 NO. 107.1-01" in its COMPLIANCE, Certifications row for the model columns that include IQ7PD-84-2-US. Recorded as the manufacturer prints it, captured on September 25, 2026; no issuer directory, file number or certificate was read in this pass, so the claim is not issuer-verified.
Manufacturer document
Official datasheet: IQ7PD Microinverters data sheetSource details
Listed by Enphase under "Data sheets" for product media 2671.
Location: IQ7PD Microinverters data sheet
Retrieved Sep 19, 2026
Original Enphase PDF preserved byte for byte, taken from the download list Enphase publishes for its own IQ7PD store page at https://enphase.com/store/microinverters/iq7-series/iq7pd-84-microinverter. It is a series document: it establishes what Enphase published for the IQ7PD series on the access date, and it is attached only to catalog models whose own series code the document's title names. The revision is whatever was published at this URL on that date; no later revision was checked and no issuer record was read.
SHA-256: 17ec21f9b95896a272ba5b9d9dbc2f81fff9467223f84e924e3de5dd9ce2fb7e
Archived copies
Archived copy of a document published by Enphase Energy. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].
Archived backup10/30/2025 · 0.43 MBArchived copy, unaltered, kept as a record of what Enphase Energy published. Original address: https://enphase.com/download/iq7pd-microinverters-data-sheet. Copyright and takedown
File details
Original sourceEmbedded dates are file metadata, not independent proof of publication.
SHA-256: 17ec21f9b95896a272ba5b9d9dbc2f81fff9467223f84e924e3de5dd9ce2fb7e
Other documents
- Enphase IQ7PD-84-2-US product identityOpen
Source details
Revision date not established.
Location: Original source record
Retrieved Sep 15, 2026
Archive and older revisions
Archive and older revisions1
Earlier revisions, archived captures and copies published by someone other than the manufacturer. Every one stays reachable.
- Enphase product page: IQ7PD-84 Microinverter | EnphaseOpen
Source details
Matched to the catalog record because the manufacturer's documented SKU for this product appears on this page and on no other page captured from this site.
Location: Page title: IQ7PD-84 Microinverter | Enphase
Retrieved Sep 19, 2026
Manufacturer-operated product page, captured byte for byte with a plain HTTPS GET and a desktop user agent. It establishes what the manufacturer published at this URL on the access date for this exact model: the specification table it shows, the page photo and the documents it links. Values rendered only by client-side scripts are not part of the capture. Marketing text, certification wording and stock state remain manufacturer claims that were not independently verified, and nothing on it was applied to any other model.
Archived documents
IQ7PD Microinverters data sheet
Archived copy of a document published by Enphase Energy. Copyright retained by the publisher; kept for reference and verification only, no endorsement implied. To ask for its removal, email [email protected].
Archived copy, unaltered, kept as a record of what Enphase Energy published. Original address: https://enphase.com/download/iq7pd-microinverters-data-sheet. Copyright and takedown
File details
Original sourceEmbedded dates are file metadata, not independent proof of publication.
SHA-256: 17ec21f9b95896a272ba5b9d9dbc2f81fff9467223f84e924e3de5dd9ce2fb7e
Parts and accessories
No sourced accessories or replacement parts listed yet.
Model history
Model identity
- Model
- IQ7PD-84-2-US
Manufacturer SKU IQ7PD-84-2-US
Observed Oct 11, 2026
UL 1741 SB: claimed
Product / system scope unresolved. Listed on the California Energy Commission Grid Support Solar Inverter List (data unchanged since October 1, 2026; downloaded October 11, 2026) as Enphase Energy, Inc. "IQ7PD-84-2-US {208V}": UL 1741 SB, certifying entity UL, certificate date 2022-08-19, CEC listing date 2021-03-11. A state equipment list entry, not the certification body's own record.
Observed Oct 11, 2026
CEC: claimed
Product / system scope unresolved. Model IQ7PD-84-2-US listed on the California Energy Commission Grid Support Solar Inverter List (data unchanged since October 1, 2026; downloaded October 11, 2026) under Enphase Energy, Inc., as "IQ7PD-84-2-US {208V}"; "IQ7PD-84-2-US {240V}", CEC listing date 2021-03-11. This is an equipment listing, not UL certification or complete-system approval.
Other recorded fields
| Field | Value | Conditions | Source |
|---|---|---|---|
| Evidence breakdown | method version: inverters-0.5-personal documented pct: 45 basis: Unknown missing: Warranty term needed Battery conversion efficiency needed Idle consumption needed criteria: key: certificates label: Certificates value: 31.5 unit: Unknown shown: UL 1741 SB +7 shown detail: Claimed state: claimed points: 14.2 ceiling: 45 weight: 45 share: 31.5 covered: yes missing: no folded: no reason: Unknown reason text: Unknown note: Manufacturer claim; issuer verification pending. Applies to the exact inverter. display note: Unknown Sources: [3] key: warranty label: Warranty term value: Unknown unit: Unknown shown: Research pending shown detail: Unknown state: pending points: 0 ceiling: 30 weight: 30 share: Unknown covered: no missing: yes folded: yes reason: undocumented reason text: Not documented. Undisclosed data scores 0. note: Not documented. display note: Unknown Sources: No source on record key: efficiency label: Battery conversion efficiency value: Unknown unit: Unknown shown: Research pending shown detail: Unknown state: pending points: 0 ceiling: 15 weight: 15 share: Unknown covered: no missing: yes folded: yes reason: undocumented reason text: Not documented. Undisclosed data scores 0. note: Not documented. display note: Unknown Sources: No source on record key: idle label: Idle consumption value: Unknown unit: Unknown shown: Research pending shown detail: Unknown state: pending points: 0 ceiling: 10 weight: 10 share: Unknown covered: no missing: yes folded: yes reason: undocumented reason text: Not documented. Undisclosed data scores 0. note: Not documented. display note: Unknown Sources: No source on record | ||
