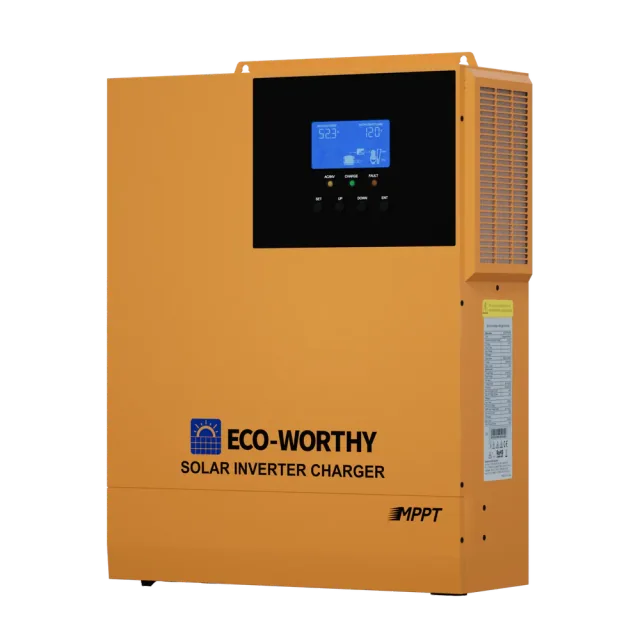

ECO-WORTHY 3500W Solar Off-grid AIO Inverter, 48Vdc to 120Vac, 4400W@150V PV Input

Brand
ECO-WORTHY
Model
L03SRUS3.5KWYTJ-1
SKU / part number
L03SRUS3.5KWYTJ-1 [1]
Category
Inverters

chargedreviews.com/inverters/eco-worthy-l03srus3-5kwytj-1

AC output

Continuous output
3.5 kW [2]
Peak output
6,000 W [2]
AC configuration
120 V AC [2]
AC output voltage
?
AC frequency
?
Grid pass-through
?
Maximum output per leg
?

Battery

Battery voltage
48 V [2]
Battery voltage range
?
Maximum charge current
?
Maximum discharge current
?
Battery-only output
?
Maximum grid charging
?
Compatible batteries / BMS
?

PV input

PV array limit (connected)
?
PV input limit (converted)
4.4 kW [2]
Maximum PV voltage (Voc)
145 V [2]
MPPT voltage range
60 to 115 V [2]
MPPT trackers
?
String inputs per MPPT
?
PV current per MPPT
?
PV short-circuit current
?
PV startup voltage
?

Efficiency and modes

Peak efficiency
91 % [3]
CEC weighted efficiency
?
Battery conversion efficiency
?
Grid / off-grid modes
?
Generator input
?
Transfer time
?
Idle consumption
?
Parallel units
?

Communication and environment

Communications
?
Operating temperature
?
Enclosure rating
?
Operating noise
?

Mechanical

Dimensions
W 322 × L 426 × D 124 mm / W 12.7 × L 16.8 × D 4.88 in converted [3]
Weight
10.5 kg / 23.1 lb converted [3]

Installation (from the manual)

Not documented in the manual

Page 1 of 2 · Installation values · ? means nothing is recordedAggregated, often community-reported information, not official documentation. Do not rely on it for installation, purchase or compliance decisions; always confirm values with the manufacturer’s official documentation. Charged Reviews accepts no responsibility for errors.

Charged Reviews · Quick reference

ECO-WORTHY 3500W Solar Off-grid AIO Inverter, 48Vdc to 120Vac, 4400W@150V PV Input · L03SRUS3.5KWYTJ-1

Warranty

Warranty term?
Optional extension?
Coverage starts?
Coverage conditions?
Remedy?
Labor and shipping?
Transfer to another owner?
Registration?
Territory?

Certifications and listings

UL 1741?
UL 1741 SA?
UL 1741 SB?
IEEE 1547?
CA Rule 21?
UL 9540?
FCC Part 15?

Documents and sources

  1. ECO-WORTHY store product data (products.json page 1, 2026-10-27 capture) Manufacturer product data (JSON capture) · Checked Oct 27, 2026 https://www.eco-worthy.com/products.json?limit=250&page=1
  2. ECO-WORTHY 3500W solar off-grid AIO inverter product page (September 25, 2026 capture) Manufacturer product page · Checked Sep 24, 2026 https://www.eco-worthy.com/products/3500w-solar-off-grid-inverter-charger-48v-dc-to-120v-ac-split-phase-power-inverter
  3. ECO-WORTHY 3.5KW solar off-grid inverter ECO3500W(SR) user manual (September 25, 2026 capture) Manufacturer user manual · Checked Sep 24, 2026 https://cdn.shopify.com/s/files/1/0253/9752/6580/files/eco-worthy_48v_3500w_120v_240v_AC_solar_inverter_charger_manual.pdf?v=1750298925
