Charged Reviews · Quick reference

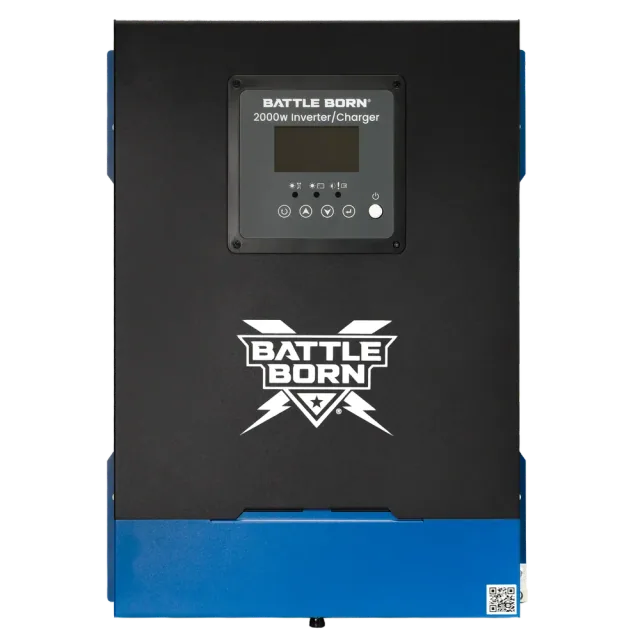

Battle Born 2000W Inverter / Charger

Brand
Battle Born Batteries
Model
BBIC2000
SKU / part number
BBIC2000 [1]
Category
Inverters

chargedreviews.com/inverters/battle-born-bbic2000

AC output

Continuous output
2 kW [1]
Peak output
?
AC configuration
?
AC output voltage
120 V [1]
AC frequency
60 Hz factory default; adjustable to 50 Hz [2]
Grid pass-through
?
Maximum output per leg
?

Battery

Battery voltage
12 V [1]
Battery voltage range
Low battery cut-out voltage to 18.0 V DC [1]
Maximum charge current
?
Maximum discharge current
?
Battery-only output
?
Maximum grid charging
?
Compatible batteries / BMS
?

PV input

PV array limit (connected)
?
PV input limit (converted)
?
Maximum PV voltage (Voc)
?
MPPT voltage range
?
MPPT trackers
?
String inputs per MPPT
?
PV current per MPPT
?
PV short-circuit current
?
PV startup voltage
?

Efficiency and modes

Peak efficiency
?
CEC weighted efficiency
?
Battery conversion efficiency
?
Grid / off-grid modes
Integrated automatic transfer switch, 30 A relay rating (24 A continuous); second AC output (L2) is a passthrough circuit that is live only when AC input is present [1]
Generator input
?
Transfer time
20 ms [1]
Idle consumption
?
Parallel units
4 [2]

Communication and environment

Communications
Removable, rotatable control panel; Battle Born mobile app; state of charge of Battle Born smart batteries shown on the remote panel [1]
Operating temperature
-20 to 60 °C / -4 to 140 °F converted [1]
Enclosure rating
?
Operating noise
?

Mechanical

Dimensions
W 306 × H 101 × L 410 mm / W 12 × H 4 × L 16.1 in [1]
Weight
8.5 kg / 18.7 lb [1]

Installation (from the manual)

Conductors

Battery conductors
2/0 AWG (cable length < 2 meter, ~6.5ft); 4/0 AWG (cable length 3-5 meter, 10-16ft) [2]
AC input conductors
AWG 10 (minimum wire gauge, AC-in) [2]
AC output conductors
AWG 10 (minimum wire gauge, AC-out-1 and AC-out-2) [2]
PV conductors
?
Ground conductor
?

Protection

AC input breaker
AC-in: 30 A fuse or circuit breaker [2]
AC output breaker
AC-out-1: 30 A; AC-out-2: 30 A (fuse or circuit breaker) [2]
Battery fuse or breaker
Recommended DC Fuse 250A [2]
PV disconnect
?

Clearances and orientation

Installation clearances
Maintain at least 10 cm (4 in.) of clearance around the fan and cable connection side for cooling airflow. [2]
Mounting orientation
Allowed: Horizontally (on a shelf or deck); Horizontally upside-down; Side-mounted on a vertical wall. Not allowed: Vertical wall mount with vents facing up or down. [2]

Grounding

Grounding and neutral-ground bonding
The inverter/charger is a Class I device and requires a continuous connection to a protective ground.; A dedicated external grounding point is provided on the chassis. [2]

Not in the manual: Torque, Communication

Page 1 of 2 · Installation values · ? means nothing is recordedAggregated, often community-reported information, not official documentation. Do not rely on it for installation, purchase or compliance decisions; always confirm values with the manufacturer’s official documentation. Charged Reviews accepts no responsibility for errors.

Charged Reviews · Quick reference

Battle Born 2000W Inverter / Charger · BBIC2000

Warranty

Warranty term3 years[3]
Optional extension?
Coverage startsDate of purchase[3]
Coverage conditionsOur Limited Warranty applies only to products sold and shipped within the US and Canada. The warranty runs from the date of purchase and does not cover negligence or misuse. Improper use is subject to a $150 per hour repair charge plus parts and shipping.[3]
RemedyRepair or replacement free of charge (except shipping costs); replacements may be new or reconditioned[4]
Labor and shipping?
Transfer to another ownerNot transferable to a subsequent owner[3]
Registration?
TerritoryUnited States and Canada only[3]

Certifications and listings

UL 1741?
UL 1741 SA?
UL 1741 SB?
IEEE 1547?
CA Rule 21?
UL 9540?
FCC Part 15?
UL 458Claimed [1]

Documents and sources

  1. Battle Born BBI2000 / BBIC2000 data sheet Datasheet · Checked Sep 12, 2026 https://battlebornbatteries.com/cdn/shop/files/BBI2000_BBIC2000_Data_Sheet.pdf
  2. BBI BBIC Manual Manufacturer instruction manual (PDF) · Checked Sep 19, 2026 https://battlebornbatteries.com/cdn/shop/files/BBI2000_BBIC2000_Manual.pdf?v=2952361876772178002
  3. Battle Born inverters and inverter-chargers: 3-year limited warranty Warranty · Checked Sep 12, 2026 https://battlebornbatteries.com/blogs/product-resources/battle-born-2000w-inverter-inverter-charger-3-year-limited-warranty
  4. Battle Born 2000W Inverter and Inverter/Charger 3-Year Limited Warranty, version 1, 21 Nov 2025 Manufacturer warranty · Checked Oct 19, 2026 https://cdn.shopify.com/s/files/1/0981/3924/2777/files/3-Year-Limited-Warranty-Battle-Born-Inverter-Charger-11-21-25.pdf

Unofficial reference. Information may be incorrect. This sheet aggregates the public sources listed above, much of it community-reported. It is not official manufacturer documentation, not an installation guide and not a compliance record. Community-reported values are checked against official manufacturer information before publication; we cannot guarantee accuracy or completeness. Do not rely on this sheet for installation, purchase or compliance decisions: always confirm every value with the manufacturer’s official documentation before buying, wiring or installing equipment. Charged Reviews accepts no responsibility for errors or omissions. Manufacturers can submit documents or corrections.
