IronRidge
Solar racking

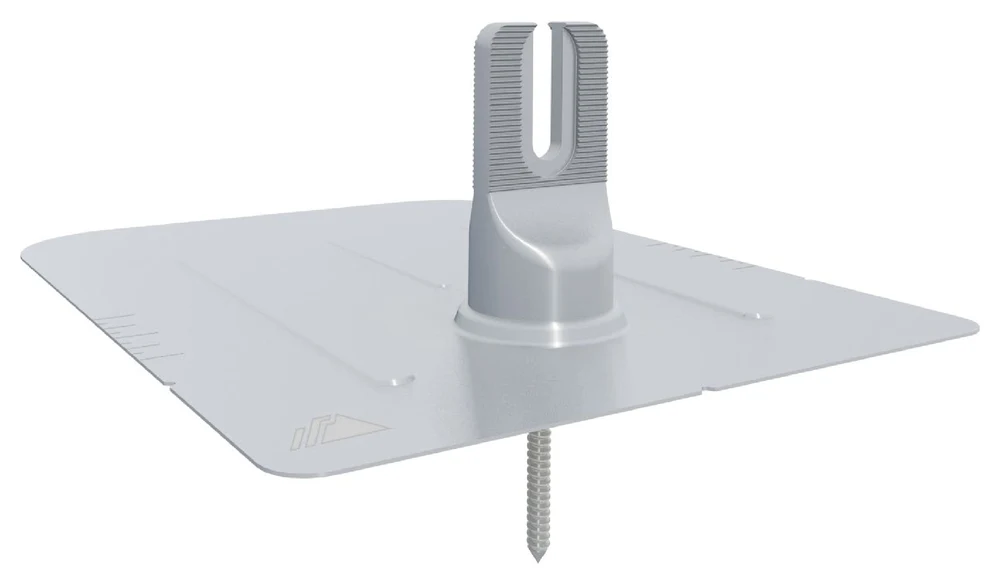

IronRidge FlashFoot2, Mill

FinishMill
MaterialAluminum flashing and cap; 300 series stainless steel lag bolt and washer
Roof surfaceAsphalt shingle
Mounting typeTwisting on the Cap makes FlashFoot2® ready to mount XR Rails®.; Comes with flashing, lag bolt, and Cap.
Mount locationPitched roof
Mounting methodsComposition shingle roofs; flashing slid under the shingle course, lag bolt with bonded washer through the flashing into the rafter

All specifications

Identity

BrandIronRidge · Website
ModelFF2-02-M2
MarketUS
Manufacturer SKUFF2-02-M2
SKU detail
locator: IronRidge Parts Catalog v3.66, FlashFoot2 table
conditions: IronRidge prints "FF2-02-M2 FlashFoot2®, Mill" in the FlashFoot2 table of its IronRidge Parts Catalog v3.66 (files.ironridge.com/IronRidge_Parts_Catalog.pdf).
Sources: [1]
FieldValueConditionsSource
FinishMill
Read from the printed part description "FlashFoot2®, Mill".
Where: IronRidge Parts Catalog v3.66, FlashFoot2 table
[1]
MaterialAluminum flashing and cap; 300 series stainless steel lag bolt and washer
Read from the Property / Value tables of IronRidge's FlashFoot2 cut sheet v2.10, which covers FF2-02-M2 and FF2-02-B2: aluminum (mill or black) for the flashing and cap assemblies, 300 series stainless steel (clear) for the lag bolt and the EPDM-backed washer. The per-component assignment is read from the table layout of the drawing.
Where: As cited
[2]
Roof surfaceAsphalt shingle
Printed: "Ratings applicable for composition shingle roofs having slopes between 2:12 and 12:12." Comp, composition and composite shingle wording (and "Asphalt Roofs") is recorded as Asphalt shingle; "composition & flat rooftops" gives Asphalt shingle only (PM 2026-10-29). The product, table or section name prints the roof surface, which counts as printed words (PM 2026-10-29).
Where: IronRidge FlashFoot2 Installation Manual, FlashFoot2 Installation Manual FM-FF2-MAN, Ratings box
[3]
Mounting typeTwisting on the Cap makes FlashFoot2® ready to mount XR Rails®.; Comes with flashing, lag bolt, and Cap.
Printed as "Twisting on the Cap makes FlashFoot2® ready to mount XR Rails®."; "Comes with flashing, lag bolt, and Cap." in IronRidge Parts Catalog, Version 3.66, Parts Catalog v3.66, Flush Mount, FlashFoot2 page. Revised on 1 October 2026: The catalog prints that the FlashFoot2 "Comes with flashing, lag bolt, and Cap" and is "ready to mount XR Rails"; it does not name a roof covering.
Where: Parts Catalog v3.66, Flush Mount, FlashFoot2 page
[1]
Mount locationPitched roof
Classified from the catalog's printed words: this item (FF2-02-M2) is listed in the Flush Mount section, whose systems the catalog says mount modules on pitched roofs.
Where: IronRidge Parts Catalog v3.66, PDF page 20 (printed page 18), Flush Mount
[1]
Mounting methodsComposition shingle roofs; flashing slid under the shingle course, lag bolt with bonded washer through the flashing into the rafter
Printed as "Line up pilot hole with flashing hole and insert lag bolt with bonded washer through flashing." in IronRidge's FlashFoot2 Installation Manual, FM-FF2-MAN Rev 1.21 (2022) (PDF page 2). The manual applies to this model: FlashFoot2 Installation Manual (product named in the title); the catalog lists FF2-02-M2 as FlashFoot2, Mill; Parts Catalog v3.66 (https://files.ironridge.com/IronRidge_Parts_Catalog.pdf) PDF page 20 lists FF2-02-M2 under that product name.
Where: PDF page 2
[3]
Included components(1) Lag bolt, 5/16 x 4.25 in; (1) Flashing assembly; (1) Cap assembly; (1) Washer, EPDM backed
Kit table of IronRidge's FlashFoot2 cut sheet v2.10, which covers FF2-02-M2 and FF2-02-B2.
Where: As cited
[2]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Evidence score

This category has no Evidence score.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.

Unknown: no certification evidence recorded in this data.

Warranty

FieldValueConditionsSource
Warranty term25 years
IronRidge's limited warranty runs 25 years from the date of shipment, except that accessories and electrical junction boxes are limited to 10 years, and finishes carry a separate 5-year finish warranty. The document does not list which parts count as accessories; 25 years is recorded here only for structural rails, splices, clamps, roof and ground attachments.
Where: IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025), What is the period of coverage?
[4]
