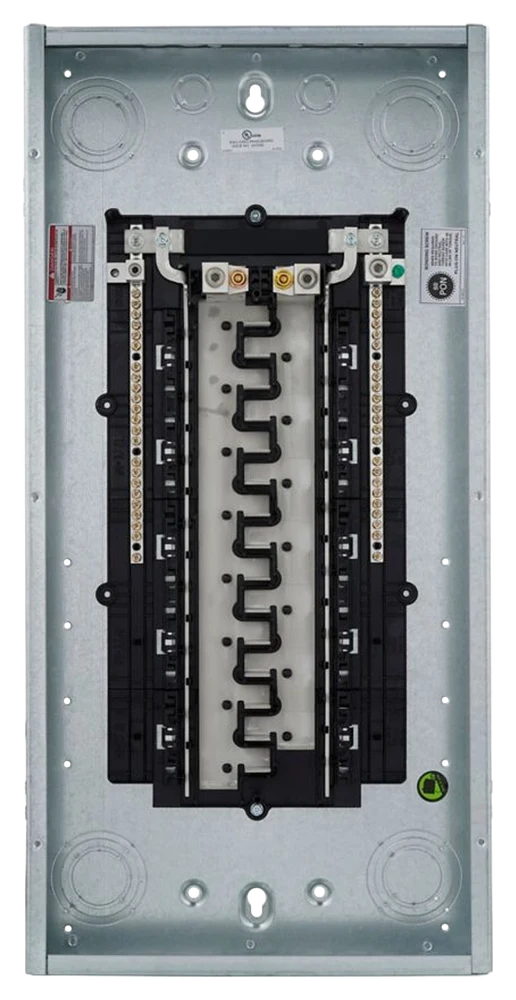

Image source: Eaton BRP30L200 load center, an image from Current Connected's listing for this one panel, titled "Eaton BRP30L200 200A 30-Space 60-Circuit Indoor Main Lug Plug-On Neutral Load Center". Credit: Current Connected, an approved partner store. Front view with the cover off, showing the main lugs and plug-on neutral rails; trimmed of white margin. Paid linkLoad center surge protector
Eaton BR main lug loadcenter, 200 A, 30 spaces, 60 circuits (BRP30L200)
Key specs
All specifications
Identity
SKU detail
No spec by that name.
| Field | Value | Conditions | Source |
|---|---|---|---|
| Phase | Single-phase | Printed as "Phase Single-phase"; number of wires "Two hots, neutral and ground". Where: Product specifications | [1] |
| Weight | 11.88 kg / 26.19 lb converted | Printed as "Product Weight 26.2 lb". Where: General specifications SourcesConverted: 26.2 lb x 0.45359237 kg/lb, rounded to 0.01 kg | [1] |
| Ul listing | UL 50, UL 67 | Printed as "Certifications UL 50 UL 67". Where: General specifications | [1] |
| Device type | Main lug loadcenter | Printed as "Product Type Main lug loadcenter" and "Type MLO". Where: General specifications | [1] |
| Bus rating | 200 A | Printed as "Amperage Rating 200 A"; the bus material is printed as aluminum. Where: Product specifications | [1] |
| Max circuits | 60 | Printed as "Number of circuits 60". Where: Product specifications | [1] |
| Dimensions | W 363.5 × H 98.6 × L 739.6 mm / W 14.31 × H 3.88 × L 29.12 in | Printed as "Product Length/Depth 29.12 in", "Product Width 14.31 in" and "Product Height 3.88 in"; recorded under Eaton's own axis names (length 29.12 in, width 14.31 in, height 3.88 in). Where: General specifications SourcesConverted: 29.12 x 14.31 x 3.88 in x 25.4 mm/in, rounded to 0.1 mm | [1] |
| Mounting type | Surface, flush | Printed as "Mounting Surface, flush"; the cover is printed as included. Where: Product specifications | [1] |
| Breaker spaces | 30 | Printed as "Number of spaces 30". Where: Product specifications | [1] |
| Enclosure rating | NEMA 1 | Printed as "Enclosure NEMA 1" and "NEMA rating NEMA 1"; the page title prints "Indoor". Where: Product specifications | [1] |
| Voltage rating | 240 V | Printed as "Voltage rating 120/240V"; 240 V is the line-to-line figure of that rating. Where: Product specifications | [1] |
| Interrupt rating | 10,000 A | Printed as "Interrupt rating 10 kAIC". Where: Product specifications SourcesConverted: 10 kA x 1000 A/kA | [1] |
Owner reviews
Write a reviewSellers
Lowest first. Each price is the date we last read it; it may have changed. Stock isn't shown.
| Store | Price | Read | Details | Source | |
|---|---|---|---|---|---|
| Current Connected | $210.57 | Nov 15, 2026 | Price Current Connected's partner product feed gives for SKU BR200 at Oct 26, 2026: $210.57. One unit as listed; shipping and tax not included. · Store SKU BR200Price readings (21)
| [2] | View now Paid link |
Price history
Prices we read at Current Connected · 21 readings · no change in our readings since
Chart, listings & data
Since · Listing price (USD)
A break in a line is a gap in our readings: no price is drawn for days we did not read.
Price data
| Checked | Seller | Price |
|---|---|---|
| Oct 26, 2026, 8:29 PM PDT | Current Connected Paid link | $210.57 |
| Oct 27, 2026, 1:06 AM PDT | Current Connected Paid link | $210.57 |
| Oct 28, 2026, 1:26 AM PDT | Current Connected Paid link | $210.57 |
| Oct 29, 2026, 1:16 AM PDT | Current Connected Paid link | $210.57 |
| Oct 30, 2026, 1:26 AM PDT | Current Connected Paid link | $210.57 |
| Oct 31, 2026, 1:26 AM PDT | Current Connected Paid link | $210.57 |
| Nov 1, 2026, 1:07 AM PDT | Current Connected Paid link | $210.57 |
| Nov 2, 2026, 1:36 AM PST | Current Connected Paid link | $210.57 |
| Nov 3, 2026, 1:06 AM PST | Current Connected Paid link | $210.57 |
| Nov 4, 2026, 1:06 AM PST | Current Connected Paid link | $210.57 |
| Nov 5, 2026, 1:06 AM PST | Current Connected Paid link | $210.57 |
| Nov 6, 2026, 1:06 AM PST | Current Connected Paid link | $210.57 |
| Nov 7, 2026, 1:16 AM PST | Current Connected Paid link | $210.57 |
| Nov 8, 2026, 1:16 AM PST | Current Connected Paid link | $210.57 |
| Nov 9, 2026, 1:16 AM PST | Current Connected Paid link | $210.57 |
| Nov 10, 2026, 1:06 AM PST | Current Connected Paid link | $210.57 |
| Nov 11, 2026, 1:36 AM PST | Current Connected Paid link | $210.57 |
| Nov 12, 2026, 1:26 AM PST | Current Connected Paid link | $210.57 |
| Nov 13, 2026, 1:06 AM PST | Current Connected Paid link | $210.57 |
| Nov 14, 2026, 12:35 AM PST | Current Connected Paid link | $210.57 |
| Nov 15, 2026, 12:06 AM PST | Current Connected Paid link | $210.57 |
Evidence score
This category has no Evidence score.
Certificates
UL 50manufacturer claimpresent at observation[3]
- Scope
- equipment listing
- Covered models
- BRP30L200
- Limitations
- Printed as "Certifications UL 50 UL 67" in the general specifications of Eaton's own catalog page for BRP30L200, captured on September 30, 2026. Manufacturer claim only: the page gives no file number or certificate identifier, and no UL directory record was read.
- Record detail
- Issued: Not statedValid from: Not statedExpiry: Not statedNot checked
- Source
- [3]
UL 67manufacturer claimpresent at observation[3]
- Scope
- equipment listing
- Covered models
- BRP30L200
- Limitations
- Printed as "Certifications UL 50 UL 67" in the general specifications of Eaton's own catalog page for BRP30L200, captured on September 30, 2026. Manufacturer claim only: the page gives no file number or certificate identifier, and no UL directory record was read.
- Record detail
- Issued: Not statedValid from: Not statedExpiry: Not statedNot checked
- Source
- [3]
Warranty
| Field | Value | Conditions | Source |
|---|---|---|---|
| Warranty term | 10 years | Printed as "Warranty 10 year". Where: General specifications | [1] |
Recalls / legal notices
No recalls on file. All notices · Report a notice
This register is incomplete. A missing notice does not establish that a product has no recalls.
Documents
Other documents
- BRP30L200 Eaton BR main lug loadcenter, Eaton US product pageOpen
Source details
Archived copy captured on 2026-09-29.
Location: Specifications
Retrieved Sep 29, 2026
Eaton's own US product page for catalog number BRP30L200, with its general and product specifications.
Parts and accessories
No sourced accessories or replacement parts listed yet.
Model history
Model identity
- Model
- BRP30L200
Manufacturer SKU BRP30L200 · US market
No historical observations recorded yet.
Other recorded fields
| Field | Value | Conditions | Source |
|---|---|---|---|
| Evidence breakdown | Unknown | ||
Community discussions
No discussions linked yet. Search DIY Solar Forum
Sources
- BRP30L200 Eaton BR main lug loadcenter, Eaton US product page (Eaton · manufacturer · observed Sep 29, 2026)
- Current Connected partner product feed row for SKU BR200: Eaton BRP30L200 200A 30-Space 60-Circuit Indoor Main Lug Plug-On Neutral Load Center, Tandem Breaker Panel (feed file current-connected-feed-rows-20261027.json, read Oct 26, 2026) Paid link (Current Connected · seller · observed Oct 26, 2026)
- BRP30L200 | Eaton BR main lug loadcenter | Eaton (captured September 30, 2026) (Eaton · manufacturer · observed Sep 29, 2026)
