PowMr
DC battery module

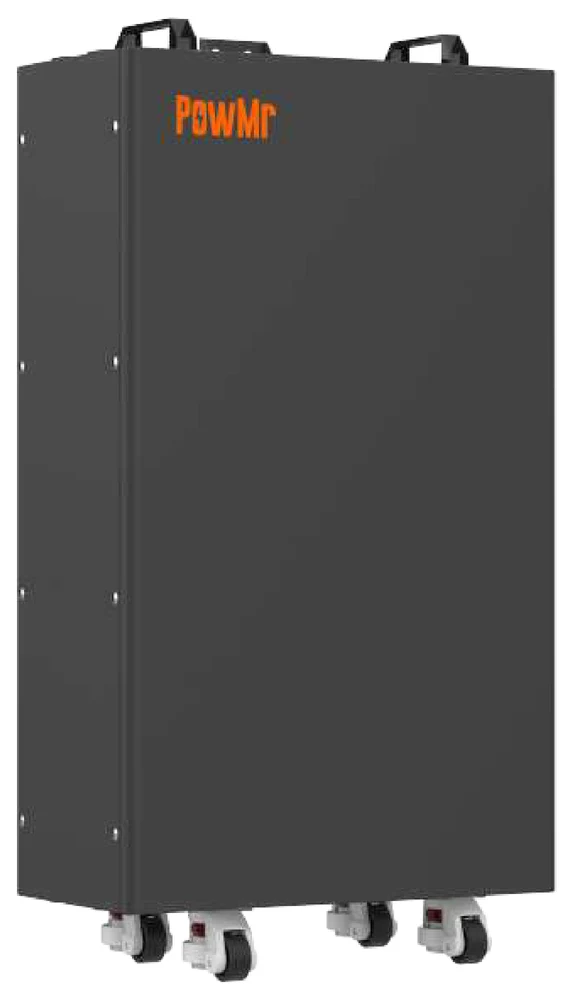

PowMr POW-LIO48300-IP65 51.2V 316Ah LiFePO4 Floor-Standing IP65 Battery

Key specs

Nominal voltage51.2 V
Capacity316 Ah
Weight131 kg / 289 lb converted
Nominal energy16.2 kWh
Maximum charge200 A

1 spec not documented yet: usable energyHelp fill in ›

All specifications

Identity

BrandPowMr · Website
ModelPOW-LIO48300-IP65
MarketUnknown
Manufacturer SKUUnknown
About brandPowMr sells off-grid and hybrid solar inverters, MPPT and PWM solar charge controllers, LiFePO4 batteries and solar panels under its own name through its store at powmr.com.
SKU detail
conditions: PowMr's documents print no separate SKU or part number, and the model has no listing on PowMr's store (storefront listing read on October 13, 2026); the model is recorded as the documents print it.
Sources: No source on record
FieldValueConditionsSource
ChemistryLiFePO4
The manual prints "integrates PowMr's high-capacity and high-safety lithium iron phosphate battery cells".
Where: Product Overview
[1]
Weight131 kg / 289 lb converted
approximately, as printed
The manual prints "Net Weight ~131kg"; the "~" marks the figure as approximate.
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Net Weight
[1]
Capacity316 Ah
The manual prints "Rated Capacity 316Ah Nominal Energy 16.1792kWh". The catalog prints 316Ah.
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Rated Capacity
[1] [2]
Dimensions880*520*250mm
The manual prints "Dimensions (LxWxH) 880*520*250mm".
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Dimensions (LxWxH)
[1]
Mounting typeFloor standing, on casters
The manual prints "Floor-standing Design with Wheels".
Where: Product Overview, Floor-standing Design with Wheels
[1]
CommunicationsRS232; RS485; CAN; Dry contact
The manual prints "Communication Interface RS232/RS485/CAN/Dry Contact".
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Communication Interface
[1]
Enclosure ratingIP65 (indoor or outdoor)
The manual prints "IP Grade IP65 Recommended Operation Environment Indoor/ outdoor".
Where: PDF page 33 (printed page 30), 10 Technical Specifications, IP Grade
[1]
Maximum charge200 A
The manual prints "Max Charging Current (Icm) 200A"; the catalog prints 200A.
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Max Charging Current (Icm)
[1] [2]
Nominal voltage51.2 V
The manual prints "System Voltage 51.2V"; PowMr's 2026 catalog prints a matching single-model table (PDF page 86).
Where: PDF page 33 (printed page 30), 10 Technical Specifications, System Voltage
[1] [2]
Max parallel units16 count
The manual prints "Max. No. of Parallel Connections 16"; the catalog prints 16.
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Max. No. of Parallel Connections
[1] [2]
Nominal energy16.2 kWh
The manual prints "Rated Capacity 316Ah Nominal Energy 16.1792kWh"; the catalog prints 16.18kWh. Manufacturer claim, not an independent test.
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Nominal Energy
[1] [2]
Maximum discharge200 A
The manual prints "Max Discharging Current 200A"; the catalog prints 200A.
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Max Discharging Current
[1] [2]
Charge temperature0 to 60 °C / 32 to 140 °F converted
The manual prints "Operating Temp Charging: 0~60°C; Discharging: -10°C~65°C".
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Operating Temp
[1]
Storage temperature-10 to 30 °C / 14 to 86 °F converted
The manual prints "Storage Temperature -10°C~30°C".
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Storage Temperature
[1]
Discharge temperature-10 to 65 °C / 14 to 149 °F converted
The manual prints "Operating Temp Charging: 0~60°C; Discharging: -10°C~65°C".
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Operating Temp
[1]
Discharge cutoff voltage43.2 V
The manual prints "Max. Discharge Cutoff Voltage 43.2V" and "Recommended Discharge Cutoff Voltage 48V".
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Max. Discharge Cutoff Voltage
[1]
Recommended charge voltage58.4 V
The manual prints "Constant Voltage charging Voltage 58.4V".
Where: PDF page 33 (printed page 30), 10 Technical Specifications, Constant Voltage charging Voltage
[1]
