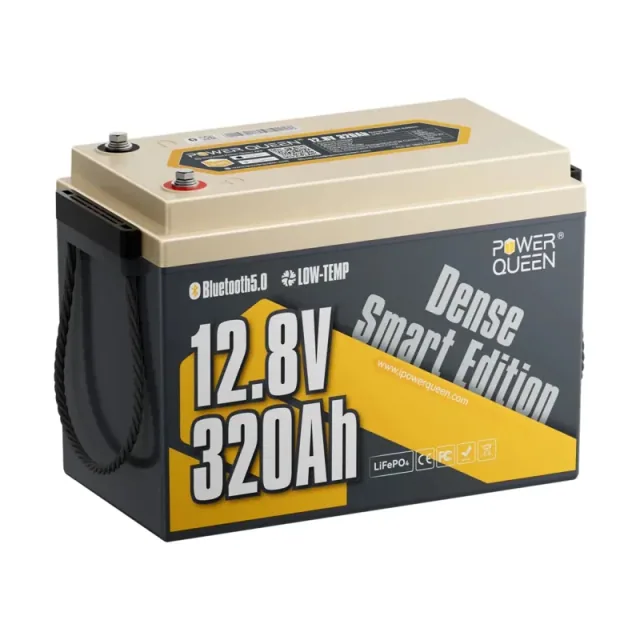

Power Queen 12V 320Ah Bluetooth LiFePO4 Battery

Brand
Power Queen
Model
P12V320-200-BT-4-W190
SKU / part number
P12V320-200-BT-4-W190 [1]
Category
Batteries

chargedreviews.com/batteries/power-queen-p12v320-200-bt-4-w190

Energy and chemistry

Nominal voltage
12.8 V [2]
Rated capacity
320 Ah [2]
Nominal energy
4.096 kWh [2]
Usable energy
?
Chemistry
LiFePO4 [3]
Cell format
?

Charge and discharge

Continuous charge current
200 A [4]
Continuous discharge current
200 A [4]
Maximum charge current
200 A [2]
Maximum discharge current
200 A [2]
Peak charge current
?
Peak discharge current
?
Continuous output power
2.56 kW [2]
Peak output
1,000 A for 1 s [3]
Maximum charge voltage
14.4 V [5]
Charge cutoff voltage
?
Discharge cutoff voltage
?

BMS and communication

BMS continuous current
200 A [3]
Communication protocols
?
Wireless monitoring
yes [4]
Inverter compatibility
?

Operating temperature

Charging temperature
0 to 50 °C / 32 to 122 °F converted [4]
Discharging temperature
-20 to 60 °C / -4 to 140 °F converted [4]
Storage temperature
-10 to 50 °C / 14 to 122 °F converted [4]
Self-heating
?

Mechanical and mounting

Dimensions
W 189 × H 255 × L 368 mm / W 7.44 × H 10 × L 14.5 in converted [3]
Weight
25.93 kg / 57.17 lb converted [3]
Terminals
M8*16mm [3]
Mounting / format
case [6]
Enclosure rating (IP)
IP65 [3]

Installation (from the manual)

Not documented in the manual

System limits

Maximum parallel units
4 count [3]
Series connection
4 count [3]
Maximum system energy
?
Page 1 of 2 · Installation values · ? means nothing is recordedAggregated, often community-reported information, not official documentation. Do not rely on it for installation, purchase or compliance decisions; always confirm values with the manufacturer’s official documentation. Charged Reviews accepts no responsibility for errors.

Charged Reviews · Quick reference

Power Queen 12V 320Ah Bluetooth LiFePO4 Battery · P12V320-200-BT-4-W190

Warranty

Warranty term5 years[3]
Warranty cycle limit?
Warranted throughput?
Capacity retention?
Cycle rating4,000 cycles[3]
Estimated throughput?
Coverage startsOriginal purchase date[7]
Coverage conditionsExcludes normal wear and aging (including gradual capacity loss), misuse, abuse, improper installation, unauthorized modification or repair, natural disasters, use outside the intended application (including starter use if not designed for it) and failure to follow the manuals; liability limited to the purchase price[7]
RemedyReplacement of a defective product after both parties confirm the fault, with a prepaid return label; a refund where the customer insists, in full within 12 months of delivery and pro-rated after 12 months[7]
Labor and shipping?
Transfer to another ownerOriginal purchaser only; if gifted or resold, claims are made through the original purchaser with proof of purchase[7]
Registration?

Certifications and listings

UL 1973?
UL 9540?
UL 9540A?
UN 38.3?
IEC 62619?
CE?

Documents and sources

  1. Power Queen store product data (products.json page 1, 2026-10-27 capture) Manufacturer product data (JSON capture) · Checked Oct 27, 2026 https://ipowerqueen.com/products.json?limit=250&page=1
  2. Power Queen P12V320-200-BT-4-W190 product identity manufacturer · Checked Sep 15, 2026 https://ipowerqueen.com/products/power-queen-12v-320ah-bluetooth-deep-cycle-lithium-lifepo4-battery
  3. Power Queen 12V 320Ah Bluetooth LiFePO4 Battery | Compact High Capacity Ready for RV, Boondocking, Week-Long Trips — Power Queen product page Manufacturer product page · Revision 2026-09-20T14:06:14+08:00 · Checked Sep 19, 2026 https://ipowerqueen.com/products/power-queen-12v-320ah-bluetooth-deep-cycle-lithium-lifepo4-battery
  4. Power Queen 12V 320Ah Bluetooth LiFePO4 Battery | Compact High Capacity Ready for RV, Boondocking, Week-Long Trips, Power Queen US product page (September 24, 2026 capture) Manufacturer product page (HTML capture) · Checked Sep 23, 2026 https://ipowerqueen.com/products/power-queen-12v-320ah-bluetooth-deep-cycle-lithium-lifepo4-battery
  5. Power Queen 12V 320Ah Smart Dense Bluetooth Low Temp user manual (PDF) Installation and operation manual (PDF) · Checked Sep 19, 2026 https://ipowerqueen.com/cdn/shop/files/PQ-12.8V320Ah-Smart_Dense-W190.pdf?v=4280805529705787410
  6. Power Queen store product feed Manufacturer store product feed · Checked Sep 18, 2026 https://ipowerqueen.com/products.json?limit=250&page=1
  7. Power Queen Warranty Policy (September 24, 2026 capture) Manufacturer warranty policy (HTML capture) · Checked Sep 23, 2026 https://ipowerqueen.com/pages/warranty-policy
