Charged Reviews · Quick reference

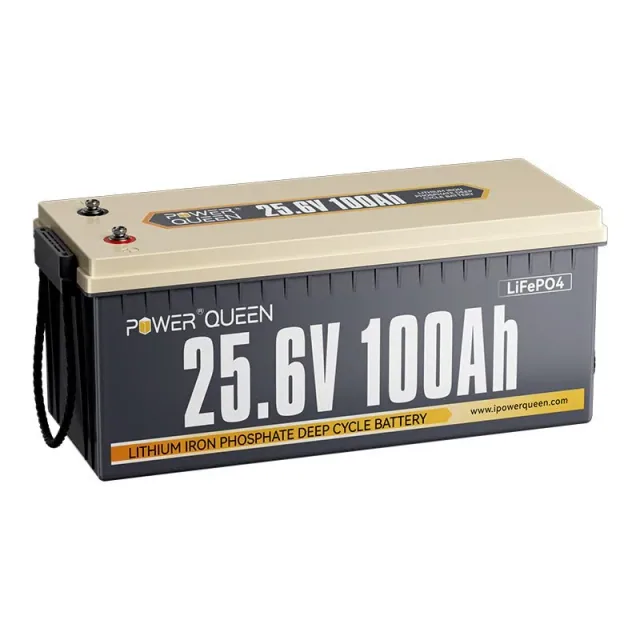

Power Queen 24V 100Ah Classic

Brand
Power Queen
Model
24V 100Ah Classic
SKU / part number
P24V100-100-Basic-8-A160 [1]
Category
Batteries

chargedreviews.com/batteries/power-queen-24v-100ah-classic-p24v100-100-basic-8-a160

Energy and chemistry

Nominal voltage
25.6 V [2] [3]
Rated capacity
100 Ah [2] [3]
Nominal energy
2.56 kWh [2] [3]
Usable energy
?
Chemistry
LiFePO4 [2] [3]
Cell format
?

Charge and discharge

Continuous charge current
100 A [2] [3]
Continuous discharge current
100 A [2] [3]
Maximum charge current
100 A [4]
Maximum discharge current
100 A [4]
Peak charge current
?
Peak discharge current
?
Continuous output power
2.56 kW Calculated [3] [2]
Peak output
?
Maximum charge voltage
28.8 V [4]
Charge cutoff voltage
?
Discharge cutoff voltage
?

BMS and communication

BMS continuous current
100 A [4]
Communication protocols
?
Wireless monitoring
no [2]
Inverter compatibility
?

Operating temperature

Charging temperature
0 to 50 °C / 32 to 122 °F converted [5]
Discharging temperature
-20 to 60 °C / -4 to 140 °F converted [5]
Storage temperature
-10 to 50 °C / 14 to 122 °F converted [5]
Self-heating
no [2]

Mechanical and mounting

Dimensions
W 207 × H 215 × L 532 mm / W 8.15 × H 8.46 × L 20.9 in converted [3]
Weight
20.68 kg / 45.59 lb converted [2]
Terminals
M8*16 mm [4]
Mounting / format
?
Enclosure rating (IP)
IP65 [2]

Installation (from the manual)

Not documented in the manual

System limits

Maximum parallel units
4 count [4]
Series connection
2 count [4]
Maximum system energy
?
Page 1 of 2 · Installation values · ? means nothing is recordedAggregated, often community-reported information, not official documentation. Do not rely on it for installation, purchase or compliance decisions; always confirm values with the manufacturer’s official documentation. Charged Reviews accepts no responsibility for errors.

Charged Reviews · Quick reference

Power Queen 24V 100Ah Classic · 24V 100Ah Classic

Warranty

Warranty term5 years[6]
Warranty cycle limit?
Warranted throughput?
Capacity retention?
Cycle rating4,000 cycles[3]
Estimated throughput?
Coverage startsOriginal purchase date[7]
Coverage conditionsThe warranty applies only to the original purchaser. If gifted or resold, warranty claims must be made through the original purchaser with proof of purchase.[8]
Remedyreplacement; requested refund after 12 months prorated under policy[6]
Labor and shipping?
Transfer to another ownerOriginal purchaser only; if gifted or resold, claims are made through the original purchaser with proof of purchase[7]
Registration?

Certifications and listings

UL 1973?
UL 9540?
UL 9540A?
UN 38.3?
IEC 62619?
CE?

Documents and sources

  1. Power Queen store product data (products.json page 1, 2026-10-27 capture) Manufacturer product data (JSON capture) · Checked Oct 27, 2026 https://ipowerqueen.com/products.json?limit=250&page=1
  2. Power Queen exact product page Product page · Checked Sep 8, 2026 https://ipowerqueen.com/products/power-queen-24v-100ah-lifepo4-battery
  3. Power_Queen-25.6V100Ah-User_Manual_compressed.pdf Manual · Checked Sep 8, 2026 https://ipowerqueen.com/cdn/shop/files/Power_Queen-25.6V100Ah-User_Manual_compressed.pdf?v=8961616681925350522
  4. Power Queen 24V 100Ah Deep Cycle Lithium Battery — Power Queen product page Manufacturer product page · Revision 2026-09-20T14:06:14+08:00 · Checked Sep 19, 2026 https://ipowerqueen.com/products/power-queen-24v-100ah-lifepo4-battery
  5. Power Queen 24V 100Ah Deep Cycle Lithium Battery, Power Queen US product page (September 24, 2026 capture) Manufacturer product page (HTML capture) · Checked Sep 23, 2026 https://ipowerqueen.com/products/power-queen-24v-100ah-lifepo4-battery
  6. Power Queen warranty policy Warranty · Checked Sep 8, 2026 https://ipowerqueen.com/pages/warranty-policy
  7. Power Queen Warranty Policy (September 24, 2026 capture) Manufacturer warranty policy (HTML capture) · Checked Sep 23, 2026 https://ipowerqueen.com/pages/warranty-policy
  8. Power Queen warranty policy (September 30, 2026 capture) Manufacturer warranty policy · Checked Sep 29, 2026 https://ipowerqueen.com/pages/warranty-policy
