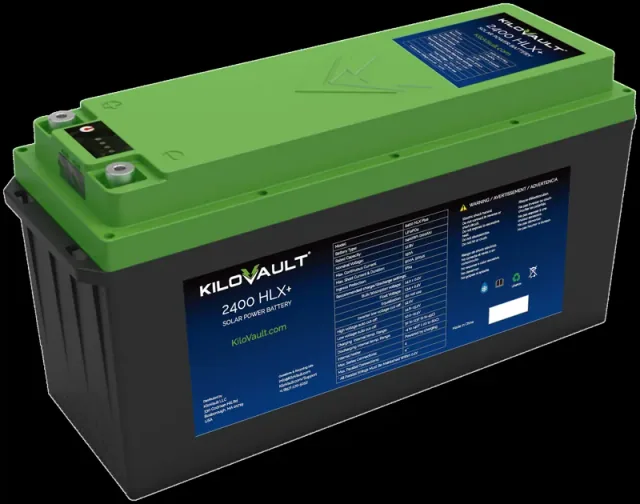

KiloVault 2400 HLX+
- Brand
- KiloVault
- Model
- 2400 HLX+
- SKU / part number
- ?
- Category
- Batteries
chargedreviews.com/batteries/kilovault-2400-hlx-plus
Energy and chemistry
Charge and discharge
- Continuous charge current
- 100 A [1]
- Continuous discharge current
- ?
- Maximum charge current
- 150 A [1]
- Maximum discharge current
- 150 A [1]
- Peak charge current
- ?
- Peak discharge current
- 500 A [1]
- Continuous output power
- ?
- Peak output
- ?
- Maximum charge voltage
- 14.1 V [1]
- Charge cutoff voltage
- 14.4 V [1]
- Discharge cutoff voltage
- 10.2 V [1]
BMS and communication
- BMS continuous current
- ?
- Communication protocols
- ?
- Wireless monitoring
- yes [1]
- Inverter compatibility
- ?
Operating temperature
Mechanical and mounting
Installation (from the manual)
Torque
- Main terminal torque
- 10 to 11 N·m [1]
- Communication terminal torque
- ?
- Ground terminal torque
- ?
Conductors
- Cable size
- A minimum of 2/0 or 4/0 AWG copper cable is recommended for battery interconnect cables. [1]
Clearances and orientation
- Installation clearances
- ?
- Mounting orientation
- HLX+ batteries must be placed flat on their bottoms. [1]
Not in the manual: Protection, Grounding, Communication
