Kepworth 24V 300Ah LiFePO4 Battery
Kepworth
DC battery module

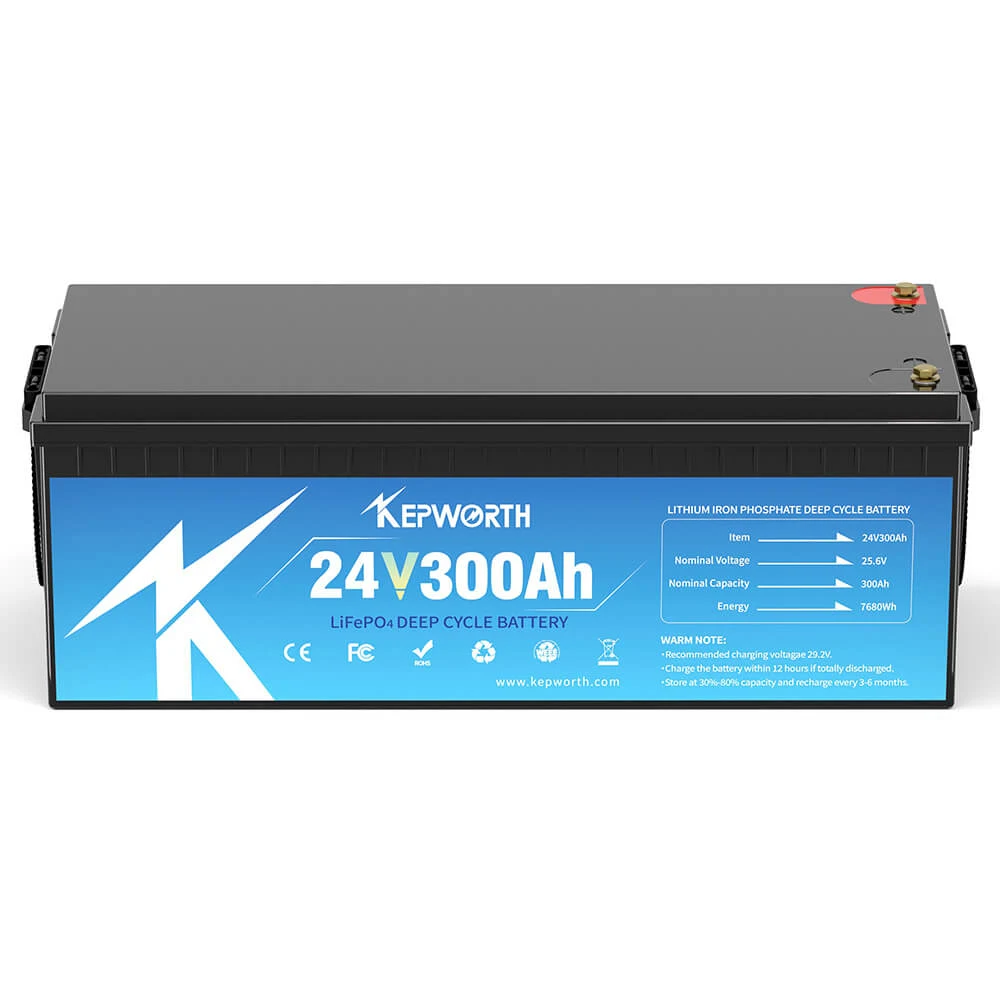

Kepworth 24V 300Ah LiFePO4 Battery

Key specs

Nominal voltage25.6 V
Capacity300 Ah
Weight55 kg / 120 lb converted
Nominal energy7.68 kWh
Converted: 7680 Wh / 1000 = 7.68 kWh
Maximum charge200 A

1 spec not documented yet: usable energyHelp fill in ›

All specifications

Identity

BrandKepworth · Website
Model24V 300Ah LiFePO4 Battery
MarketUnknown
Manufacturer SKUUnknown
About brandKepworth (Dongguan Yingda Electronics Co., Ltd, Dongguan, China) makes LiFePO4 deep-cycle, home storage, golf cart and vehicle starter batteries and shows them on www.kepworth.com, which takes quote requests rather than orders.
SKU detail
conditions: Kepworth prints no part number, model code or store SKU for this battery on its product page; the record is identified by its printed voltage and capacity.
Sources: No source on record
FieldValueConditionsSource
Bluetoothyes
Printed as "Built in Bluetooth Yes".
Where: Product page, specification table, Built in Bluetooth
[1]
ChemistryLiFePO4
Printed as "Product Name 24v 300Ah Lifepo4 Battery".
Where: Product page, specification table, Product Name
[1]
TerminalsM8Printed as "Terminal M8".
Where: Product page, specification table, Terminal
[1]
Weight55 kg / 120 lb converted
Printed as "Dimension(L*W*H) mm/Weight 640*245*220mm 55kg"; the weight is recorded.
Where: Product page, specification table, Dimension(L*W*H) mm/Weight
[1]
Capacity300 AhPrinted as "Capacity 300Ah".
Where: Product page, specification table, Capacity
[1]
DimensionsW 245 × H 220 × L 640 mm / W 9.65 × H 8.66 × L 25.2 in converted
Printed as "Dimension(L*W*H) mm/Weight 640*245*220mm 55kg"; recorded as length, width and height.
Where: Product page, specification table, Dimension(L*W*H) mm/Weight
[1]
Enclosure ratingIP65
Printed as "Water Dust Resistance IP65".
Where: Product page, specification table, Water Dust Resistance
[1]
Maximum charge200 A
Printed as "Maximum charging current 200A".
Where: Product page, specification table, Maximum charging current
[1]
Nominal voltage25.6 VPrinted as "Voltage 25.6V".
Where: Product page, specification table, Voltage
[1]
Nominal energy7.68 kWh
Converted: 7680 Wh / 1000 = 7.68 kWh
Printed as "Power 7680Wh" (the table's energy row); 7680 Wh expressed in kWh.
Where: Product page, specification table, Power
Sources
Converted: 7680 Wh / 1000 = 7.68 kWh
[1]
Storage temperature0 to 45 °C / 32 to 113 °F converted
Printed as "Storage Temperature 0℃~45℃".
Where: Product page, specification table, Storage Temperature
[1]
Discharge temperature-20 to 60 °C / -4 to 140 °F converted
Printed as "Discharge Temperature -20℃~60℃".
Where: Product page, specification table, Discharge Temperature
[1]
Recommended charge voltage29.2 V
Printed as "Charge Voltage 29.2±0.2V"; the nominal figure is recorded.
Where: Product page, specification table, Charge Voltage
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Basic specs
7.68 kWh* (7680 Wh / 1000 = 7.68 kWh)Discharge UnknownCharge 200 A max.
$ / rated kWh
Unavailable
Warranty
UnknownSee terms
Lifetime production
Not published
Size
34.5 L* (Calculated enclosure volume: W × H × D in mm ÷ 1,000,000)W: 245 × H: 220 × L: 640 mm / W: 9.65 × H: 8.66 × L: 25.2 in55 kg / 120 lb0.22 kWh/L* (Rated or usable capacity shown on this card ÷ enclosure volume)

Evidence score

Research pending0% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing for this product: Certificates evidence needed; Warranty term needed; Warranty energy disclosure evidence needed; Lifetime / capacity evidence needed; Cell model disclosure evidence needed.

24 V · Format not recorded · Rated capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Lifetime / capacityResearch pending0 / 20

No qualifying figure · 20% weight

Not published. No lifetime-production bonus.

Not documented. Undisclosed data scores 0.

[1]

Research pending, 0 points: Certificates, Warranty term, Warranty energy disclosure, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.

Unknown: no certification evidence recorded in this data.

Warranty

Unknown: no warranty facts recorded.

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.

Documents

  • Other documents

  • Kepworth product page: EU Stock Hot Seller Kepwroth 24V 300Ah LiFepo4 Battery 7680WH (October 21, 2026 capture)Official · Kepworth · Official product page · Web page
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Archived copy captured on 2026-10-21.

    Location: Specification table; product title

    Retrieved Oct 20, 2026

    Kepworth's own product page (www.kepworth.com), captured on October 21, 2026 with the paced research fetcher; the content is whatever the address served on that date. Manufacturer claims, not independent tests. Kepworth publishes no datasheet, manual or part number on its site, its pages sell nothing directly (quote requests only), and their marketing text repeats figures across models, so only the specification table and the lines cited are relied on.
