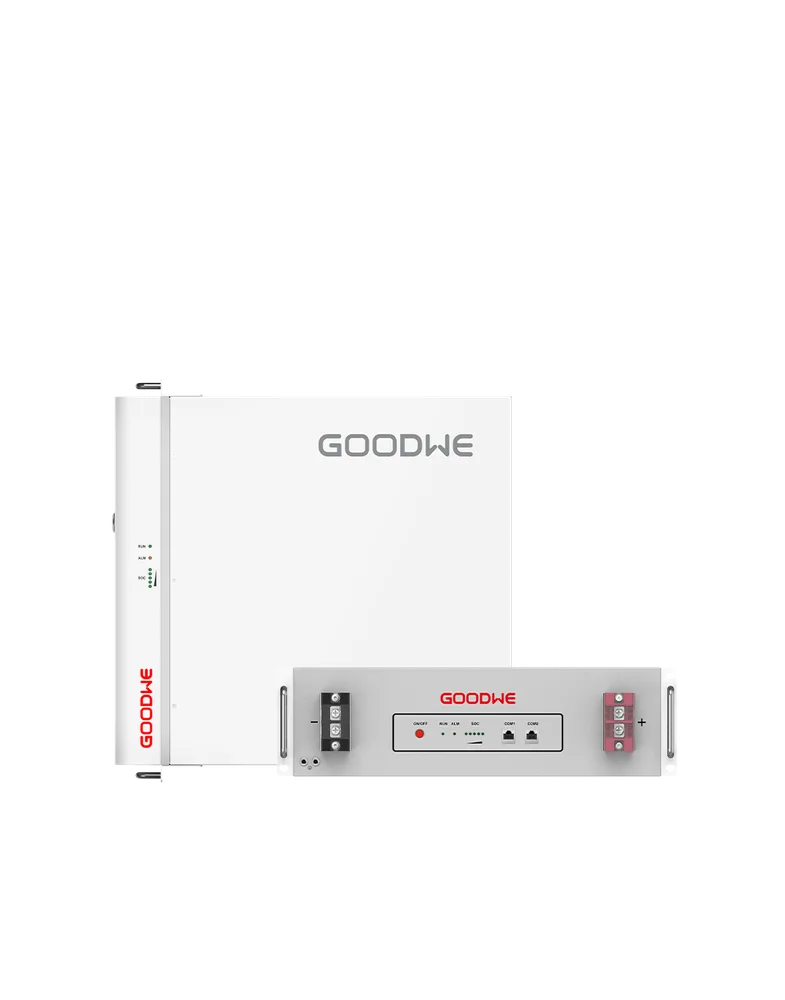

GoodWe LX A5.0-10
GoodWe
DC battery module

GoodWe LX A5.0-10

Key specs

Nominal voltage51.2 V
Capacity100 Ah
Weight40 kg / 88 lb converted
Nominal energy5 kWh
Continuous discharge60 A

All specifications

Identity

BrandGoodWe · Website
ModelLX A5.0-10
MarketUnknown
Manufacturer SKUUnknown
SKU detail
conditions: Ordering SKU not established.
Sources: No source on record
FieldValueConditionsSource
ChemistryLFP (LiFePO4)
Printed as "Cell Type LFP (LiFePO4)" in the GoodWe Lynx Home A Series datasheet (footer dated 2025-07-28, V2.1), Battery system table, one value printed for every model in the table, captured on September 25, 2026.
Where: GoodWe Lynx Home A Series datasheet, Technical Data, Battery system table, merged cell
[1]
GroundingThe PE cable should be prepared by the customer.; Recommended specifications:; Type: single-core outdoor copper cable.; Cross-sectional area: 4-6 mm2.
Printed as "Type: single-core outdoor copper cable. • Cross-sectional area: 4-6 mm2" in the GoodWe Lynx-Home A User Manual (EN, V1.0, 2023-08-25) (page 24, section 6.3, Connecting the PE cable).
Where: PDF page 24, section 6.3, Connecting the PE cable
[2]
Weight40 kg / 88 lb converted
Printed as "Weight (kg) 40" in the GoodWe Lynx Home A Series datasheet (footer dated 2025-07-28, V2.1), General data table, one value printed for every model in the table, captured on September 25, 2026.
Where: GoodWe Lynx Home A Series datasheet, Technical Data, General data table, merged cell
[1]
Cell modelIFpP52/161/120[16S]M/-10+50/90
Printed as "IFpP52/161/120[16S]M/-10+50/90 LX A5.0-10 100 Ah 5.0 kWh 60 Ad.c. 60 Ad.c." on the product nameplate reproduced in the GoodWe Lynx-Home A User Manual (V1.0, 2023-08-25), captured September 27, 2026. Recorded exactly as printed; no manufacturer name is printed alongside it.
Where: Product nameplate label figure, 3 Product Introduction
[2]
Capacity100 Ah
Printed as "IFpP52/161/120[16S]M/-10+50/90 LX A5.0-10 100 Ah 5.0 kWh 60 Ad.c. 60 Ad.c." on the product nameplate reproduced in the GoodWe Lynx-Home A User Manual (V1.0, 2023-08-25), captured September 27, 2026.
Where: Product nameplate label figure, 3 Product Introduction
[2]
DimensionsW 442 × H 133 × D 420 mm / W 17.4 × H 5.24 × D 16.5 in converted
Printed as "Dimensions (W × H × D mm) 442 × 133 × 420 (Excluding hanger); 483 × 133 × 452 (Including hanger)" in the GoodWe Lynx Home A Series datasheet (footer dated 2025-07-28, V2.1), captured on September 25, 2026. Recorded without the hanger; with the hanger the datasheet prints 483 × 133 × 452 mm.
Where: Technical Data, Dimensions row
[1]
Mounting typeCabinet or floor stacked
Printed as "Mounting Method Cabinet/Floor stacked" in the GoodWe Lynx-Home A User Manual (EN, V1.0, 2023-08-25) (page 36, section 9, Technical Parameters).
Where: PDF page 36, section 9, Technical Parameters
[2]
Battery format
Stackable
Site classificationBased onOfficial instruction manual
Details

Charged Reviews classified this product from the documents it is based on. It is our own grouping, not a manufacturer claim.

Printed as "Mounting Method Cabinet/Floor stacked" in the GoodWe Lynx-Home A User Manual (V1.0, 2023-08-25), 9 Technical Parameters, captured September 27, 2026.

Official instruction manual: GoodWe Lynx-Home A User Manual (EN, V1.0, 2023-08-25)

Location: 9 Technical Parameters, Mounting Method row

CommunicationsCAN
Printed as "Max. Operating Altitude(m) 3000 Communication CAN" in the GoodWe Lynx-Home A User Manual (EN, V1.0, 2023-08-25) (page 36, section 9, Technical Parameters).
Where: PDF page 36, section 9, Technical Parameters
[2]
Enclosure ratingIP21
Printed as "Ingress Protection Rating IP21" in the GoodWe Lynx Home A Series datasheet (footer dated 2025-07-28, V2.1), General data table, one value printed for every model in the table, captured on September 25, 2026.
Where: GoodWe Lynx Home A Series datasheet, Technical Data, General data table, merged cell
[1]
Battery wire sizeRecomended Cross- sectional Area of Conductor; Power Cable Copper-core cable; Between Battery and Battery Combiner Box & Between Battery and Battery - 25 mm²
Printed as "Between Battery and Battery Combiner Box & Between Battery and Battery - 25 mm²" in the GoodWe Lynx-Home A User Manual (EN, V1.0, 2023-08-25) (page 20, section 6.2, cable table).
Where: PDF page 20, section 6.2, cable table
[2]
Nominal voltage51.2 V
Manufacturer model overview; Nominal Voltage (V): 51.2
Where: Model LX A5.0-10 overview table; row Nominal Voltage (V)
[3]
Usable energy5 kWh
Manufacturer usable energy as printed; battery/stack identity retained, no nominal energy conversion
Where: Model LX A5.0-10 overview table; row Usable Energy (kWh)
[3]
Max parallel units15 count
Printed as "A maximum of 15 batteries can be parallel connected in one energy storage system" in the GoodWe Lynx-Home A User Manual (EN, V1.0, 2023-08-25) (page 19, section 6.2, Battery System Installation).
Where: PDF page 19, section 6.2, Battery System Installation
[2]
Nominal energy5 kWh
Printed as "Battery Module LX A5.0-10:51.2V 5.0kWh" in GoodWe Lynx-Home A User Manual (EN, V1.0, 2023-08-25), 9 Technical Parameters, Battery Module row. Revised on 1 October 2026: The user manual rates this single battery module at 51.2 V and 5.0 kWh.
Where: 9 Technical Parameters, Battery Module row
[2]
Continuous charge60 A
Printed as "Nominal Dis-/Charge Current(A)*2 60 120 n×60*3" in GoodWe Lynx-Home A User Manual (EN, V1.0, 2023-08-25), 9 Technical Parameters, Nominal Dis-/Charge Current row, LX A5.0-10 (single module) column. Revised on 1 October 2026: The user manual prints a nominal charge and discharge current of 60 A for one module.
Where: 9 Technical Parameters, Nominal Dis-/Charge Current row, LX A5.0-10 (single module) column
[2]
Charge temperature0 to 50 °C / 32 to 122 °F converted
Charging range, printed as "Operating Ambient Temperature Range (°C) Charge: 0 ~ +50; Discharge: -10 ~ +50" in the GoodWe Lynx Home A Series datasheet (footer dated 2025-07-28, V2.1), captured on September 25, 2026.
Where: Technical Data, operating temperature row
[1]
Continuous discharge60 A
Printed as "Nominal Dis-/Charge Current(A)*2 60 120 n×60*3" in GoodWe Lynx-Home A User Manual (EN, V1.0, 2023-08-25), 9 Technical Parameters, Nominal Dis-/Charge Current row, LX A5.0-10 (single module) column. Revised on 1 October 2026: The user manual prints a nominal charge and discharge current of 60 A for one module.
Where: 9 Technical Parameters, Nominal Dis-/Charge Current row, LX A5.0-10 (single module) column
[2]
Discharge temperature-10 to 50 °C / 14 to 122 °F converted
Discharging range, printed as "Operating Ambient Temperature Range (°C) Charge: 0 ~ +50; Discharge: -10 ~ +50" in the GoodWe Lynx Home A Series datasheet (footer dated 2025-07-28, V2.1), captured on September 25, 2026.
Where: Technical Data, operating temperature row
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Basic specs
5 kWhDischarge 60 ACharge 60 A
$ / rated kWh
Unavailable
Warranty
5 yearsSee terms
Lifetime production
15.5 MWhWarranty limit
Size
24.69 L* (Calculated enclosure volume: W × H × D in mm ÷ 1,000,000)W: 442 × H: 133 × D: 420 mm / W: 17.4 × H: 5.24 × D: 16.5 in40 kg / 88 lb0.2 kWh/L* (Rated or usable capacity shown on this card ÷ enclosure volume)

Evidence score

7/100Missing details20% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Lifetime / capacity evidence needed; Cell model disclosure evidence needed.

48 V · Stackable · Rated capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term5 years6.67 / 20

5 years · 20% weight

5 of 15 years, the best documented for a home storage battery (printed by the maker): Blue Ion LX battery energy storage system (125 kW / 128 kWh)

Product warranty on the electronics and enclosure, printed as "1. 5 years of product warranty: GOODWE warrants that the hardware of electronics and enclosure" in the GOODWE Limited Warranty for Lynx Series LX A 5.0-10 Battery System (Rev: 1.0 20230830), captured on September 25, 2026. The policy's Geographical Scope clause limits it to devices bought from authorized channels and installed in the international market it defines, which excludes the regions GoodWe covers with separate terms (the United States and Canada among them).

33.3 / 100 × 20 = 6.67 points.

[4]

Warranty energy disclosure15.5 MWh · not confirmed0 / 10

0 evidence points · 10% weight

No qualifying quantified warranty energy recorded. This is an evidence gap, not a performance judgment.

0 / 100 × 10 = 0 points.

[4]

Lifetime / capacity15.5 MWh · not confirmed0 / 20

No qualifying figure · 20% weight

Lifetime amount or capacity needs confirmation. No lifetime-production bonus.

A value is on file but is not counted: it carries a warning or is not confirmed.

[4] [2]

Cell model disclosureResearch pending0 / 5

0 disclosure points · 5% weight

A sourced cell manufacturer and model are needed. Grade A, chemistry and cell capacity alone do not identify a cell model.

0 / 100 × 5 = 0 points.

[2]

Research pending, 0 points: Certificates.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.

Unknown: no certification evidence recorded in this data.

Warranty

FieldValueConditionsSource
Retention70 %
Performance warranty, printed as "GOODWE warrants that, for ten (10) years, the battery system retains either seventy percent (70%) of Usable Energy" in the GOODWE Limited Warranty for Lynx Series LX A 5.0-10 Battery System (Rev: 1.0 20230830), captured on September 25, 2026: 70% of usable energy for ten years or until the minimum throughput, whichever comes first. The performance warranty term (10 years) differs from the product warranty term.
Where: Overview, item 2
[4]
Warranty term5 years
Global-market policy; not the United States or Canada
Product warranty on the electronics and enclosure, printed as "1. 5 years of product warranty: GOODWE warrants that the hardware of electronics and enclosure" in the GOODWE Limited Warranty for Lynx Series LX A 5.0-10 Battery System (Rev: 1.0 20230830), captured on September 25, 2026. The policy's Geographical Scope clause limits it to devices bought from authorized channels and installed in the international market it defines, which excludes the regions GoodWe covers with separate terms (the United States and Canada among them).
Where: Overview, item 1
[4]
Warranted throughput15.5 MWh
Minimum Through Output Energy, printed as "LX A5.0-10 5.0 15.5" in the GOODWE Limited Warranty for Lynx Series LX A 5.0-10 Battery System (Rev: 1.0 20230830), captured on September 25, 2026.
Where: Overview, Minimum Through Output Energy
[4]
