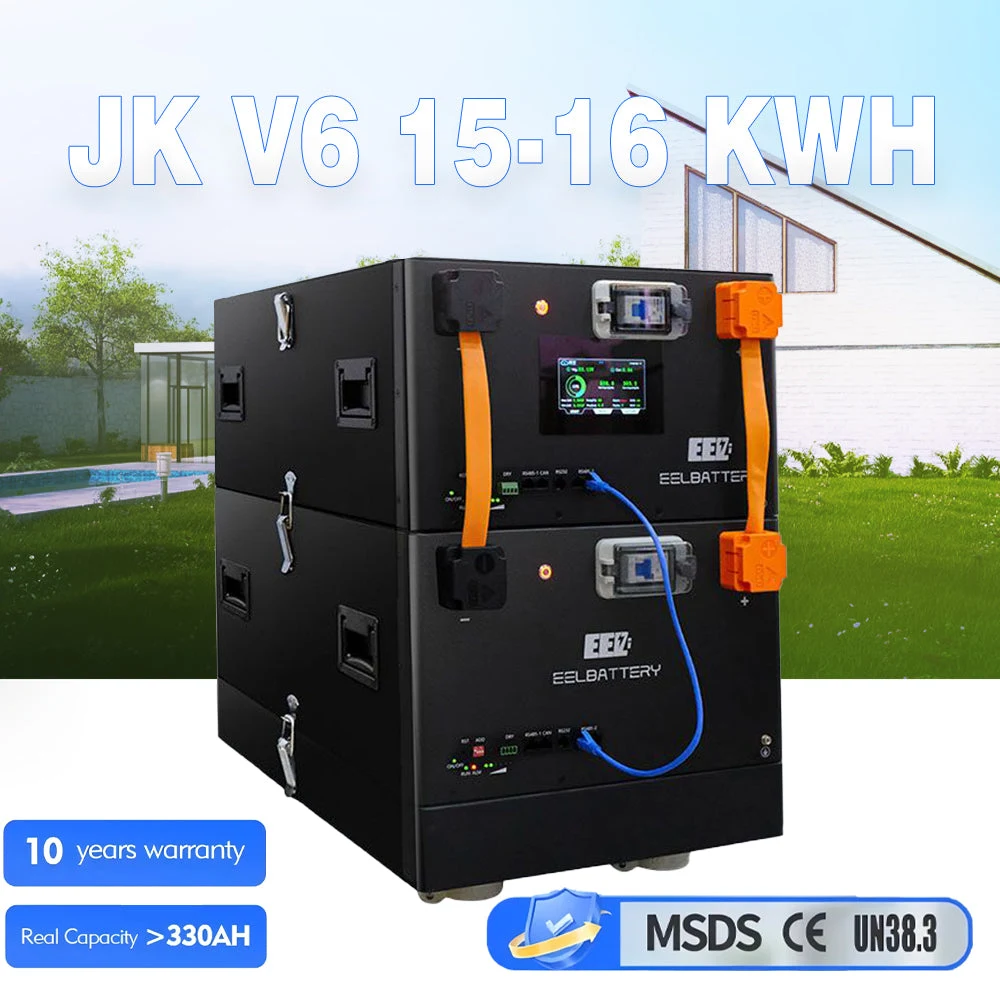

Image source: EEL 51.2V V6 server rack LiFePO4 battery, first image on the store's product page Paid linkDC battery module
EEL 51.2V V6 Server Rack LiFePO4 Battery Pack, 15kWh (JK 200A BMS)
2 specs not documented yet: usable energy, dimensionsHelp fill in ›
All specifications
Identity
SKU detail
No spec by that name.
| Field | Value | Conditions | Source |
|---|---|---|---|
| Bluetooth | yes | Printed as "Built-in BMS:16S 200A Bluetooth BMS" in the specification list. Where: Description, specification list | [1] |
| Chemistry | LiFePO4 | Printed as "Server Rack LiFePO4 JK V6 Home Solar Battery" in the product title. Where: Product title | [1] |
| Capacity | 280 Ah Check note | The store prints 280Ah and 314Ah for this battery. The specification list prints "Norminal Capacity: 280/314Ah" and the description ties the 15kWh version to CATL 280Ah cells, while the "ASSEMBLY PACK SPECIFICATION" block prints "Rated Capacity: 314Ah" without naming a version. No manual or data sheet is linked to settle the figure. Printed as "Norminal Capacity: 280/314Ah" in the specification list, with the description tying the 15kWh version to 280Ah cells ("16 CATL A-grade 280Ah LiFePO4 cells (15kWh)"). The "ASSEMBLY PACK SPECIFICATION" block prints "Rated Capacity: 314Ah" and "Maximum Load Capacity: 290Ah(15 kwh)/330Ah(16kwh)".Where: Description, specification list Sources314 Ah Printed as "Rated Capacity: 314Ah (8000 cycles, 3.2V prismatic LiFePO4 cells)" in the "ASSEMBLY PACK SPECIFICATION" block, which names no version. [1] | [1] |
| Self heating | yes | Printed as "China Stock -V6 15kwh(200A JK BMS-With heating and accessories)" in the Model option. Where: Variant option "Model" | [1] |
| BMS current | 200 A | Printed as "Built-in BMS:16S 200A Bluetooth BMS" in the specification list and "200A JK BMS" in the Model option. Where: Description, specification list | [1] |
| Battery format | Stackable DetailsCharged Reviews classified this product from the documents it is based on. It is our own grouping, not a manufacturer claim. Printed as "Scalable Design: Stackable" and "EEL 48V 16S Server Rack lfp Battery Pack For Home Solar Energy Storage". Classified as Stackable from the maker's own words for this model; the listing also says server rack, with no rack size printed (PM decision 2026-10-13). Official product page: CNEEL Battery Official Store product page: EEL 51.2v 15kwh 16Kwh Server Rack LiFePO4 JK V6 Home Solar Battery, For Household Energy Storage Paid linkLocation: CNEEL Battery Official Store product page (cneelbattery.com), October 3, 2026 capture, description | ||
| Communications | RS485; CANbus | Printed as "RS485/CANbus" on the Communication line of the specification list; the description adds "Compatible with various inverters using RS485, RS232, and CAN protocols". Where: Description, specification list | [1] |
| Cell capacity | 280 Ah | Printed as "16 CATL A-grade 280Ah LiFePO4 cells (15kWh)" in the description. Where: Description, feature list | [1] |
| Maximum charge | 150 A | Printed as "Maximum Charge Current:150A" in the specification list. Where: Description, specification list | [1] |
| Cell manufacturer | CATL | Printed as "Utilizes 16 CATL A-grade 280Ah LiFePO4 cells (15kWh) / 16 CALB A-grade 314Ah LiFePO4 cells (16kWh)" in the description, which ties the 15kWh version to CATL cells; the specification list prints "Battery Cells inside Grade A CATL/CALB HSEV Power Cells" for both versions. Where: Description, feature list | [1] |
| Nominal voltage | 51.2 V | Printed as "Normal Voltage:51.2V" in the specification list. Where: Description, specification list | [1] |
| Standard charge | 100 A | Printed as "Charge Current:100A" in the specification list. Where: Description, specification list | [1] |
| Cell configuration | 16S1P | Printed as "Series or Parallel:16S1P" in the specification list. Where: Description, specification list | [1] |
| Max parallel units | 15 count Check note | The store prints a parallel limit of 15 and of 16 batteries. The specification list prints "up to 15 batteries" on its Maximum parallel number line, while the description on the same page prints "supporting parallel expansion of up to 16 battery packs". The specification list's figure is recorded first. Printed as "up to 15 batteries" on the Maximum parallel number line of the specification list. The description prints up to 16, kept beside it.Where: Description, specification list Sources16 count Printed as "supporting parallel expansion of up to 16 battery packs" and "Supporting parallel connection of up to 16 units" in the description. [1] | [1] |
| Nominal energy | 15 kWh | Printed as "China Stock -V6 15kwh(200A JK BMS-With heating and accessories)" in the Model option; the specification list prints "Energy Storage:15/16Kwh". Where: Variant option "Model" | [1] |
| Standard discharge | 150 A | Printed as "Rated Discharge Current: 150A" in the "ASSEMBLY PACK SPECIFICATION" block, a single figure for the listing. Where: ASSEMBLY PACK SPECIFICATION | [1] |
| Charge cutoff voltage | 57.6 V Check note | The store prints two different charge voltage ranges. The specification list prints "Charge Voltage:56-57.6V" and "BMS Cut-off Voltage:57.6V", while the "ASSEMBLY PACK SPECIFICATION" block on the same page prints "Charge Voltage: 44-54.4V". No manual or data sheet is linked to settle the range. Printed as "BMS Cut-off Voltage:57.6V" in the specification list; the list also prints "Charge Voltage:56-57.6V" and "Reconnect Voltage:54.6V". The "ASSEMBLY PACK SPECIFICATION" block prints "Charge Voltage: 44-54.4V".Where: Description, specification list | [1] |
| Active balancing current | 2 A | Printed as "Built-in JK 2A Active Balancing System (Bluetooth App compatible)" in the description, which covers both the 15kWh and 16kWh versions. Where: Description, feature list | [1] |
| Discharge cutoff voltage | 42 V | Printed as "Discharge End Voltage: 42V" in the "ASSEMBLY PACK SPECIFICATION" block, a single figure for the listing. Where: ASSEMBLY PACK SPECIFICATION | [1] |
Owner reviews
Write a reviewSellers
No listed sellers in this data.
Price history
Prices we read at CNEEL Battery (51138117828910) and CNEEL Battery (51138117959982) · 2 readings from to
Chart, listings & data
Since · Listing price (USD)
A break in a line is a gap in our readings: no price is drawn for days we did not read.
Price data
| Checked | Seller | Price |
|---|---|---|
| Oct 3, 2026, 11:13 AM PDT | CNEEL Battery (51138117828910) | $1,699 |
| Oct 3, 2026, 11:13 AM PDT | CNEEL Battery (51138117959982) | $1,699 |
Quick reference sheet
- Basic specs
- 15 kWhDischarge 150 A standardCharge 100 A standard
- $ / rated kWh
- Unavailable
- Warranty
- 10 yearsSee terms
- Lifetime production
- Not published
- Size
- Unknown
Evidence score
The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.
Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.
Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Lifetime / capacity evidence needed; Cell model disclosure evidence needed.
48 V · Stackable · Rated capacity
The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.
Warranty term13.33 / 20
10 years · 20% weight
10 of 15 years, the best documented for a home storage battery (printed by the maker): Blue Ion LX battery energy storage system (125 kW / 128 kWh)
Printed as "We offer 10 years warranty for complete assembled battery packs, 5 years warranty for Grade A LiFePO4 raw cells and 3 year warranty for diy box and parts(BMS, tester, etc)" in the listing's "Warranty Service" section; this battery is sold as a complete preassembled pack, so the 10-year term applies.
66.7 / 100 × 20 = 13.33 points.
Lifetime / capacity0 / 20
No qualifying figure · 20% weight
Not published. No lifetime-production bonus.
Not documented. Undisclosed data scores 0.
Cell model disclosure0 / 5
0 disclosure points · 5% weight
CATL is named, but the cell model is not established in qualifying manufacturer sources.
0 / 100 × 5 = 0 points.
Research pending, 0 points: Certificates, Warranty energy disclosure.
Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.
Certificates
Unknown: no certification evidence recorded in this data.
Warranty
| Field | Value | Conditions | Source |
|---|---|---|---|
| Warranty term | 10 years | Printed as "We offer 10 years warranty for complete assembled battery packs, 5 years warranty for Grade A LiFePO4 raw cells and 3 year warranty for diy box and parts(BMS, tester, etc)" in the listing's "Warranty Service" section; this battery is sold as a complete preassembled pack, so the 10-year term applies. Where: Description, Warranty Service | [1] |
Recalls / legal notices
No recalls on file. All notices · Report a notice
This register is incomplete. A missing notice does not establish that a product has no recalls.
Documents
Other documents
- CNEEL Battery Official Store product page: EEL 51.2v 15kwh 16Kwh Server Rack LiFePO4 JK V6 Home Solar Battery, For Household Energy StorageOpen
Source details
Archived copy captured on 2026-10-03.
Location: Product title, variant options and description
Retrieved Oct 3, 2026
EEL's own official store (cneelbattery.com, CNEEL Battery Official Store): the product page for this listing, captured October 3, 2026. The figures are the store's own claims as printed on the page; no manual or data sheet is linked from the listing.
Parts and accessories
No sourced accessories or replacement parts listed yet.
Model history
Model identity
- Model
- EEL 51.2v 15kwh Server Rack LiFePO4 JK V6 Home Solar Battery
Manufacturer SKU unknown
No historical observations recorded yet.
Other recorded fields
| Field | Value | Conditions | Source |
|---|---|---|---|
| Evidence breakdown | method version: 0.21-personal documented pct: 20 basis: nominal missing: Certificates evidence needed Warranty energy disclosure evidence needed Lifetime / capacity evidence needed Cell model disclosure evidence needed criteria: key: certificateEvidence label: Certificates value: 0 unit: evidence points shown: Research pending shown detail: Unknown state: pending points: 0 ceiling: 45 weight: 45 share: 0 covered: no missing: yes folded: yes reason: Unknown reason text: Unknown note: No qualifying applicable evidence recorded. This is not proof that certification is absent. Applies: CEC; UL 9540; UL 1973. display note: Unknown Sources: No source on record key: years label: Warranty term value: 10 unit: years shown: 10 years shown detail: Unknown state: documented points: 13.33 ceiling: 20 weight: 20 share: 66.7 covered: yes missing: no folded: no reason: Unknown reason text: Unknown note: display note: Unknown Sources: [1] key: throughputEvidence label: Warranty energy disclosure value: 0 unit: evidence points shown: Research pending shown detail: Unknown state: pending points: 0 ceiling: 10 weight: 10 share: 0 covered: no missing: yes folded: yes reason: Unknown reason text: Unknown note: No qualifying quantified warranty energy recorded. This is an evidence gap, not a performance judgment. display note: Unknown Sources: No source on record key: lifetime label: Lifetime / capacity value: Unknown unit: MWh/kWh shown: Research pending shown detail: Unknown state: pending points: 0 ceiling: 20 weight: 20 share: Unknown covered: no missing: yes folded: no reason: undocumented reason text: Not documented. Undisclosed data scores 0. note: Not published. No lifetime-production bonus. display note: Unknown Sources: [1] key: cellDisclosure label: Cell model disclosure value: 0 unit: disclosure points shown: CATL · model not documented shown detail: Unknown state: unconfirmed points: 0 ceiling: 5 weight: 5 share: 0 covered: no missing: yes folded: no reason: Unknown reason text: Unknown note: CATL is named, but the cell model is not established in qualifying manufacturer sources. display note: Unknown Sources: [1] | ||
