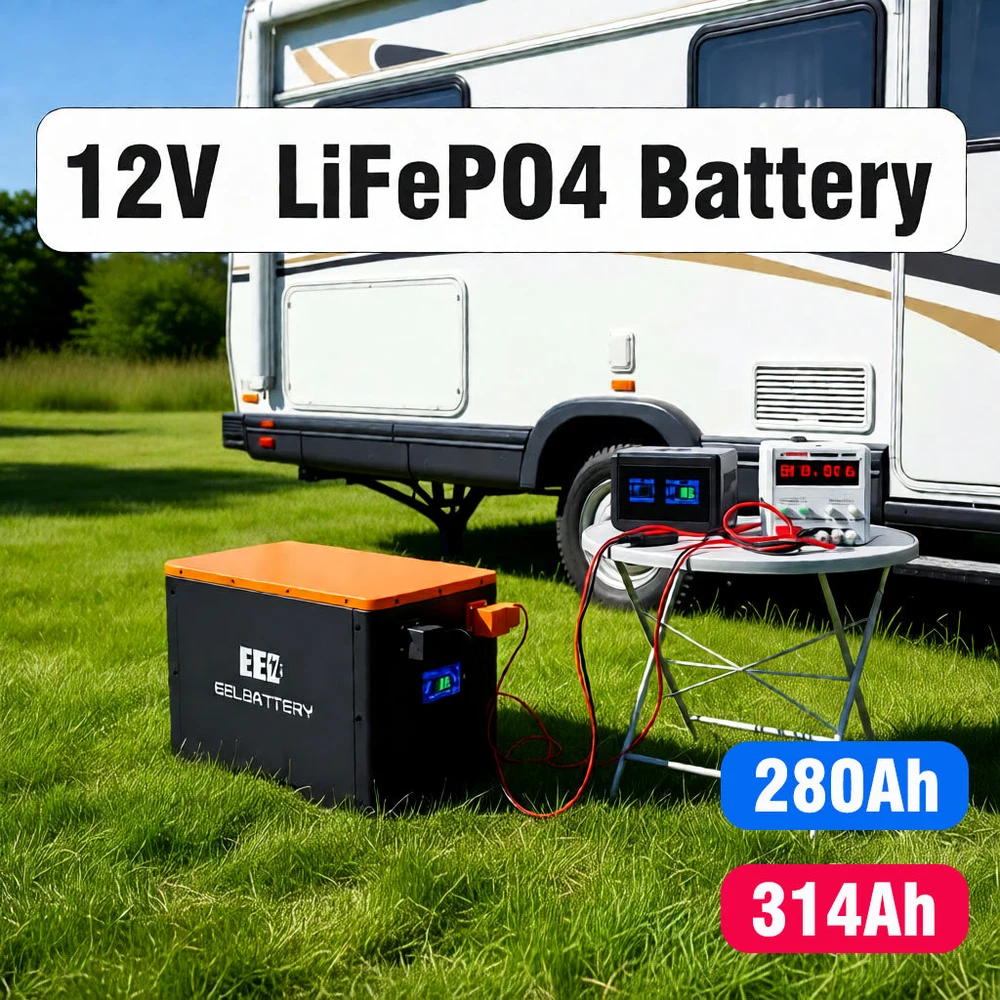

EEL 12V 314Ah 4kWh Pre-assembled LiFePO4 Battery (JK 200A BMS)
EEL
DC battery module

EEL 12V 314Ah 4kWh Pre-assembled LiFePO4 Battery (JK 200A BMS)

Key specs

Nominal voltage12.8 V
Capacity314 Ah
Weight32.28 kg / 71.17 lb converted Check note
Nominal energy4.02 kWh
Converted: 4019 Wh / 1000 Wh/kWh
Check note
Cycle life8,000 cycles
Continuous discharge200 A

1 spec not documented yet: usable energyHelp fill in ›

All specifications

Identity

BrandEEL · Website Paid link
ModelEEL 12V Deep-cycle LiFePO4 Battery, 4kWh-12V 314Ah
MarketUnknown
Manufacturer SKUUnknown
About brandEEL BATTERY says on its About Us page that it is a wholesale distributor of lithium-ion and lithium polymer batteries located in Shenzhen, China. EEL-branded DIY battery boxes, packs and cells are sold on its own store and on the CNEEL Battery Official Store (cneelbattery.com).
SKU detail
locator: Product page
conditions: The store's product page, captured October 3, 2026, prints no SKU, part number or barcode for this configuration.
Sources: No source on record
FieldValueConditionsSource
Bluetoothyes
Printed as "Built-in 200A JK BMS & Bluetooth" in the product title.
Where: Product title
[1]
ChemistryLiFePO4Printed as "Deep-cycle LiFePO4 Battery" in the product title.
Where: Product title
[1]
TerminalsM8
Printed as "Terminal Type: M8" in the "Battery Specifications" list.
Where: Description, specification list
[1]
Use casesMarine, Off-grid, RV and van
EEL prints "LiFePO4 battery measures just 382×221×252 mm (L×W×H) and weighs only 35 kg, offering unparalleled portability for sailing boats, RVs, and off-grid applications" (Product page, description (12V 314Ah)). The labels are the maker's own words: Marine from "boats"; Off-grid from "off-grid"; RV and van from "RVs".
Where: Product page, description (12V 314Ah)
[1]
Weight32.28 kg / 71.17 lb converted Check note
The store prints two different weights for this battery. The "Battery Specifications" list prints "Weight: 71.16 lbs (280Ah/314Ah)" (about 32.28 kg), while the "Tech Specifications" table and the description print 35 kg. No manual or data sheet is linked to settle the figure.
Printed as "Weight: 71.16 lbs (280Ah/314Ah)" in the "Battery Specifications" list, one figure for both the 280Ah and 314Ah packs; converted from pounds. The "Tech Specifications" table and the description print 35 kg instead, kept beside it.
Where: Description, specification list
Sources
Converted: 71.16 lb x 0.45359237 kg/lb, rounded to 0.01 kg
35 kg

Printed as "Weight 35 kg" in the "Tech Specifications" table and "weighs only 35 kg" in the description of the 12V 314Ah battery.

[1]
[1]
Cycle life8,000 cycles
Printed as "ensuring a cycle life of over 8,000 cycles (@60% Depth of Discharge)" in the description of the EEL 12V 314Ah battery, a lower bound; the description's closing summary also prints "with an exceptional cycle life of up to 8,000 cycles". No temperature or charge rate is printed for the test.
Where: Product description
[1]
Capacity314 Ah
Printed as "4kWh-12V 314Ah" in the Capacity option.
Where: Variant option "Capacity"
[1]
BMS current200 A
Printed as "Built-in 200A JK BMS & Bluetooth" in the product title, which covers every capacity the listing sells.
Where: Product title
[1]
DimensionsW 221 × H 252 × L 382 mm / W 8.7 × H 9.92 × L 15 in converted
Printed as "Battery Dimensions L 382 x W 221 x H 252 mm" in the "Tech Specifications" table; the description prints the same "382×221×252 mm (L×W×H)".
Where: Tech Specifications table
[1]
Expansion notesSeries Not Supported
Printed as "Series/Parallel Configuration Series Not Supported" in the "Tech Specifications" table; no parallel limit is printed.
Where: Tech Specifications table
[1]
Enclosure ratingIP21
Printed as "Protection Rating IP21" in the "Tech Specifications" table. This is the store's own statement; no test report is cited.
Where: Tech Specifications table
[1]
Nominal voltage12.8 V
Printed as "Nominal Voltage: 12.8V per pack" in the "Battery Specifications" list, whose capacity line ("Rated Capacity: 280Ah/314Ah") names this capacity.
Where: Description, specification list
[1]
Standard charge62.8 A
Printed as "Standard Continuous Charging Current 62.8A (0.2C)" in the "Tech Specifications" table.
Where: Tech Specifications table
[1]
Cycle life dod60 %
Printed as "(@60% Depth of Discharge)" beside the 8,000-cycle figure in the description of the EEL 12V 314Ah battery.
Where: Product description
[1]
Nominal energy4.02 kWh
Converted: 4019 Wh / 1000 Wh/kWh
Check note
The store prints 4kWh and 4019Wh for this battery. The Capacity option prints "4kWh-12V 314Ah", while the "Tech Specifications" table prints "Energy 4019Wh". The specification table's figure is recorded first and the option's rounded figure is kept beside it.
Printed as "Energy 4019Wh" in the "Tech Specifications" table, converted from watt-hours; the Capacity option prints the rounded "4kWh-12V 314Ah", kept beside it.
Where: Tech Specifications table
Sources
Converted: 4019 Wh / 1000 Wh/kWh
4 kWh

Printed as "4kWh-12V 314Ah" in the Capacity option.

[1]
[1]
Continuous charge200 A
Printed as "Maximum Continuous Charging Current: 200A" in the "Battery Specifications" list.
Where: Description, specification list
[1]
Charge temperature0 to 60 °C / 32 to 140 °F converted Check note
The store prints two different charging temperature ranges. The "Battery Specifications" list prints "Charging: 0°C to 60°C", while the "Tech Specifications" table on the same page prints "Charging Temperature 0℃ – 65℃". No manual or data sheet is linked to settle the range.
Printed as "Operating Temperature: Charging: 0°C to 60°C" in the "Battery Specifications" list. The "Tech Specifications" table prints "Charging Temperature 0℃ – 65℃", kept beside it.
Where: Description, specification list
Sources
0 to 65 °C

Printed as "Charging Temperature 0℃ – 65℃" in the "Tech Specifications" table.

[1]
[1]
Continuous output2.56 kW
Converted: 2560 W / 1000 W/kW
Printed as "Maximum Continuous Output Power 2560W" in the "Tech Specifications" table; DC battery output, converted from watts.
Where: Tech Specifications table
Sources
Converted: 2560 W / 1000 W/kW
[1]
Storage temperature0 to 60 °C / 32 to 140 °F converted
Printed as "Storage Temperature 0℃ – 60℃" in the "Tech Specifications" table.
Where: Tech Specifications table
[1]
Continuous discharge200 A
Printed as "Maximum Continuous Discharging Current: 200A" in the "Battery Specifications" list.
Where: Description, specification list
[1]
Discharge temperature-20 to 60 °C / -4 to 140 °F converted Check note
The store prints two different discharging temperature ranges. The "Battery Specifications" list prints "Discharging: -20°C to 60°C", while the "Tech Specifications" table on the same page prints "Discharging Temperature -20℃ – 70℃". No manual or data sheet is linked to settle the range.
Printed as "Discharging: -20°C to 60°C" in the "Battery Specifications" list. The "Tech Specifications" table prints "Discharging Temperature -20℃ – 70℃", kept beside it.
Where: Description, specification list
Sources
-20 to 70 °C

Printed as "Discharging Temperature -20℃ – 70℃" in the "Tech Specifications" table.

[1]
[1]
Active balancing current2 A
Printed as "Cell Balancing Yes, Active 2A Balancing" in the "Tech Specifications" table.
Where: Tech Specifications table
[1]
Recommended charge voltage14.6V ± 0.2V V
Printed as "Standard Charging Voltage 14.6V ± 0.2V" in the "Tech Specifications" table; recorded as printed, with its tolerance.
Where: Tech Specifications table
[1]

Owner reviews

No owner reviews yet
Write a review

Sellers

No listed sellers in this data.

Price history

No seller price history.

Quick reference sheet

Basic specs
4.02 kWh* (4019 Wh / 1000 Wh/kWh)Value needs confirmation: The store prints 4kWh and 4019Wh for this batteryDischarge 200 ACharge 200 A
$ / rated kWh
Unavailable
Warranty
5 yearsSee terms
Lifetime production
Not published
Size
21.27 L* (Calculated enclosure volume: W × H × D in mm ÷ 1,000,000)Value needs confirmation: The store prints two different weights for this batteryW: 221 × H: 252 × L: 382 mm / W: 8.7 × H: 9.92 × L: 15 in32.28 kg / 71.17 lb0.19 kWh/L* (Rated or usable capacity shown on this card ÷ enclosure volume)

Evidence score

9/100Missing details40% documented

The Evidence score uses the priorities you choose. It counts published documents, such as certificates and warranty terms, and it compares a documented figure with the best documented figure of the same kind. It does not count owner reviews, and it is not a verdict on product quality or on how many people have reviewed it. A low score can mean little is documented, or that a documented figure is below the best of its kind. Undisclosed data scores 0.

Missing details. This number counts only the evidence recorded so far. The source review for this product is not finished, or the maker has not disclosed enough, so the number can only go up.

Missing for this product: Certificates evidence needed; Warranty energy disclosure evidence needed; Cell model disclosure evidence needed.

12 V · Format not recorded · Rated capacity

The warranty term and the lifetime energy are each scored against the best documented value for a home storage battery: a value earns its share of that best, times the weight. A documented value always earns points; an undisclosed one earns 0.

Warranty term5 years5 / 20

5 years · 20% weight

5 of 20 years, the best documented for a small DC battery (printed by the maker): Bioenno Power 6V 3Ah LiFePO4 Battery (PVC, BLF-0603W)

Printed as "Warranty 5 Years" in the listing's "Tech Specifications" table, which describes the 12V 314Ah battery ("Energy 4019Wh", "Standard Continuous Charging Current 62.8A (0.2C)").

25 / 100 × 20 = 5 points.

[1]

Lifetime / capacity8,000 cycles4 / 20

Cycle rating disclosed · 20% weight

Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.

20 × 0.2 = 4 points.

[1]

Research pending, 0 points: Certificates, Warranty energy disclosure, Cell model disclosure.

Computed from public specifications and evidence records. Warranty duration is not service quality; certificate evidence points are not a safety rating. Compatibility and installation limits still apply.

Certificates

What this shows: what each record says and how far it reaches. It does not mean the product is approved.

Unknown: no certification evidence recorded in this data.

Warranty

FieldValueConditionsSource
Warranty term5 years
Printed as "Warranty 5 Years" in the listing's "Tech Specifications" table, which describes the 12V 314Ah battery ("Energy 4019Wh", "Standard Continuous Charging Current 62.8A (0.2C)").
Where: Tech Specifications table
[1]

Recalls / legal notices

No recalls on file. All notices · Report a notice

This register is incomplete. A missing notice does not establish that a product has no recalls.

Documents

  • Other documents

  • CNEEL Battery Official Store product page: EEL 12V 4kWh/8kWh Deep-cycle LiFePO4 Battery, Built-in 200A JK BMS & Bluetooth Paid linkOfficial · CNEEL Battery Official Store · Official product page · Web page
    Source details
    Revision
    Not stated
    Revision date
    Not stated

    Archived copy captured on 2026-10-03.

    Location: Product title, variant options and description

    Retrieved Oct 3, 2026

    EEL's own official store (cneelbattery.com, CNEEL Battery Official Store): the product page for this listing, captured October 3, 2026. The figures are the store's own claims as printed on the page; no manual or data sheet is linked from the listing.

    Open Paid link

Submit a document

Parts and accessories

No sourced accessories or replacement parts listed yet.

Model history

Model identity

Model
EEL 12V Deep-cycle LiFePO4 Battery, 4kWh-12V 314Ah

Manufacturer SKU unknown

No historical observations recorded yet.

Other recorded fields

FieldValueConditionsSource
Evidence breakdown
method version: 0.21-personal
documented pct: 40
basis: nominal
missing:
Certificates evidence needed
Warranty energy disclosure evidence needed
Cell model disclosure evidence needed
criteria:
key: certificateEvidence
label: Certificates
value: 0
unit: evidence points
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 45
weight: 45
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: No qualifying applicable evidence recorded. This is not proof that certification is absent. Applies: UL 1973; CEC not applicable to 12 V / 24 V / 36 V DC modules; UL 9540 not applicable to 12 V / 24 V / 36 V DC modules.
display note: Unknown
Sources: No source on record
key: years
label: Warranty term
value: 5
unit: years
shown: 5 years
shown detail: Unknown
state: documented
points: 5
ceiling: 20
weight: 20
share: 25
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note:
display note: Unknown
Sources: [1]
key: throughputEvidence
label: Warranty energy disclosure
value: 0
unit: evidence points
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 10
weight: 10
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: No qualifying quantified warranty energy recorded. This is an evidence gap, not a performance judgment.
display note: Unknown
Sources: No source on record
key: lifetime
label: Lifetime / capacity
value: Unknown
unit: MWh/kWh
shown: 8,000 cycles
shown detail: Unknown
state: documented
points: 4
ceiling: 20
weight: 20
share: Unknown
covered: yes
missing: no
folded: no
reason: Unknown
reason text: Unknown
note: Documented cycle rating earns 20% of this criterion. More evidence is needed to compare lifetime MWh per kWh.
display note: Unknown
Sources: [1]
key: cellDisclosure
label: Cell model disclosure
value: 0
unit: disclosure points
shown: Research pending
shown detail: Unknown
state: pending
points: 0
ceiling: 5
weight: 5
share: 0
covered: no
missing: yes
folded: yes
reason: Unknown
reason text: Unknown
note: A sourced cell manufacturer and model are needed. Grade A, chemistry and cell capacity alone do not identify a cell model.
display note: Unknown
Sources: No source on record
