Charged Reviews · Quick reference

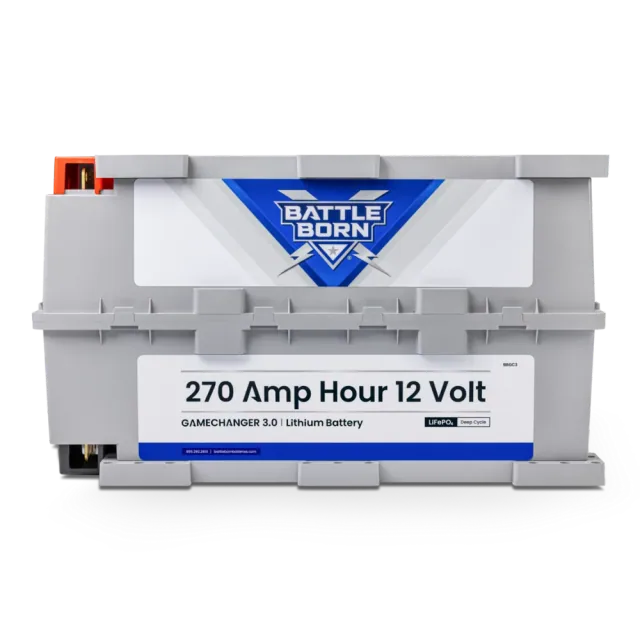

Battle Born 270Ah 12V GC3 LiFePO4 Deep Cycle Battery

Brand
Battle Born Batteries
Model
BBGC3
SKU / part number
BBGC3 [1]
Category
Batteries

chargedreviews.com/batteries/battle-born-bbgc3

Energy and chemistry

Nominal voltage
12 V [1]
Rated capacity
270 Ah [1]
Nominal energy
?
Usable energy
?
Chemistry
LiFePO4 (Lithium Iron-Phosphate) [1]
Cell format
Cylindrical [2]

Charge and discharge

Continuous discharge current
300 A [2] [1]
Maximum charge current
135 A [2] [1]
Maximum discharge current
?
Peak charge current
?
Peak discharge current
500 A [2] [1]
Continuous output power
?
Peak output
?
Charge cutoff voltage
14.7 V [2]
Discharge cutoff voltage
10 V [2] [1]

BMS and communication

BMS continuous current
300 A [2]
Communication protocols
?
Wireless monitoring
?
Inverter compatibility
?

Operating temperature

Charging temperature
-3.9 to 57.2 °C / 25 to 135 °F converted [1]
Discharging temperature
-20 to 57.2 °C / -4 to 135 °F converted [1]
Storage temperature
-23 to 60 °C / -9 to 140 °F converted [2] [1]
Self-heating
?

Mechanical and mounting

Dimensions
W 180.1 × H 334 × L 579.9 mm / W 7.09 × H 13.1 × L 22.83 in converted [1]
Weight
36.65 kg / 80.8 lb converted [1]
Terminals
.25" brass flag terminals; 3/8" hole, 3/8" or 5/16" hardware suggested, 9 to 11 ft-lb torque [1]
Mounting / format
case [1] [3]
Enclosure rating (IP)
IP65 (ANSI/IEC 60529-2020, CSA 60529:16 (R2021)) [1]

Installation (from the manual)

Torque

Main terminal torque
9 to 11 ft-lb [2]
Communication terminal torque
?
Ground terminal torque
?

Protection

Fuse or breaker
ANL fuses, placed between the batteries and the inverter/load [2]

Clearances and orientation

Installation clearances
?
Mounting orientation
Mount in Any Orientation [2]

Not in the manual: Conductors, Grounding, Communication

System limits

Maximum parallel units
?
Series connection
Wire in series up to 48 V; no limit when wiring in parallel [1]
Maximum system energy
?
Page 1 of 2 · Installation values · ? means nothing is recordedAggregated, often community-reported information, not official documentation. Do not rely on it for installation, purchase or compliance decisions; always confirm values with the manufacturer’s official documentation. Charged Reviews accepts no responsibility for errors.

Charged Reviews · Quick reference

Battle Born 270Ah 12V GC3 LiFePO4 Deep Cycle Battery · BBGC3

Warranty

Warranty term10 years[4]
Warranty cycle limit?
Warranted throughput?
Capacity retention?
Cycle rating3,000 cycles[1] [3]
Estimated throughput?
Coverage startsDate of purchase[4]
Coverage conditionsOur Limited Warranty applies only to products sold and shipped within the US and Canada. The warranty runs from the date of purchase and does not cover negligence or misuse. Improper use is subject to a $150 per hour repair charge plus parts and shipping.[4]
RemedyYears 1 to 8: repair or replacement free of charge. Last 2 years: repair or replacement free of charge, or a new-product discount of 30% off the listed price if the product is irreparable[5]
Labor and shipping?
Transfer to another ownerNot transferable to a subsequent owner[5]
Registration?

Certifications and listings

UL 1973?
UL 9540?
UL 9540A?
UN 38.3Claimed [1]
IEC 62619?
CE?
UL 1642Claimed [1]
UL 62133-2Claimed [1]

Documents and sources

  1. Battle Born BBGC3 data sheet Datasheet · Checked Sep 12, 2026 https://battlebornbatteries.com/cdn/shop/files/BBGC3_Data_Sheet.pdf
  2. Battle Born Product Manual and Installation Guide, Models: BBGC3 / BBGC3H (PMI_BBGC3, Revision: 030) Installation manual · Revision PMI_BBGC3 Revision 030 · Revised 2026-08 · Checked Oct 1, 2026 https://cdn.shopify.com/s/files/1/0981/3924/2777/files/BBGC3_Manual.pdf
  3. 270Ah 12V GC3 LiFePO4 Deep Cycle Battery: manufacturer product page Product page · Checked Sep 12, 2026 https://battlebornbatteries.com/products/270ah-12v-lifepo4-deep-cycle-gc3-battery
  4. Battle Born LiFePO4 batteries: 10-year limited warranty Warranty · Checked Sep 12, 2026 https://battlebornbatteries.com/blogs/product-resources/lifepo4-batteries-10-year-limited-warranty
  5. Battle Born Batteries 10-Year Limited Warranty (LiFePO4 batteries), dated 01.2024 Manufacturer warranty · Checked Oct 19, 2026 https://cdn.shopify.com/s/files/1/0981/3924/2777/files/Battle-Born-Batteries-10-Year-Limited-Warranty-01.2024.pdf

Unofficial reference. Information may be incorrect. This sheet aggregates the public sources listed above, much of it community-reported. It is not official manufacturer documentation, not an installation guide and not a compliance record. Community-reported values are checked against official manufacturer information before publication; we cannot guarantee accuracy or completeness. Do not rely on this sheet for installation, purchase or compliance decisions: always confirm every value with the manufacturer’s official documentation before buying, wiring or installing equipment. Charged Reviews accepts no responsibility for errors or omissions. Manufacturers can submit documents or corrections.

Page 2 of 2 · Charged Reviews LLC · chargedreviews.com/batteries/battle-born-bbgc3Some links pay us a commission. That does not affect what we record.
